FTD003 Flexible PCB Memory Touch Switch Dimmer | 照明配件及零件

Surmountor Lighting Co Ltd

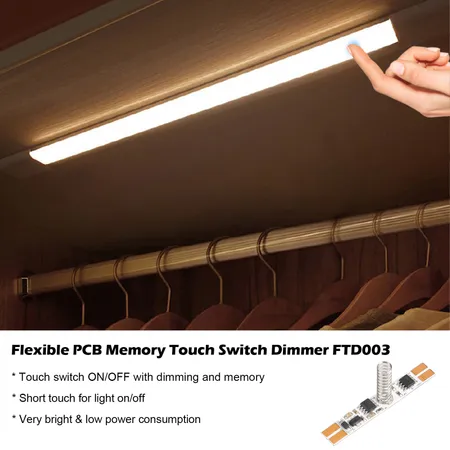

FTD003 Flexible PCB Memory Touch Switch Dimmer

生产所需时间:

7 日

运送方式:

DHL, FEDEX, UPS, SF

型号编号:

FTD003

品牌:

Surmountor

是否可订造:

可以

特性:

FTD003 Flexible PCB Memory Touch Switch Dimmer

材料:

PCB

光源:

发光二极管照明

尺寸:

50*8mm

描述

联络供应商

12V 24V Led Touch Sensor Switch Turn on/off touch dimmer switch touch switch with dimming function memory function for led light

Product Parameters:

Input/Output Voltage	12-24V	Dimension	50*8mm
Current	3A	Watt	96W (12V); 192W(24V)
Model	FTD003	Certificated	CE, RoHS
Height of Spring	20mm	Function	Touch switch ON/OFF with dimming and memory

Product Description:

The conductive spring needs to be covered by insulation material, such as glass, plastic or ceramic material (thickness< 3mm).
Cheap price, high cost-effective.

With memory external switch on/off and dimmer:

Originally "OFF" when the power is connected.
Quick touch (time is less than 550ms) can turn the light on and off. One touch to turn on; Another touch to turn off. The lamp is 90% bright when it is on.
Hold on touching (time is above 550ms) can adjust the brightness endlessly; It will reduce the brightness endlessly to the minimum in 3 seconds holding on when the light on.
Quick touch and hold on touching can be chosen anytime without any collision.
This sensor will memorize the status of the dimming in DC12V–24V.
