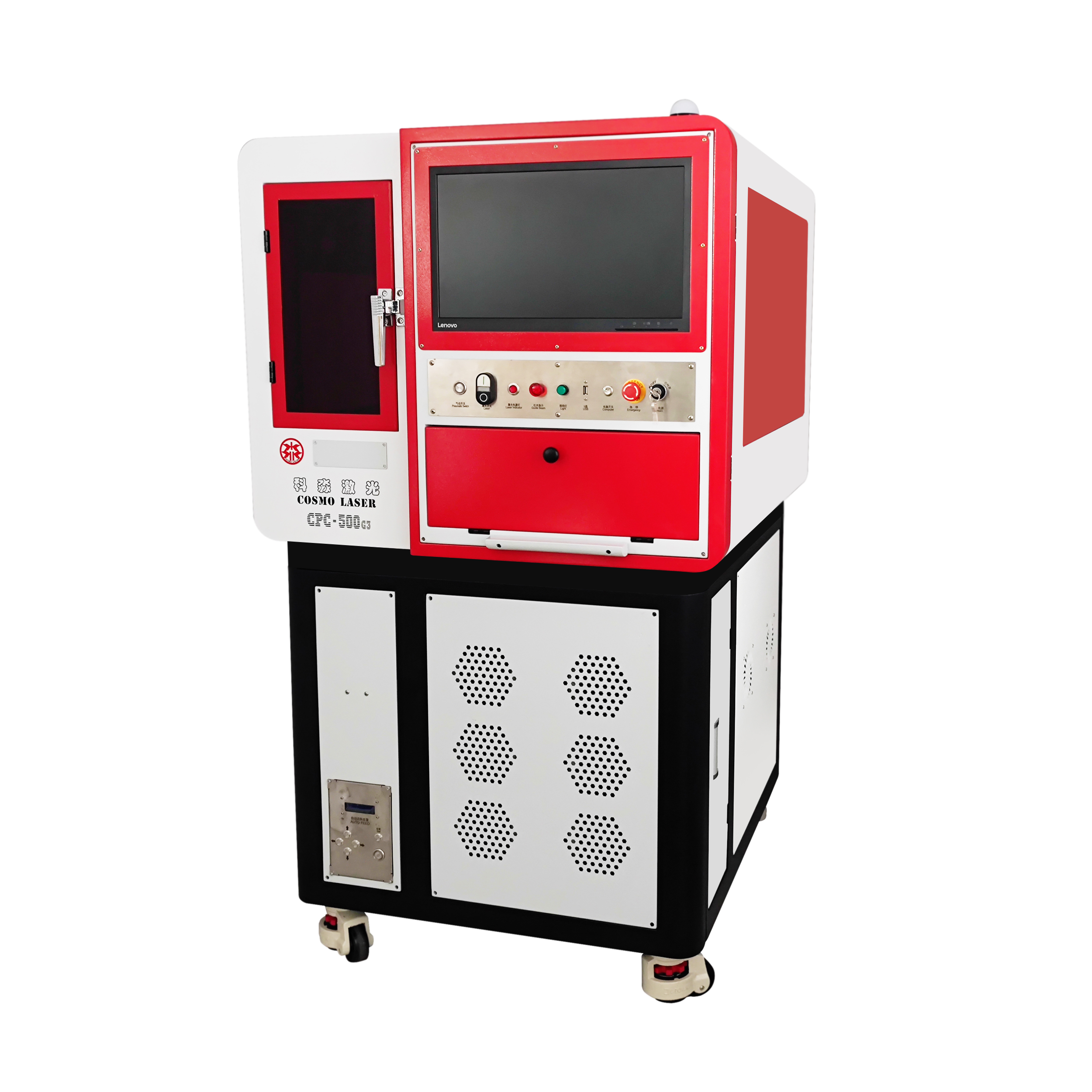

Fiber Laser Cutting Machine
美元 $50000.00 - 美元 $70000.00
生产所需时间:
14 日
运送方式:
Seaworthy Packing
Model No.:
CPC-500
Brand:
COSMO LASER
Type:
激光切割
描述
联络供应商
描述
1. High quality Imported fiber laser and cutting head
2. Stable laser output.
3. Customized software. Automatically optimized the cutting paths to minimize the cutting time.
4. Uses high quality servo motor for high accuracy cutting.
5. Auto-tracking focusing. When cutting of uneven work piece, the system is able to track
and auto focus the laser for accurate and even cutting.
6. Auto-feed cutting for roll material.
7. Rotary cutting for bangles.
8. Highly efficient material lost retrieval system design.
Industry&Materials:
Jewellery; Pure Gold,5G Solid Gold, K Gold,Platinum,Silver,925 Silver,Brass,Copper,Stainless steel etc.
Product Specifications:
| Laser Source : | Imported Fiber Laser |
| Laser Wavelength : | 1070nm |
| Cutting Area : | 300mm × 300mm |
| Cutting Thickness : | Maximum 5.0mm (Depending on material) |
| Cutting Line Width : | 0.04 ~0.12mm(Depending on material) |
| Cutting Speed : | 300mm ~ 2000mm/min |
| Cutting Accuracy : | 0.02mm |
| Cooling Mode : | Air Cooled |
| Cutting Air Pressure Requirement : | 6 ~ 16 bar (Depending on material) |
| Maximum Power Consumption : | 3kW / 5kW |
| Power Supply : | 220V / 1P |
| Machine Dimension : | 980mm × 960mm × 1730mm |
| Weight : | 320Kg (Net) / 400Kg (Gross) |
*Our products undergo continuous improvements. This information is based on current
knowledge. We reserve the right to make changes without prior notice.
Why Cosmo?
1. Specialized on laser equipment for jewellery field since years 2004
2. Know-how
3. Strong service team
4. Quality guarantee
