Fischer Panda Generator
生产所需时间:
14 日
产品型号:
5000i PMS
品牌名称:
Fischer Panda
尺寸:
650x400x406mm
付款方式:
Payment Upon order
最低订购数量:
1
用途:
消闲, 娱乐
描述
联络供应商
描述

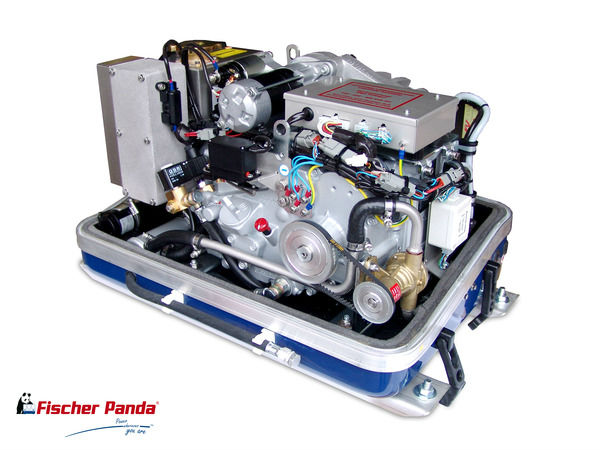

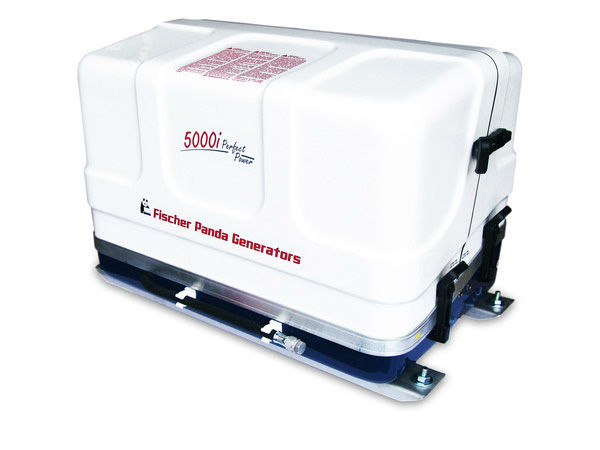

- Model.: Panda 5000i PMS
- Generator Type Panda i-Series (50 Hz)
- Generator Family 5000i
- Generator Version.: PMSArticle number.: 0000176 ( <2017 : 03.01.01.014P)
- Additional FeaturesArea of Application.: Marine Generator (M)
- Frequency [Hz] 50
- Generator manufacturer Fischer Panda GmbH
- Isolation class of windings H
- Nominal Speed [rpm] 2200-2800 rpm
- Voltage Regulation iControl
- Voltage Tolerance ±3%
- Power rating factor Cos Pi 0.80
- Single Phase Version with Inverter Technology
- Engine Speed [rpm] 2200 - 2800
- Nominal Voltage in Volt 230
- Nominal Performance in kW)1) 0-4.00
- Nominal Performance in kVA1) 0-5.0
- Continuous Performance in kW1) 0-3.6
- Continuous Performance in kVA1) 0-4.5
- Number of Phases 1
- Max. Rated Inrush Current in Ampere 75A
- Frequency [Hz] 50
- Engine Data
- Engine Manufacturer Kubota (KU)
- Engine Type EA300
- No. Cylinders 1
- Displacement [cm3] 309
- Starter System 12V (24V Optional)
