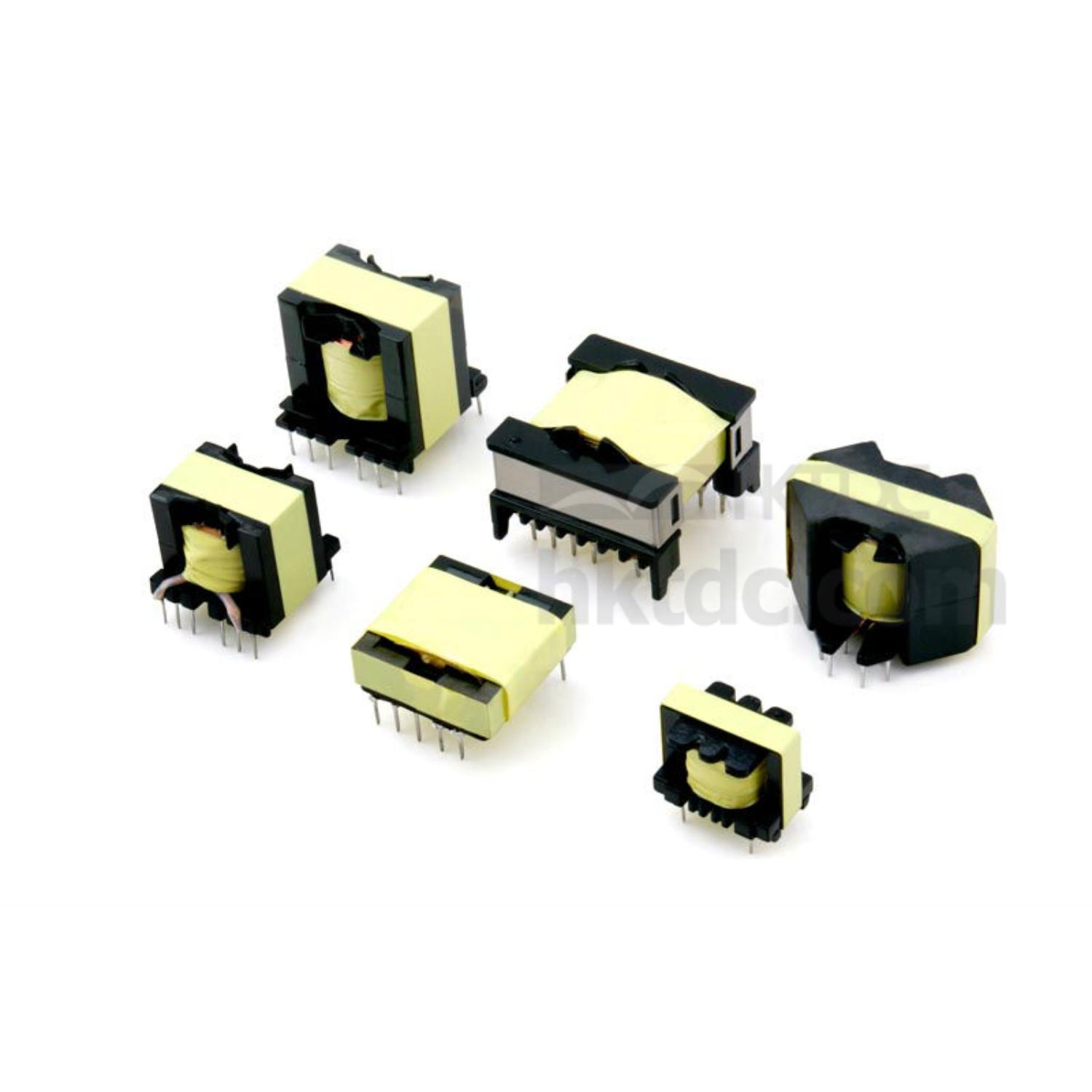

Flyback PQ Power Transformer
产品型号:
PQ3220
品牌名称:
Zhong Kai
颜色:
Yellow
港口:
HK, Shenzhen
付款方式:
T-T
最低订购数量:
1,000 piece(s)
是否可定制:
是
是否有包装:
有
描述
联络供应商
描述
PQ Series Transformer:
PQ5050,PQ3230,PQ3220,PQ2620,PQ2020
Windings S F WIRE TURNS
N1 1 4 ∮0.1*30P/2UEW 34TS
N2 7 9 ∮0.45*3P E&B 9TS
N3 6 5 ∮0.25*1P/2UEW-B 10TS
L(1-4）：290uH±10%；LK(1-4）short others:9uH MAX
HI-POT:P-S AC2.5KV/3mA/60S;P-P AC2.5KV/3mA/60S;P.S-C AC2.5KV/3mA/60S
Type:
PQ5050,PQ3230,PQ3220,PQ2620,PQ2020
Windings S F WIRE TURNS
N1 1 4 ∮0.1*30P/2UEW 34TS
N2 7 9 ∮0.45*3P E&B 9TS
N3 6 5 ∮0.25*1P/2UEW-B 10TS
L(1-4）：290uH±10%；LK(1-4）short others:9uH MAX
HI-POT:P-S AC2.5KV/3mA/60S;P-P AC2.5KV/3mA/60S;P.S-C AC2.5KV/3mA/60S
Type:
- small electrical transformers
- Bobbin type:Vertical
- Storage humidity:30 to 95%
- Operation frequency:20kHz-500KHz
- Operation temperature:-40℃ to +180℃
- Storage temperature:-25℃ to +85℃
- L (MAX):34H (MAX):31.5W (MAX):35.5
