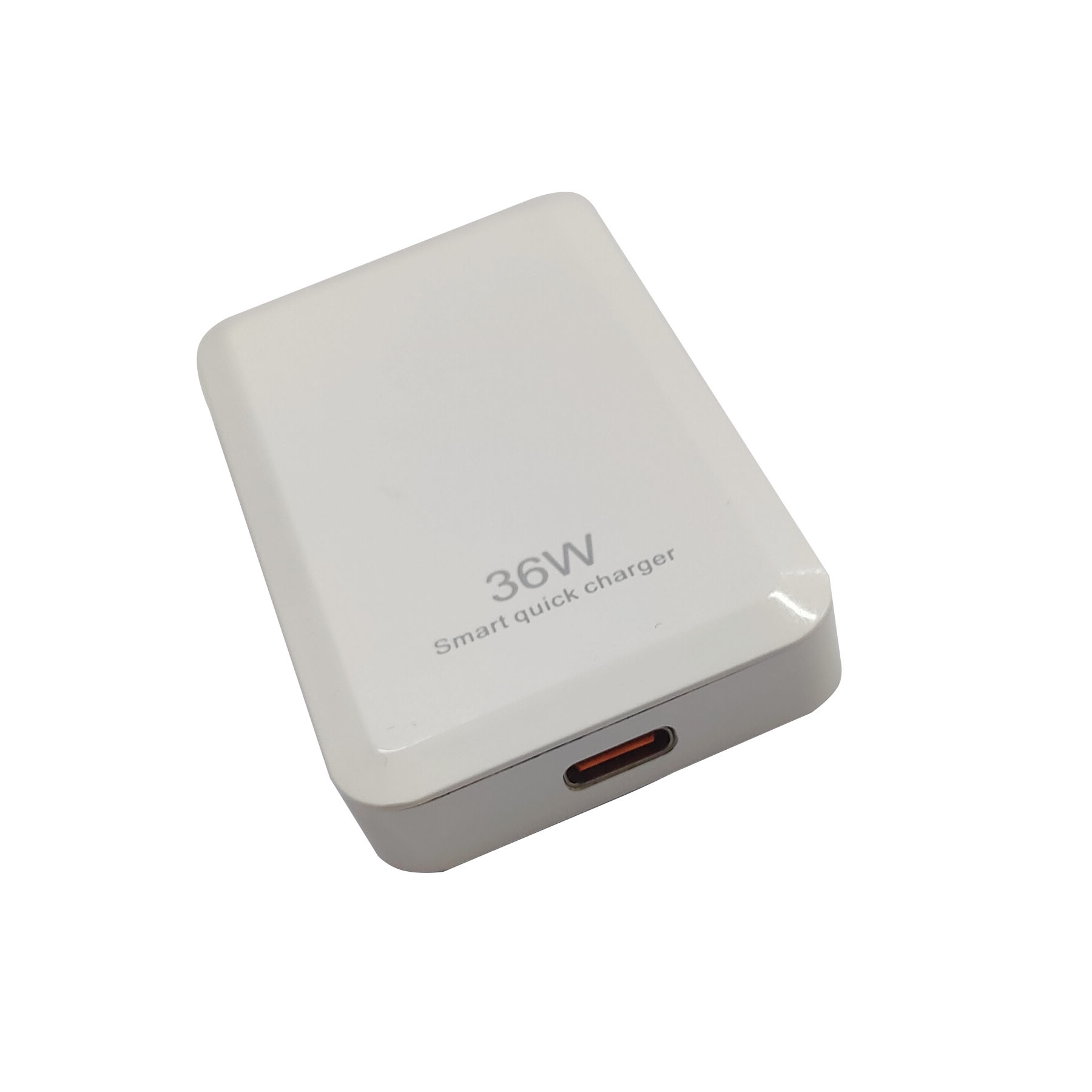

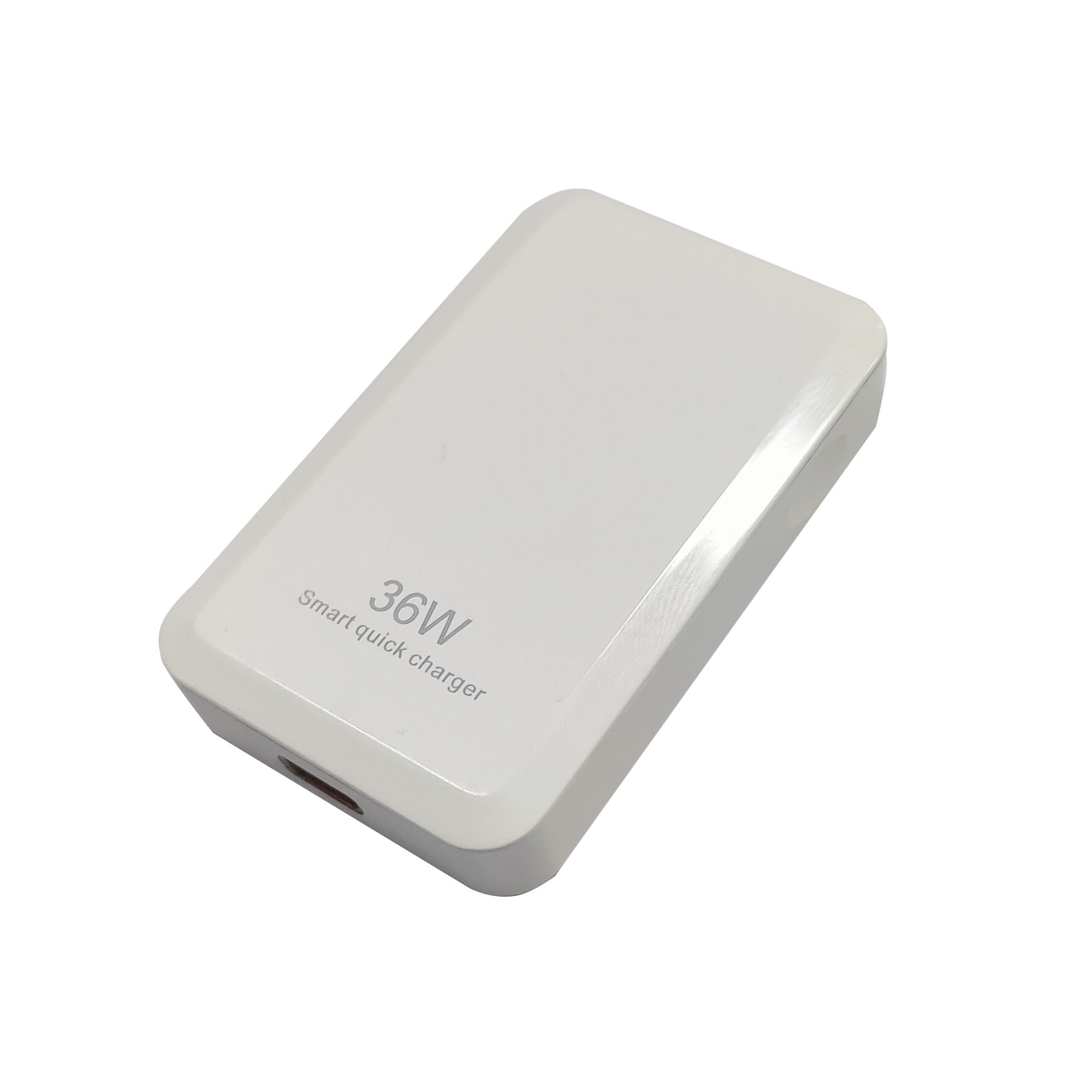

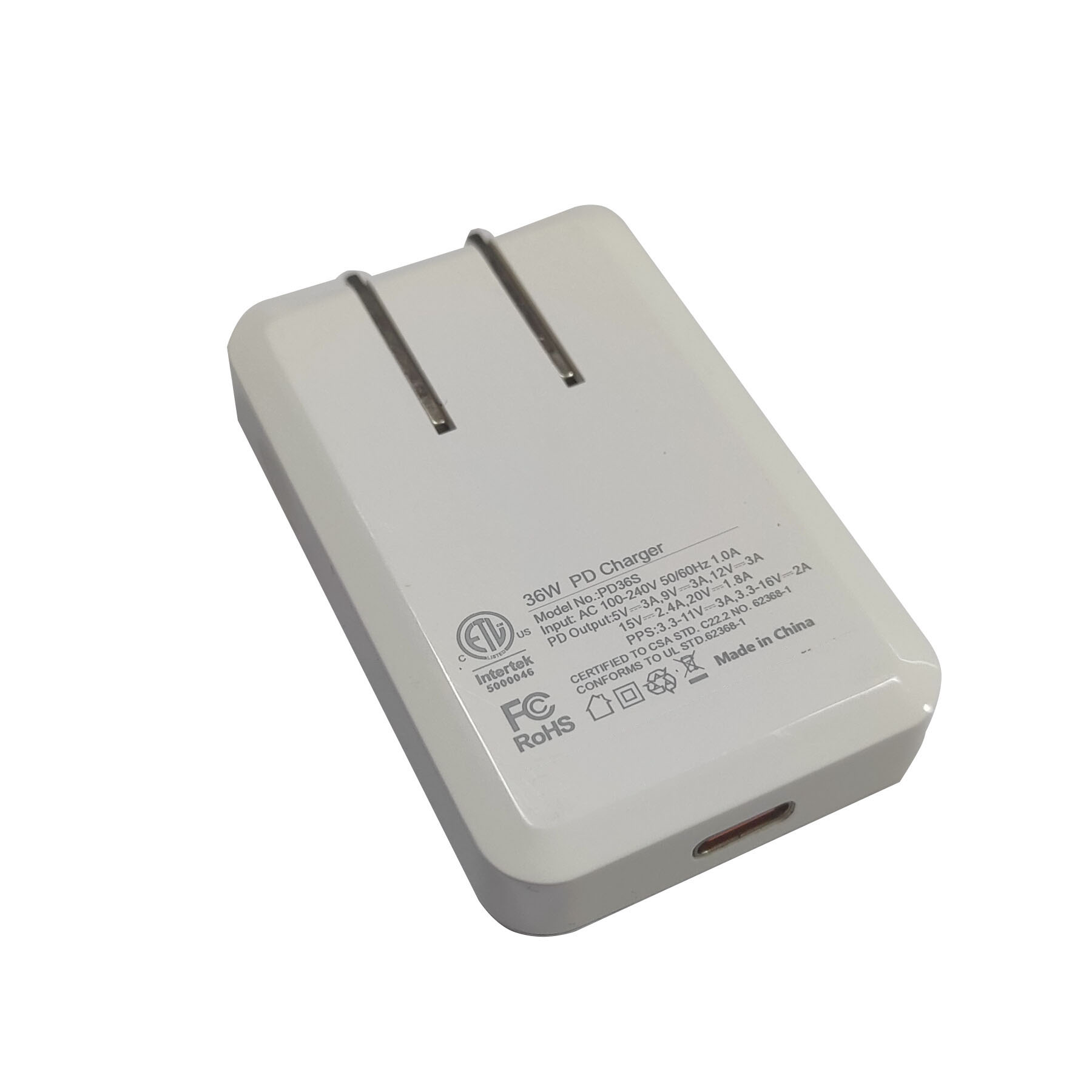

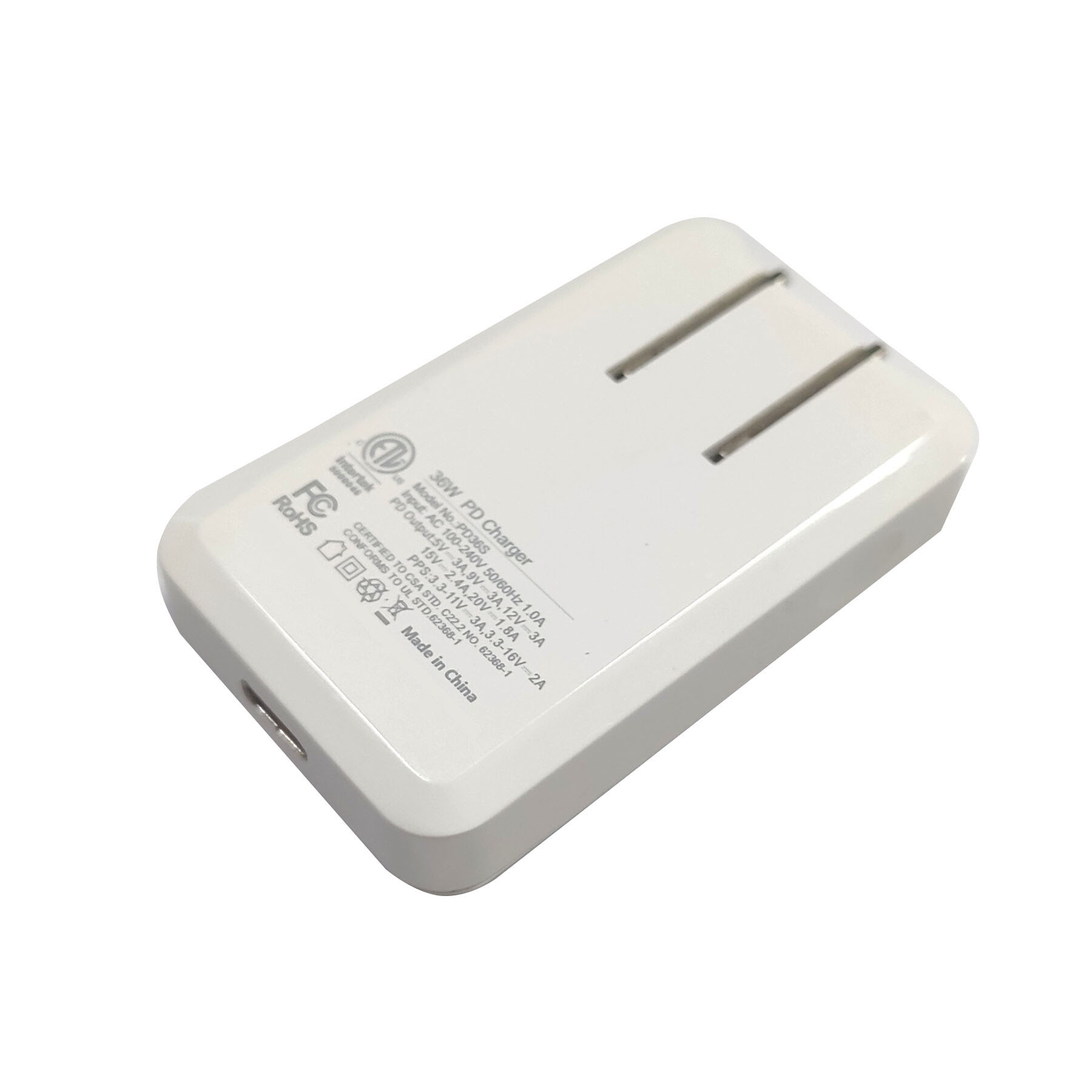

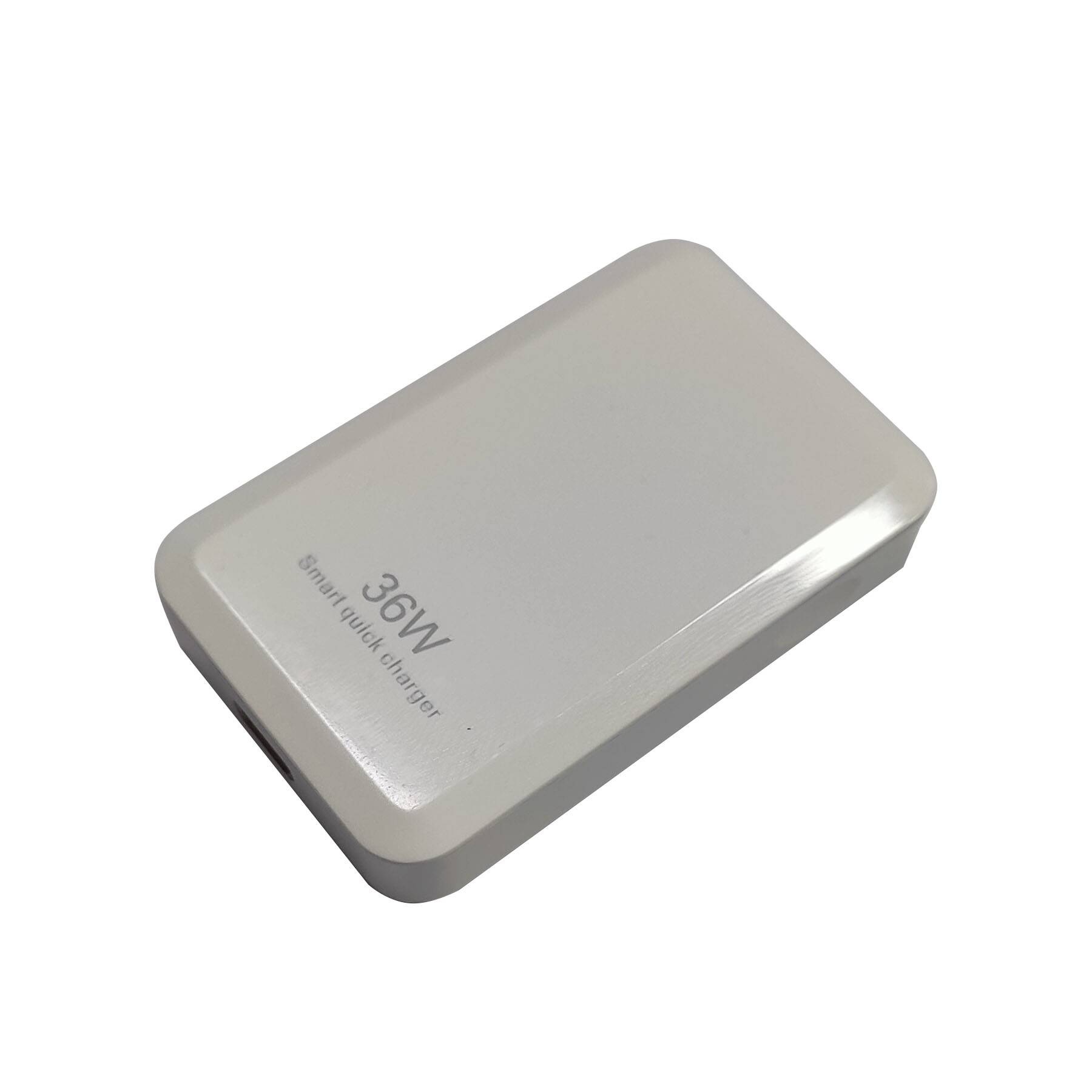

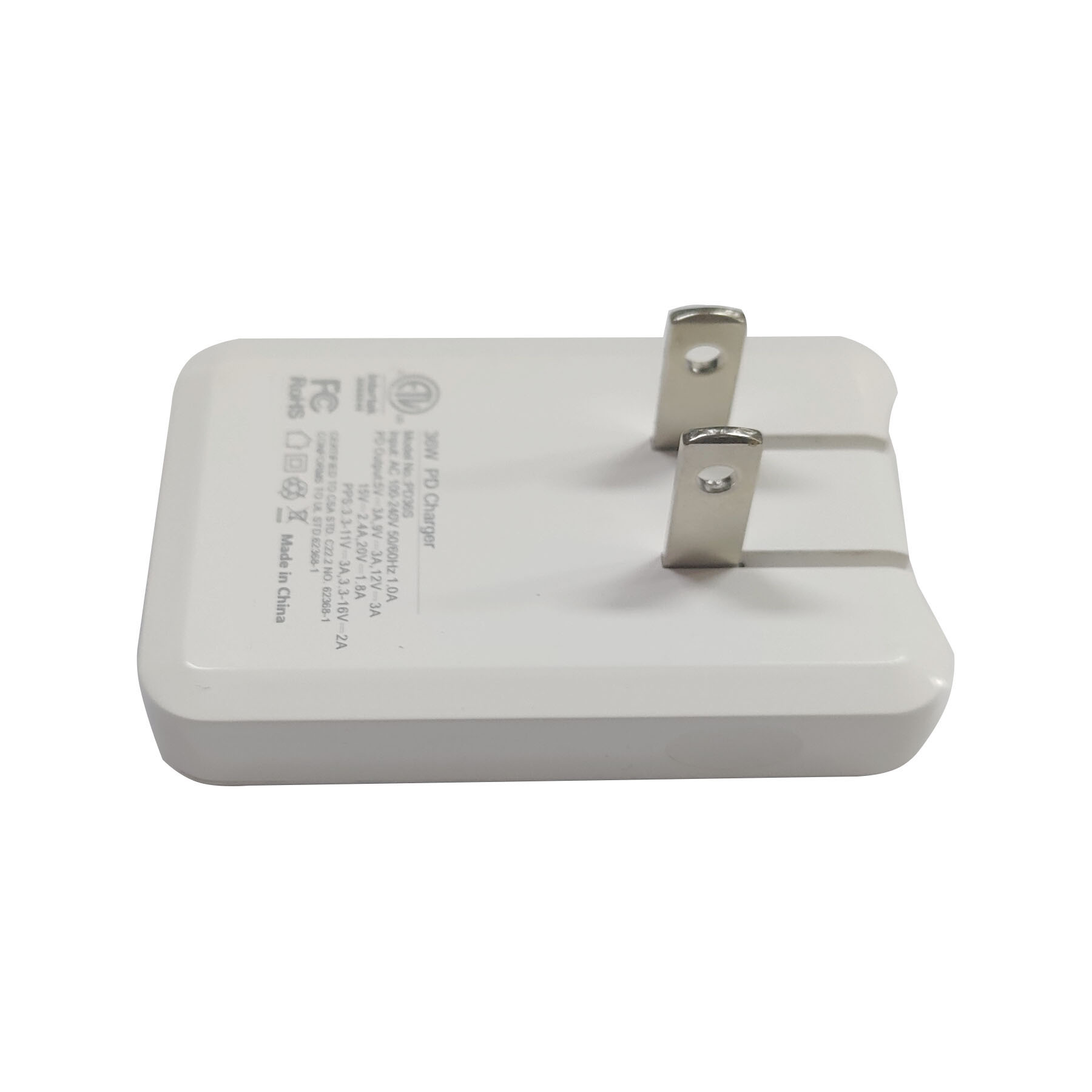

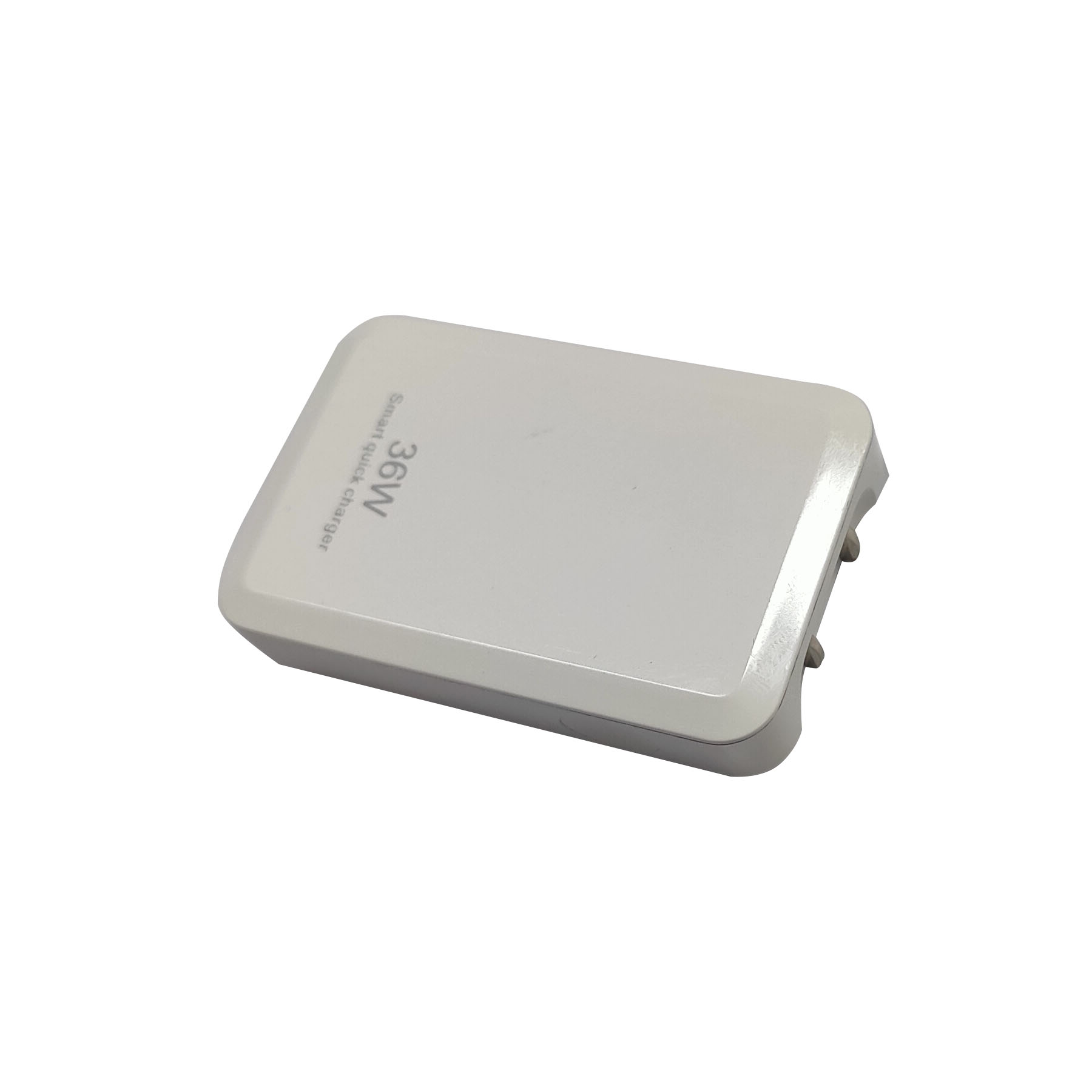

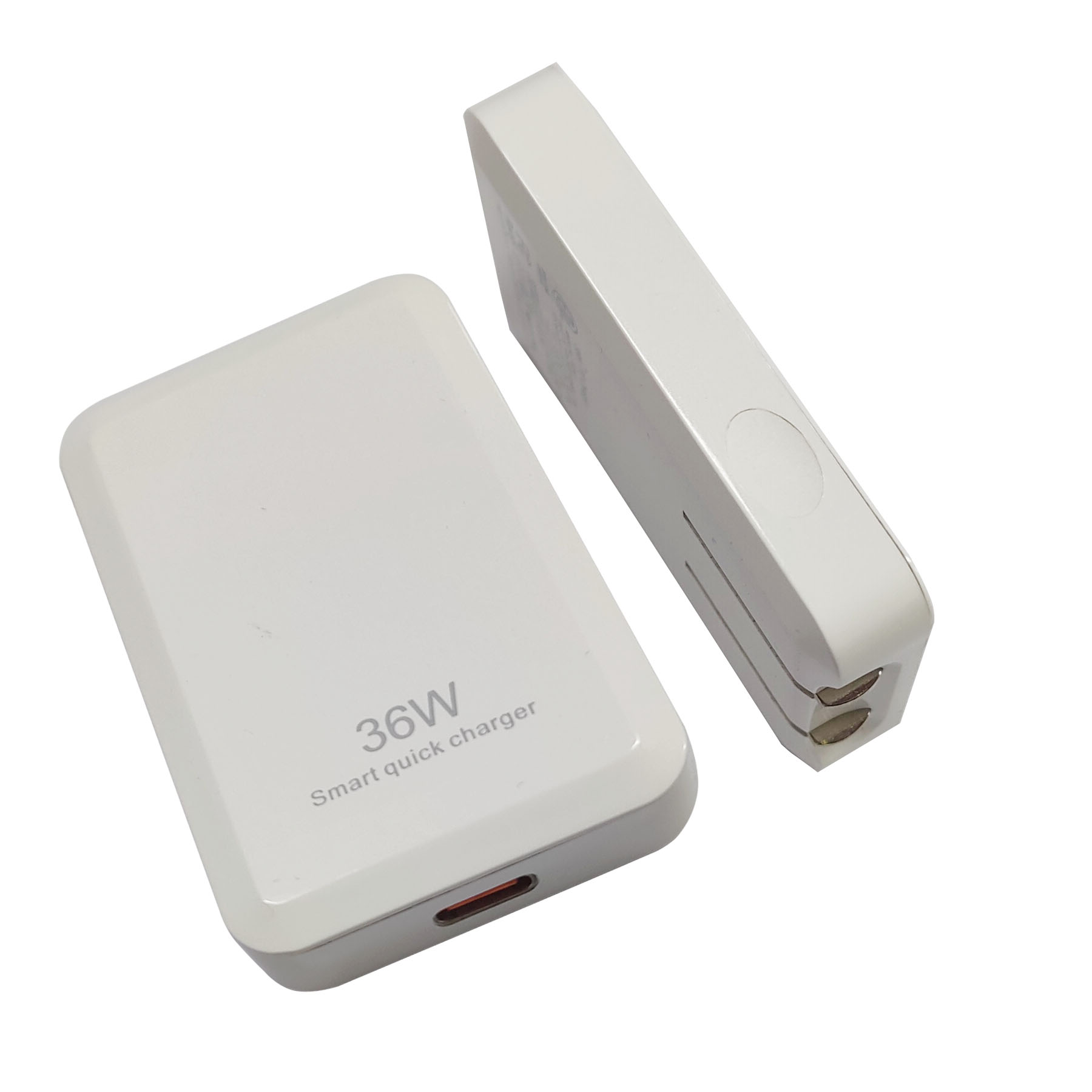

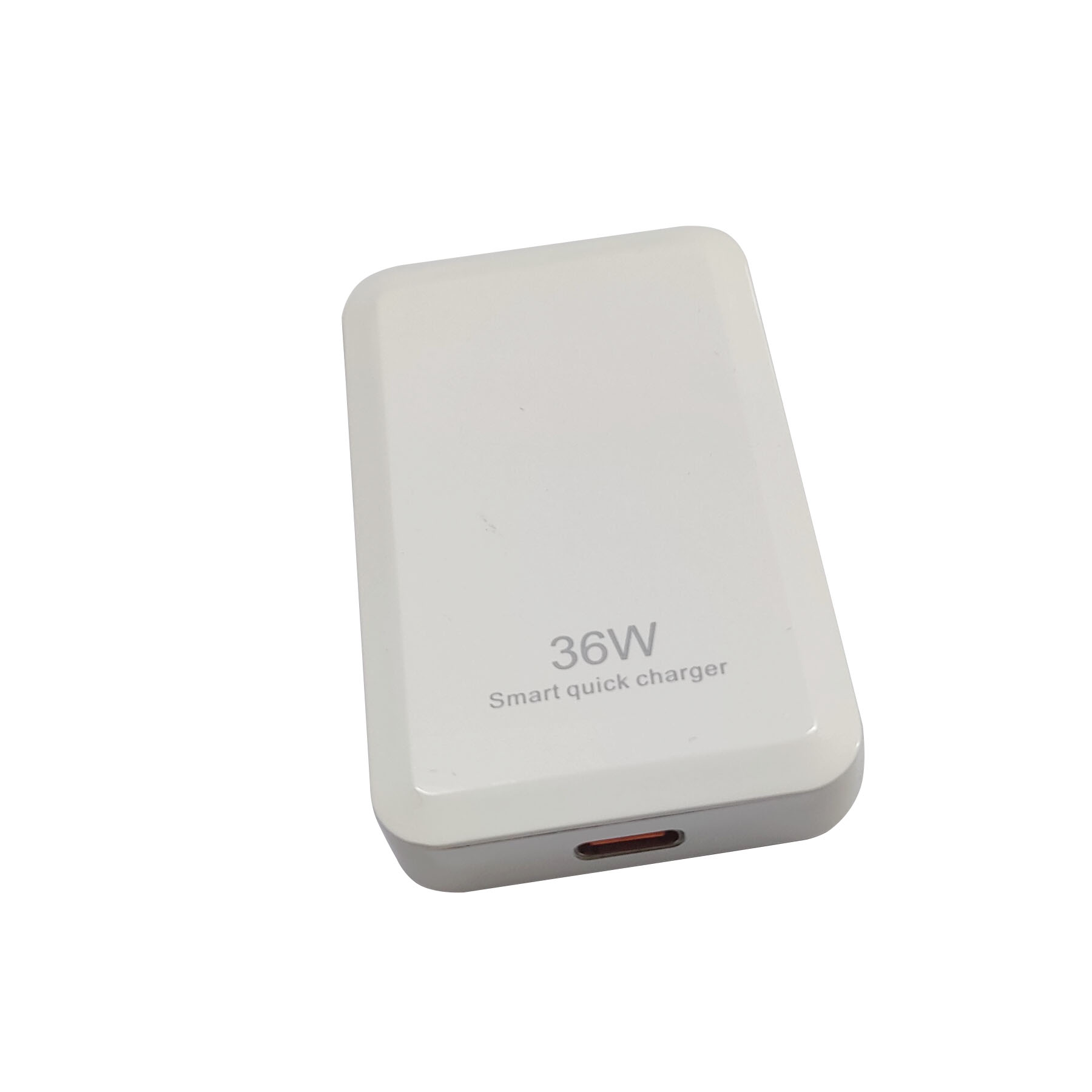

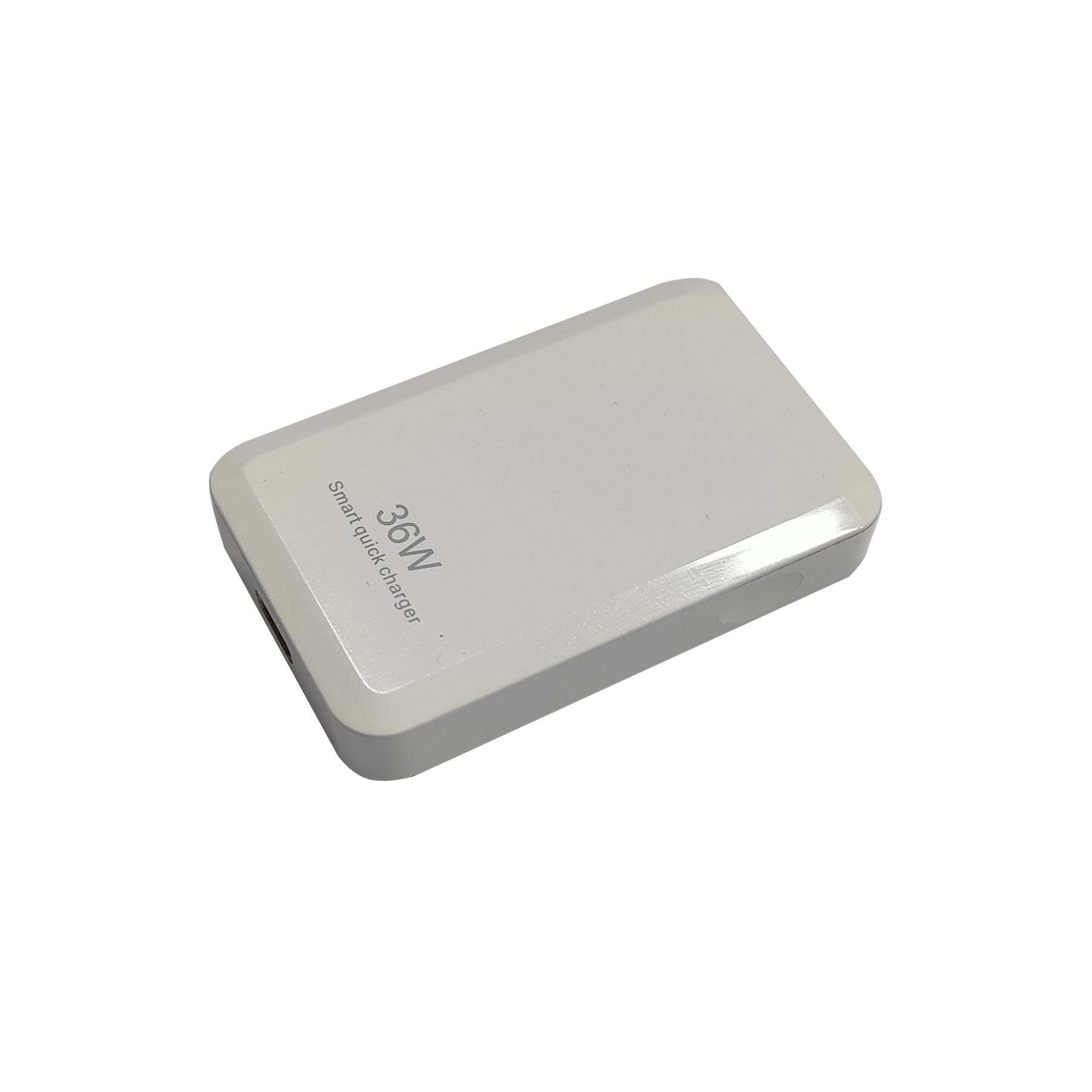

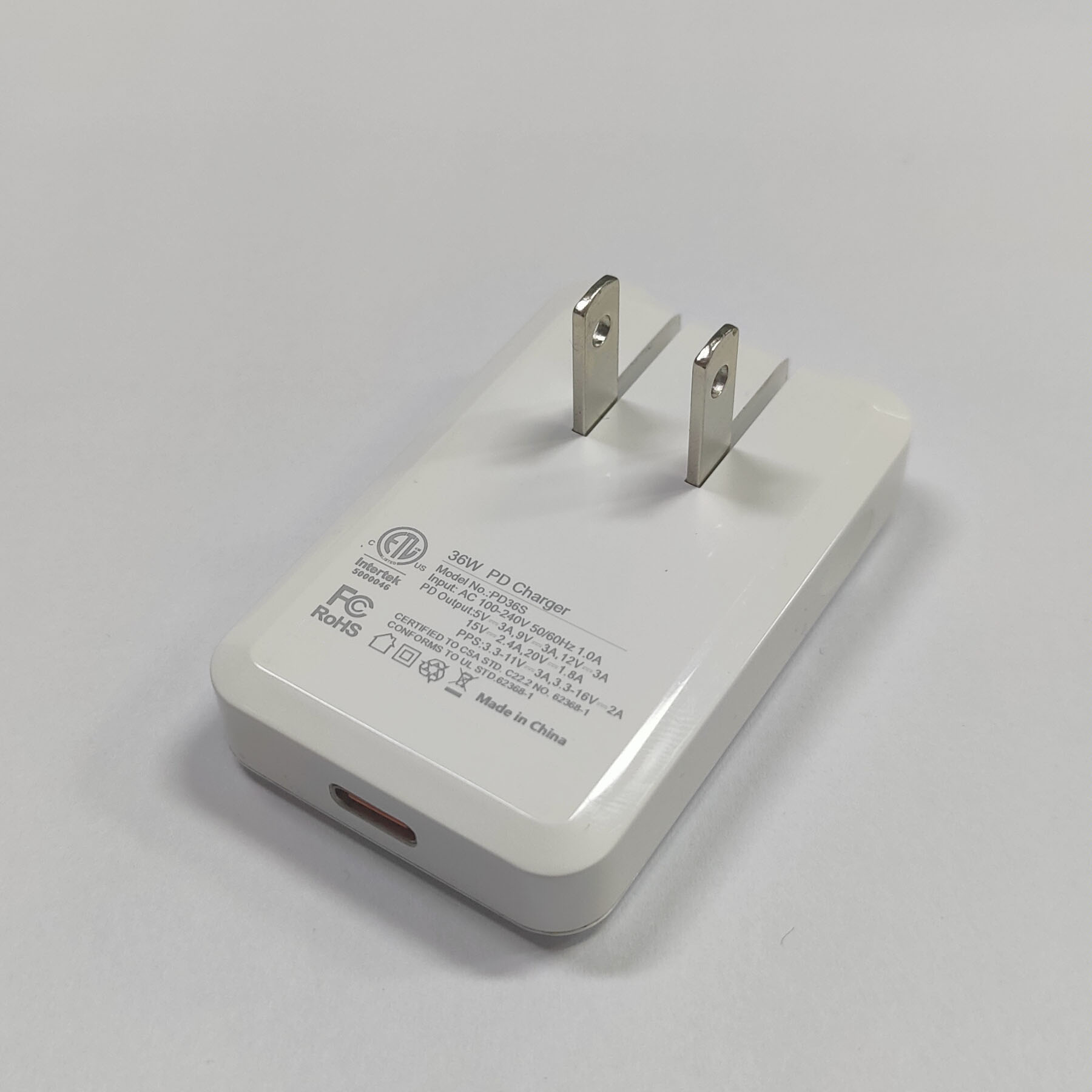

GaN 36W Smart Quick Charger Power Adapter with Type-C PD36S,

• Suitable for all major branding Smartphone, Tablet and Laptop with Type-C interface
• 36W Output
• with GaN TECH, Efficiency 91.4%

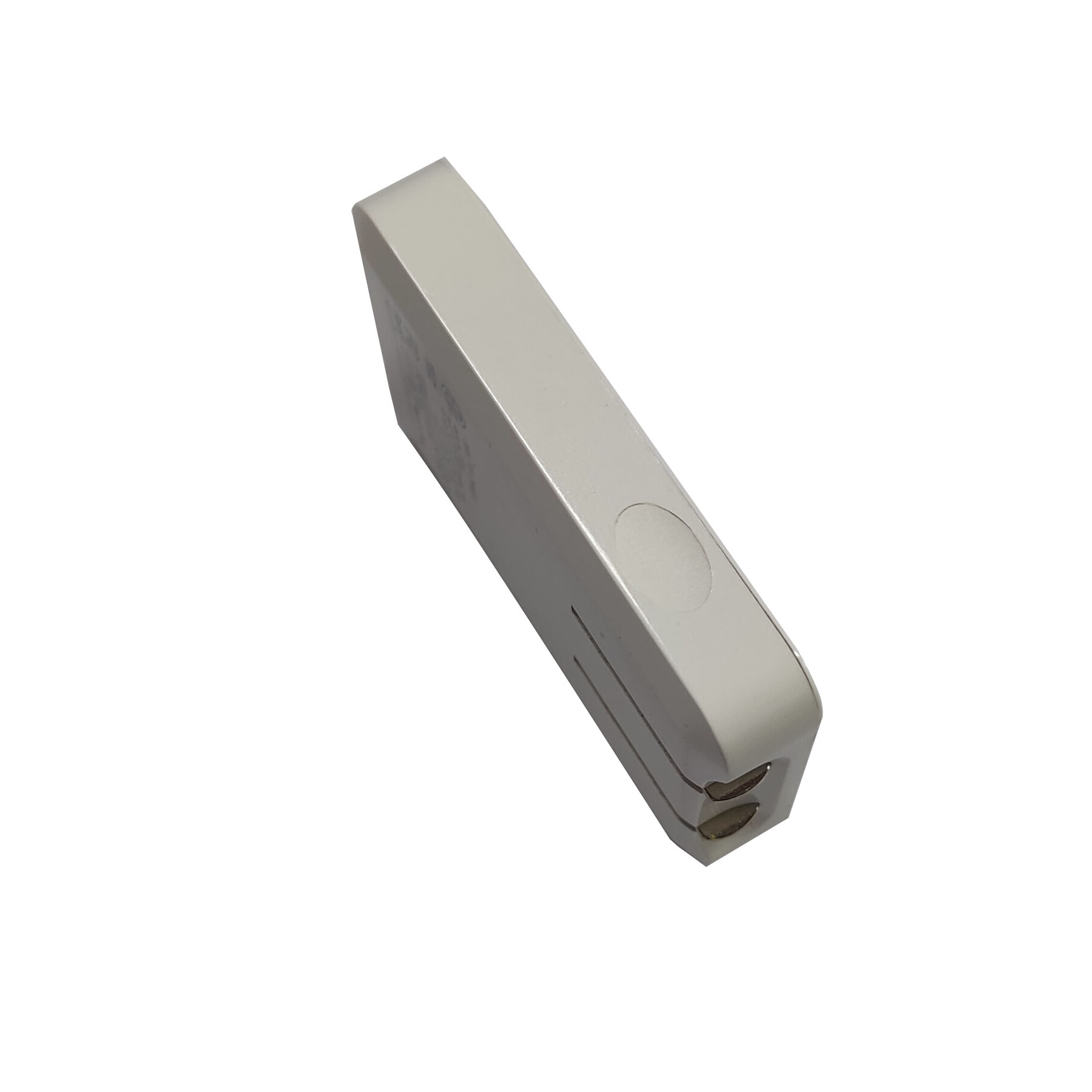

• Compact size, light weight and easy to take, 9mm thickness only
• Super compatible with Apple/Android system
• Fast Charging and iPhone 13 will be charged 60% within 30 min.
• Auto Over Voltage, over Current and Over Temperature Protection, more safe
• Low Ripple and Low EMI

Major Spec

Input 90-264VAC, 120/230

Input Frequency 47-63Hz, 60/50

Output Type-C PD: 5V/3A, 9V/3A, 12V/3A, 15V/2.4A, 20V/1.8A,

             PPS : 3.3-11.0V/3A, 3.3-16V/2A

Output Power: 36W

Output Volatge Ripple 516mV under testing Input 90VAC and Output 20V/1.8A

Max Efficiency 91.4% under testing Input 230VAC and Output 20V/1.8A

EMC CE Meet EN55032 CLASS B

Size 61.6 X 36.4 X 9.0MM

Power Density 29.2W/IN3

Full Load Output Power Chart

Primary side maximum voltage stress test waveform

Secondary side maximum voltage stress test waveform

Ripple test waveform

Thermal test
