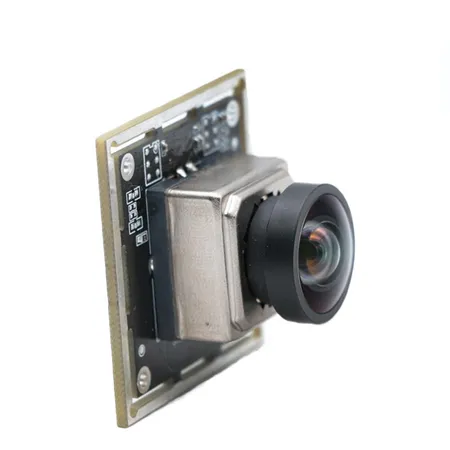

Global Exposure AR0234 1080P Autofocus USB High-Speed Snapshot Camera Module

生产所需时间:

7 日

运送方式:

DHL/FedEx

是否可订造:

可以

型号编号:

SNS-GM1045-V1.0

分辨率:

1920×1080

尺寸:

Customizable

品牌:

Sinoseen

描述

联络供应商

We have introduced a USB2.0 camera module with autofocus that uses the AR0234 CMOS sensor and can run at up to 120 frames per second (fps) while capturing 1080p video and single-frame images. Using this 2-megapixel sensor with industry-leading shutter efficiency, inter-frame distortion in high-speed scenes can be minimized and motion artifacts encountered by other image sensors can be reduced to obtain clear images.

Model No	SNS-GM1045-V1.0
Sensor	1/2.6’’
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	3.0µm x 3.0µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

*Auto Focus

*It can run at up to 120 fps while capturing 1080p video and single-frame images.

*inter-frame distortion in high-speed scenes and motion artifacts encountered by other image sensors can be minimized for clear images.

*Low noise and improved low-light response make it suitable for industrial applications.

*Other advanced features include: programmable ROI with on-chip histogram, automatic exposure control and 5 x 5 statistics engine, fully integrated strobe lighting control, flexible row and column skip modes, and horizontal and vertical mirroring, windowing and pixel binning.
