HBM/MM ESD Simulators for IC Testing

美元 $9999.00 - 美元 $15555.00

生产所需时间:

20 日

运送方式:

By express

应用:

testing instrument

品牌:

LISUN

型号编号:

ESD-883D

描述

联络供应商

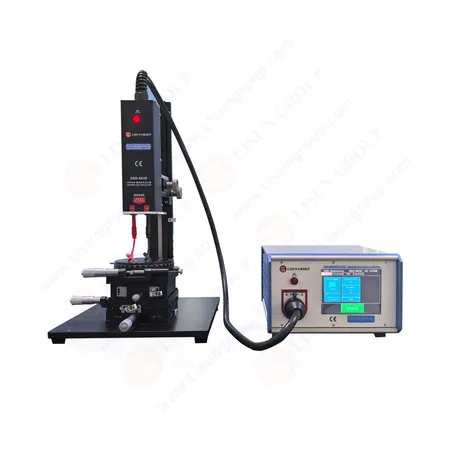

ESD-883D ESD Simulators for IC Testing is specially designed for the characteristics and requirements of the electrostatic discharge immunity test of the Human Body Model (HBM) discharge and the Machine Model (MM) discharge. It can test the electrostatic immunity of semiconductor devices such as LED chips, transistors and ICs. It is designed and manufactured in accordance with the requirements of the following corresponding standards, and fully meets the most stringent electrostatic voltage requirements in the following standards.

Discharge Model	International Standards
Human Body Model (HBM)	MIL-STD-883 Method 3015 “Test Method Standard for Microcircuits-Electrostatic Discharge Susceptibility Testing”
	ANSI/ESD STM5.1-2007 “Standard Test Method for Electrostatic Discharge Sensitivity Testing-Human Body Model (HBM)-Component Level”
	ANSI/ESDA/JEDEC JS-001-2024 “Electrostatic Discharge (ESD) Sensitivity Testing-Human-Body Model (HBM)-Component Level”
	IEC 60749-26:2018 “Semiconductor devices-Mechanical and climatic test methods-Part 26: Electrostatic discharge (ESD) sensitivity testing-Human body model (HBM)”
	AEC-Q100-002 “Failure Mechanism Based Stress Test Qualification for Integrated Circuits-ESD HBM Test”
	EIA/JESD22-A114-A “Test Method for Electrostatic Discharge Sensitivity Testing-Human Body Model (HBM)”
Machine Model (MM)	ANSI/ESD STM5.2-2013 “Standard Test Method for Electrostatic Discharge Sensitivity Testing-Machine Model (MM)-Component Level”
	IEC 60749-27:2012 “Semiconductor devices-Mechanical and climatic test methods-Part 27: Electrostatic discharge (ESD) sensitivity testing-Machine model (MM)”
	AEC-Q100-003 “Failure Mechanism Based Stress Test Qualification for Integrated Circuits-ESD MM Test”
	EIA/JESD22-A115-A “Test Method for Electrostatic Discharge Sensitivity Testing-Machine Model (MM)”

Characteristic:
• Color LCD touchscreen, easy to operate.
• Output voltage with high accuracy and stable performance
• Intelligent programmable high-voltage power supply, high-voltage over-voltage, over-current, short-circuit protection
• With self-diagnosis function, can intelligently judge abnormal high voltage output
• Cost-effective: The main components are all imported, with high accuracy and low failure rate.

Specification:

Output voltage		Human Body Model（HBM）	Machine Mode (MM)
		0.05~8kV±5％	50~800V±5％
Output polarity		Positive, Negative or Automatic switching
Trigger mode	Single	Single discharge
	Count	Discharge according to the set discharge times
	Other	Host self-triggering
Discharge mode		HBM and MM
Discharge Interval		1~99s
Discharge Number		1~999
Discharge Capacitance		100pF±10％	200pF±10％
Discharge Resistance		1500Ω±10％	0Ω±10％
Working Power		AC 100~240V, 50/60Hz, 300W

Note: ESD-883D can share a host with ESD-CDM Charged Device Mode (CDM) ESD Testing for IC to test HBM, MM and CDM at the same time (LISUN model: ESD-883D/ESD-CDM)
