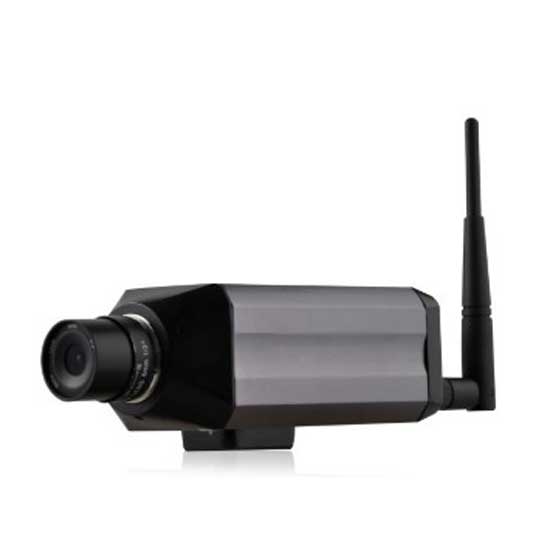

The IP camera is made of aluminum alloy casing with high durability. The IP camera functions as a security system with remote monitoring ability. The IP camera works in high stability and reliability with excellent performance.

• Support local memory.
• CMOS sensor, 1.0 mega pixels.
• H.264 compression format.
• Support SD card up to 32G.
• 64CH software CMS, auto-search IP address.
• Support IE, super-client software and cell-phone visiting.
• Support 3-level account, password, user multi-level authority management.
• CPU operation system: embedded system.
• Video compression format: H.264 main profile level 3, dual stream.
• Signal system: CMOS 1,000,000 pixel.
• Frame rate main stream: 1-25fps.
• Second stream: 1-25fps.
• Resolution main stream: 720P (1,280 x 720).
• Second stream: QVGA (320 x 240).
• Video adjustment: brightness, contrast, chroma, saturation.
• Minimum illumination: 0.1lux/F1.2.
• S/N ratio: >41dB.
• WB, BLC auto.
• Audio compression format: G.726/G.711.
• Input: one channel linear input/microphone input.
• Output: one channel linear output.
• P/T control: one channel RS485.
• P/T protocol: PELCO-D protocol.
• Baud rate: 9,600.
• Network interface: 10Base-T/100Base-TX Ethernet slot.
• Protocol: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP.
• Online visitor: support 10 visitors at the same time
• Wireless: 802.11b/g Wi-Fi standard wireless network.
• IP mode: dynamic IP address, static IP address, PPPOE.
• Material: aluminum alloy.
• Power: DC12V, 1A.
• Temperature: -10-50°C.
• Humidity: 95% RH.
