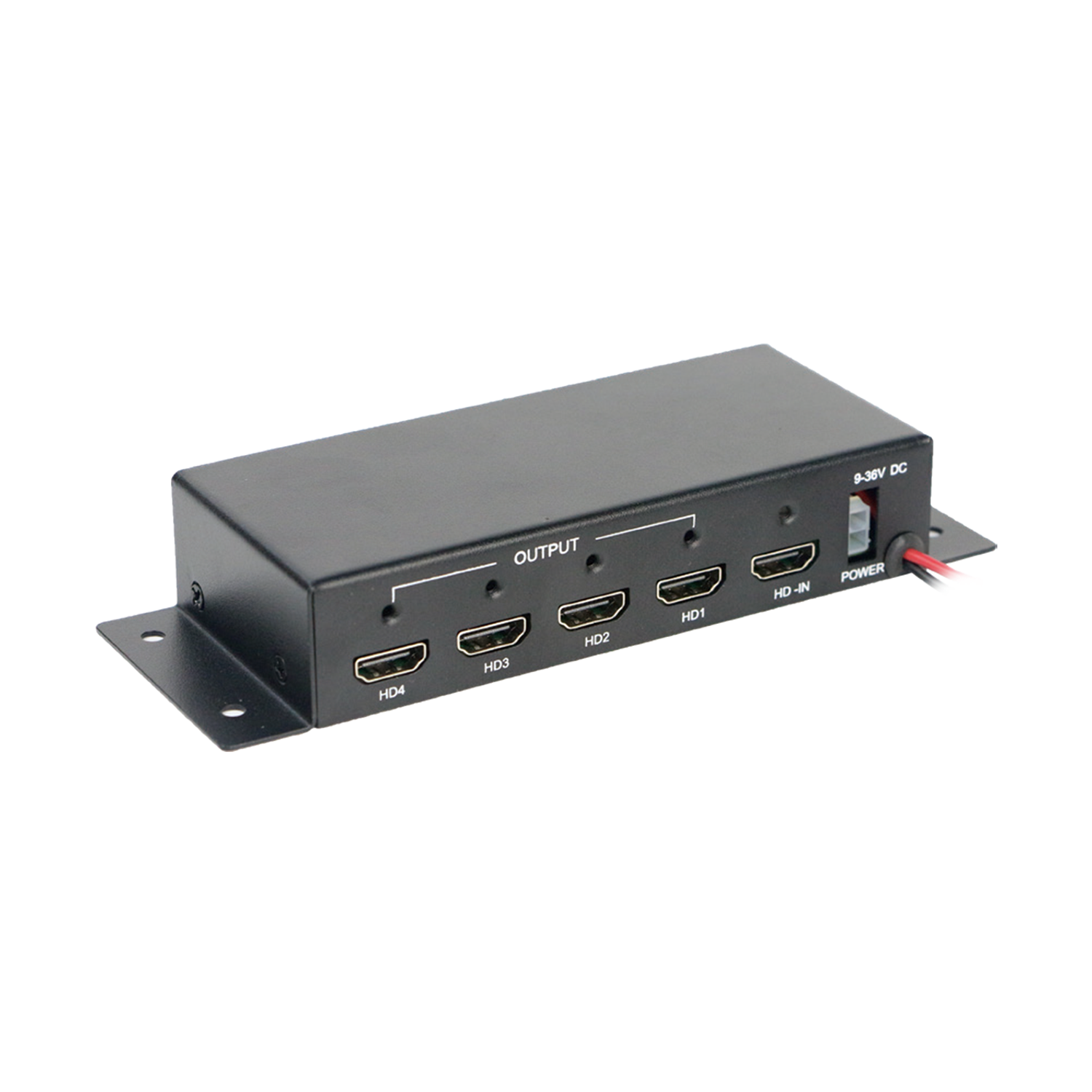

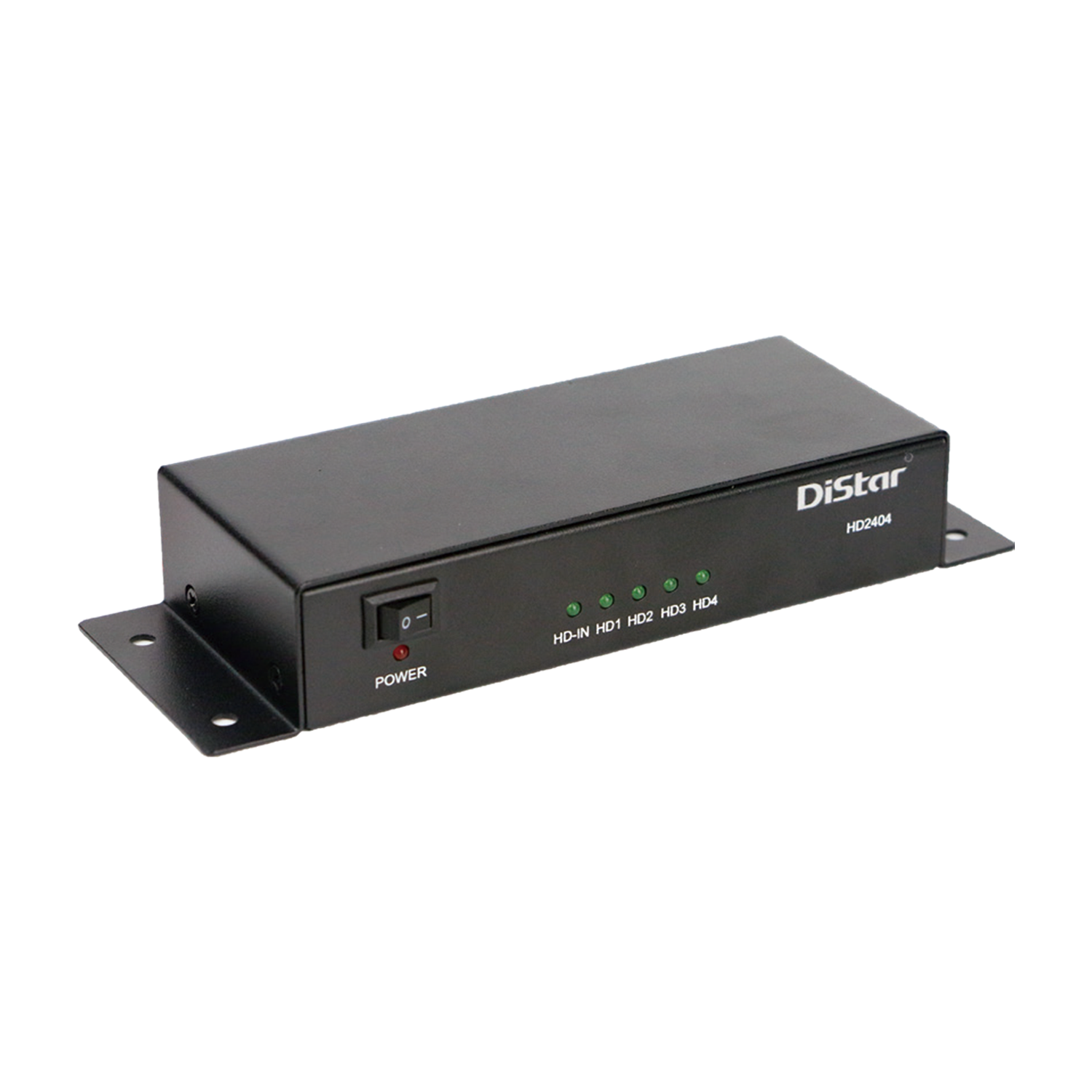

HDMI Video Splitter for Bus

型号编号:

DST-HD2404

Operating Voltage:

DC 9-36V

Signal Rate:

Maximum Signal Rate

描述

联络供应商

Wide Operating Voltage (DC 9-36V)
The DST-HD2404 HDMI video splitter is designed to operate within a wide voltage range (DC 9-36V), making it suitable for a variety of vehicles, including buses, trucks, and commercial vehicles with different electrical systems.
1 HDMI Signal Input, 4 HDMI Signal Outputs
Distribute a single HDMI input signal to 4 HDMI outputs, perfect for vehicles with multiple display screens. This is ideal for providing high-quality video and audio to different areas within a bus or other large vehicle.
Compliant with HDMI 1.4b Standard
Fully compliant with the HDMI 1.4b standard, ensuring reliable and high-quality video and audio output for all connected displays.
Supports HDMI 1.4b 4K x 2K @ 30Hz Format
Capable of supporting 4K x 2K resolution at 30Hz for high-definition video output, delivering clear, sharp, and crisp visuals for each display.
Supports HDMI 2.0 YCbCr420 4K x 2K @ 60Hz Format
Supports HDMI 2.0 YCbCr420, providing superior video quality with up to 4K x 2K resolution at 60Hz, ensuring smooth and vibrant video playback across multiple screens.
HDMI Output End with Pre-emphasis Function
The HDMI output features a pre-emphasis function, enhancing long-distance transmission and maintaining signal integrity over extended cable lengths.
Supports 10/12/16-bit Color Depth Input/Output
Offers flexible support for various color depths, including 10, 12, and 16-bit, allowing for rich and accurate color representation on all connected displays.
Maximum Signal Rate up to 3 Gbps
Capable of handling a maximum signal rate of 3 Gbps, ensuring smooth transmission of high-quality video and audio signals without lag or distortion.
