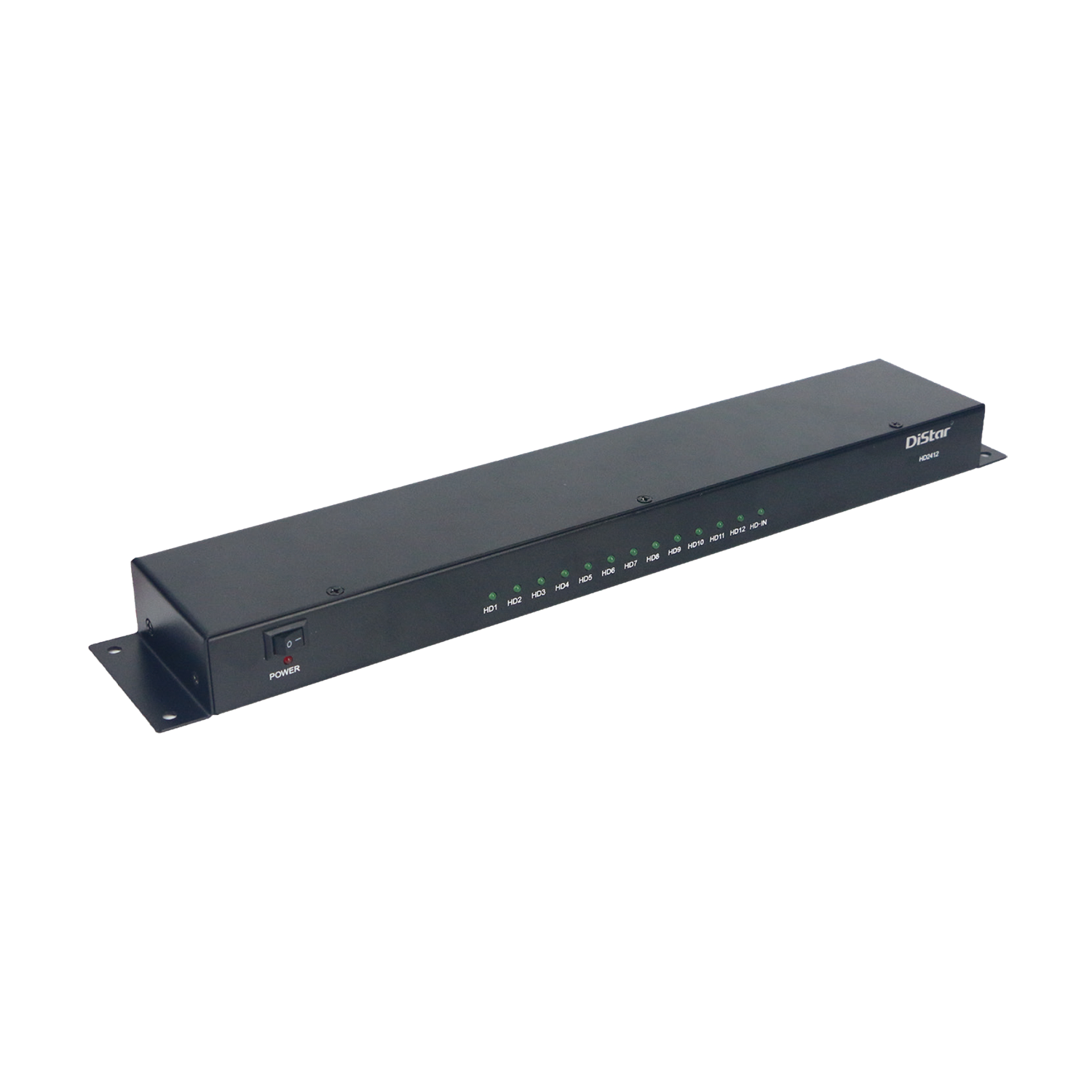

HDMI Video Splitter for Bus

型号编号:

DST-HD2412

Operating Voltage:

DC 9-36V

Signal Rate:

Maximum Signal Rate

Output Support:

Supports audio output frequencies ranging from 32kHz to 192kHz

描述

联络供应商

Wide Operating Voltage (DC 9-36V)
The DST-HD2412 HDMI video splitter supports a wide voltage range (DC 9-36V), ensuring compatibility with various vehicles, including buses, trucks, and commercial vehicles with different electrical systems.

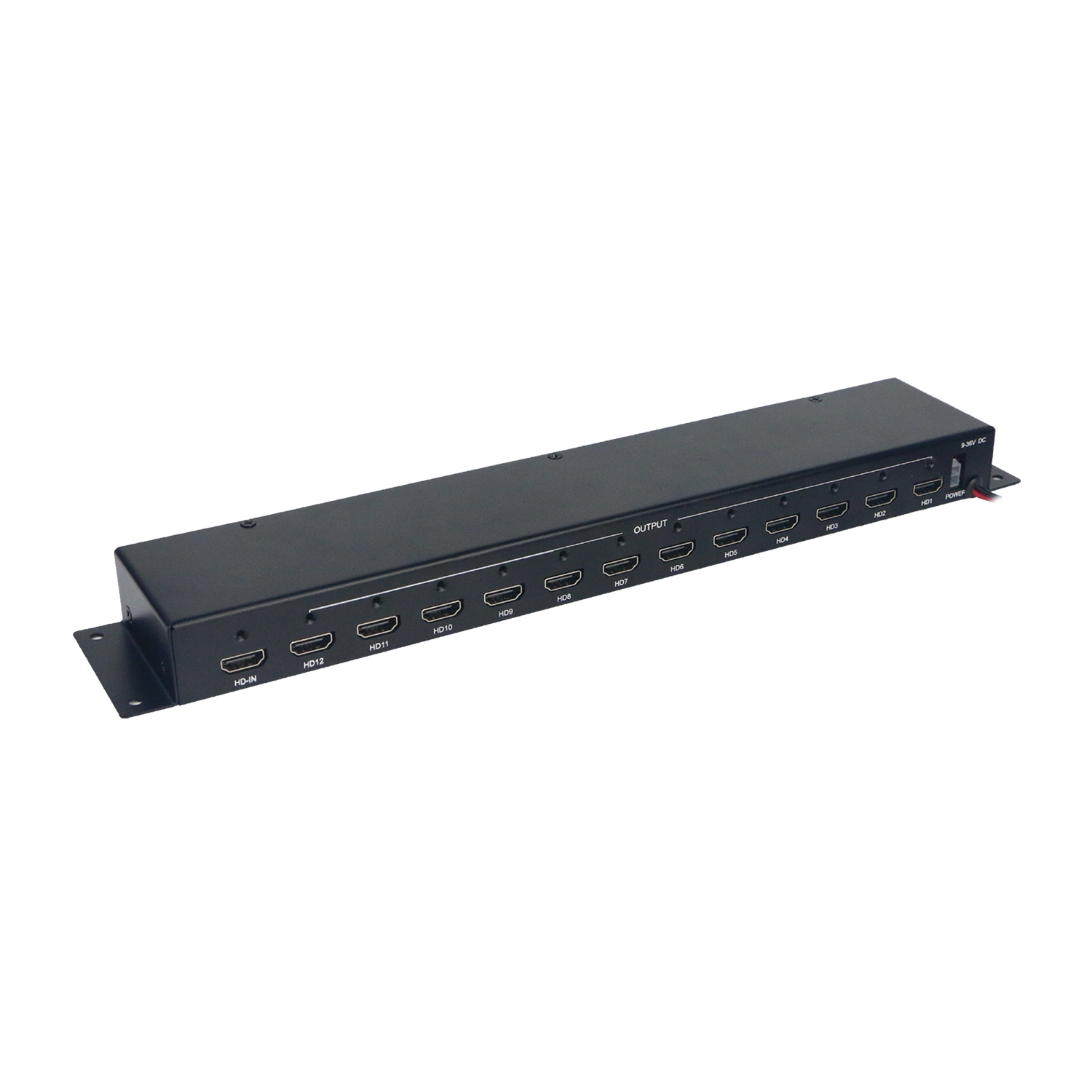

1 HDMI Signal Input, 12 HDMI Signal Outputs
Distribute a single HDMI input signal to 12 independent HDMI outputs, making it perfect for large vehicles like buses with multiple screens or displays, ensuring seamless video distribution.
Compliant with HDMI 1.4b Standard
Fully compliant with the HDMI 1.4b standard, offering reliable and high-quality video and audio output for all connected displays.
Supports HDMI 1.4b 4K x 2K @ 30Hz Format
Capable of supporting 4K x 2K resolution at 30Hz, delivering sharp, clear visuals across multiple displays for a premium viewing experience.
Supports HDMI 2.0 YCbCr420 4K x 2K @ 60Hz Format
Offers HDMI 2.0 YCbCr420, allowing for superior video quality at 4K x 2K resolution with 60Hz refresh rate, ensuring smoother and more vibrant video playback.
HDMI Output with Pre-emphasis Function
The HDMI output features a pre-emphasis function, which improves long-distance transmission and ensures consistent signal quality even over extended cable lengths.
Supports 10/12/16-bit Color Depth Input/Output
Supports various color depths (10, 12, and 16-bit), providing rich and accurate color reproduction for optimal video performance across all connected displays.
Maximum Signal Rate of 3 Gbps
Capable of handling a maximum signal rate of 3 Gbps, allowing for smooth and uninterrupted video and audio signal transmission without degradation.
Supports Audio Output Frequencies from 32kHz to 192kHz
The system supports audio output frequencies ranging from 32kHz to 192kHz, ensuring clear and high-quality audio performance across all connected devices.
