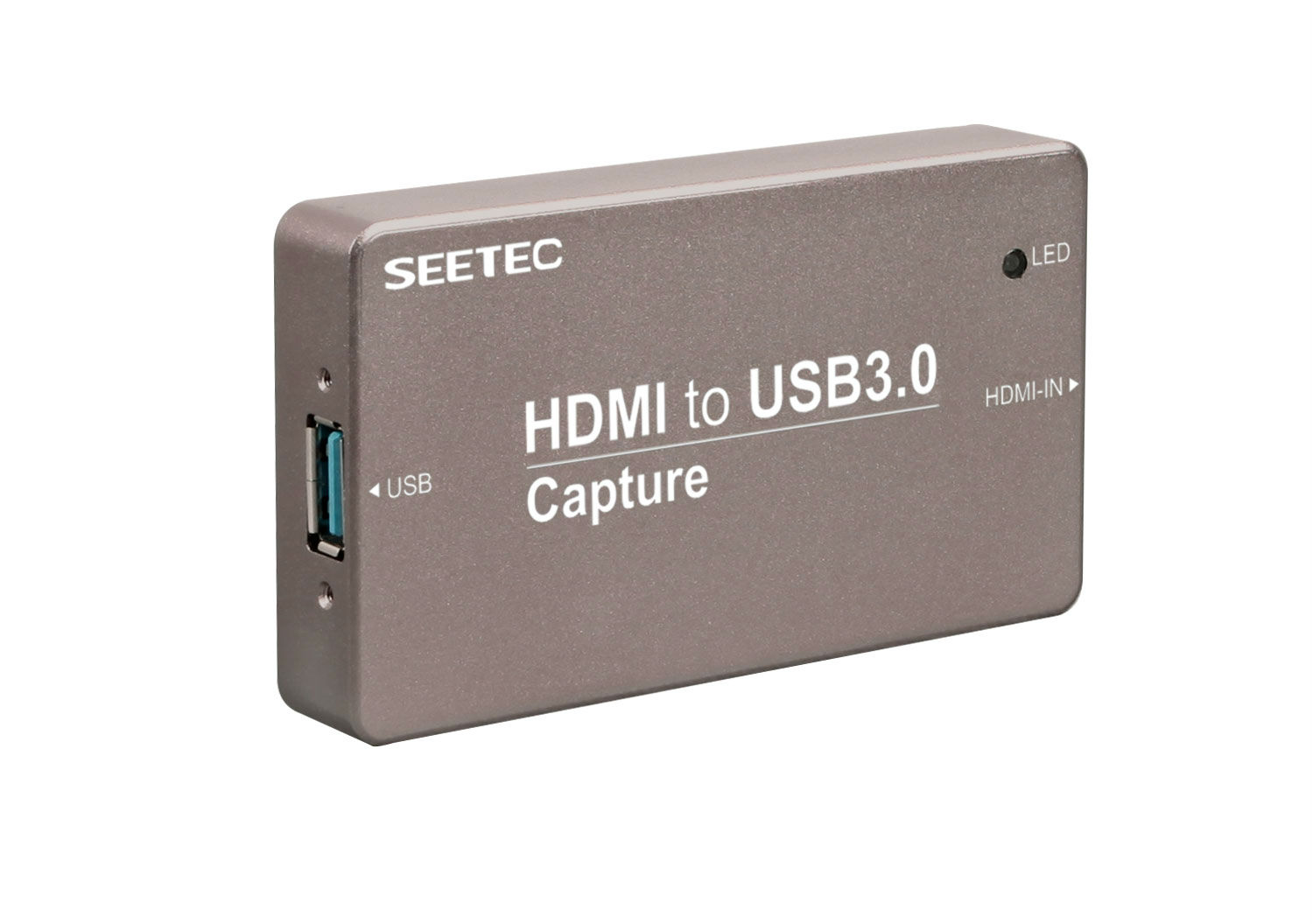

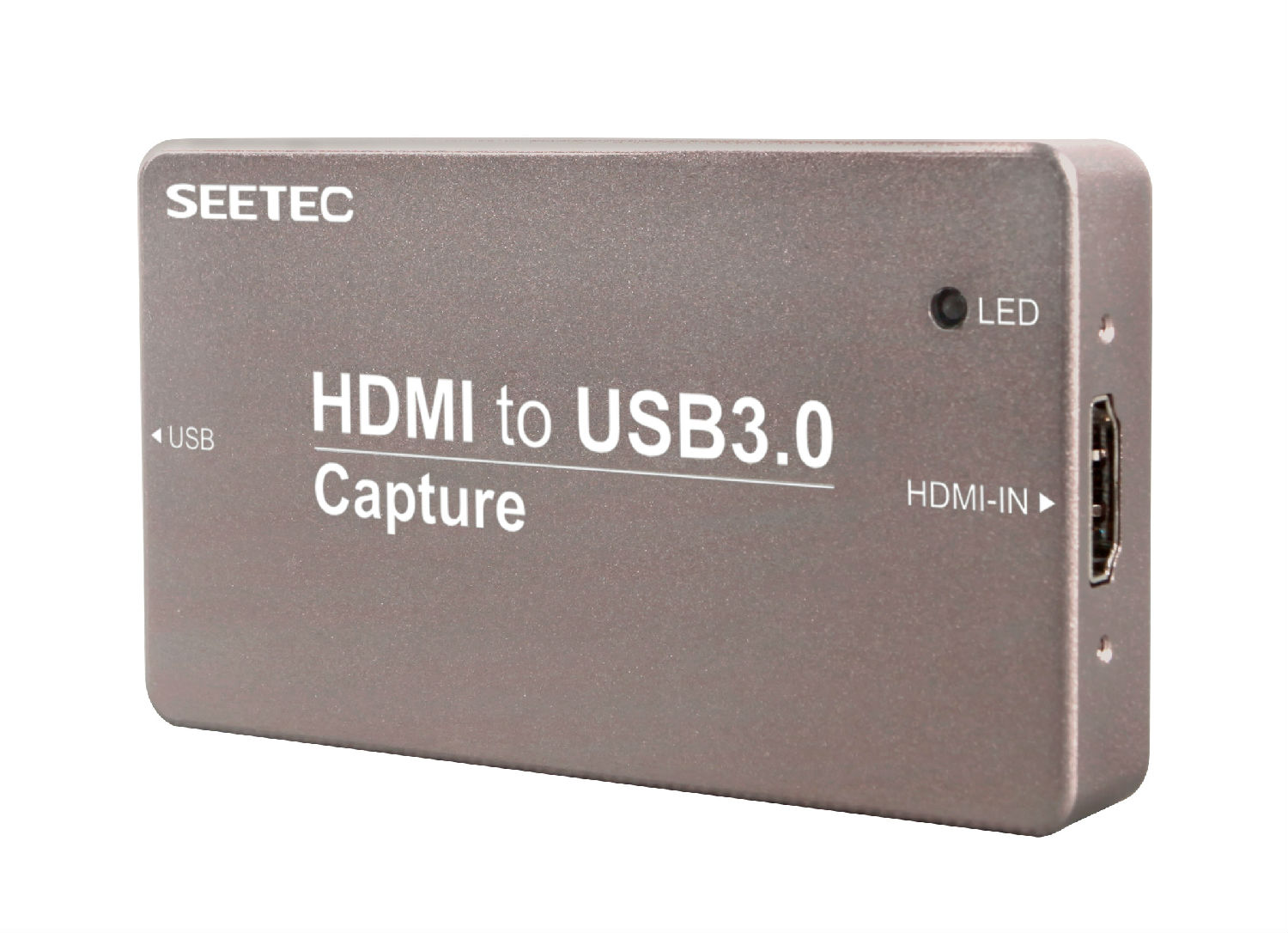

HDMI to USB3.0 Capture card for video streaming and video conference
生产所需时间:
7 日
产品型号:
HTU3.0
品牌名称:
SEETEC
颜色:
Golden
尺寸:
97.8L x 56H x 17.6Dmm
港口:
Xiamen
付款方式:
T/T, L/C, Credit Card
最低订购数量:
1
是否可定制:
是
是否有包装:
有
描述
联络供应商
描述
1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn’t need to install a driver, and it is truly PnP.
6. It is compatible with Windows, Linux, OS X operating systems.
7. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
8. The process of video and audio is done by the dongle and will not occupy the CPU.
9. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
10. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
11. It supports the image adjustment features, like brightness, contrast, hue and saturation.
12. Multiple dongles can be used on one PC
13. The firmware can be updated.
Host Interface: USB3.0, *300-350MB/s throughput (Compatible with USB2.0, *40MB/s throughput)
Input Interface: 1 HDMI interface
HDMI Video Input: 1 1080p/60Hz HD HDMI
HDMI Audio Input: 1 LPCM audio signal
HDMI Input Formats: It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Input Formats: Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate: 25/29.97/30/50/59.94/60 fps
Output Formats: Resolutions: USB3.0 1080x1920; USB2.0 720x480
Video Sampling Rate: HDMI: 165MHz
Audio and Video Capture: It meets the standards of UVC (USB video class) and UAC (USB audio class)
Output Color Space: YUY2, RGB24
The Support of OS: It supports the following operating systems (x86 and x64 versions):
Windows 7, 8, 10
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Android
Software Compatibility: Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X) etc.
Unit Size: 97.8L×56H×17.6D (mm)
Unit Weight: 120g
Power consumption: ≤ 2.5W
Working Temperature: 0℃ ～ 50℃
Storage Temperature: -20℃ ～ 70℃
Storage Humidity: 5%-90%
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
4. The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.
5. It doesn’t need to install a driver, and it is truly PnP.
6. It is compatible with Windows, Linux, OS X operating systems.
7. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.
8. The process of video and audio is done by the dongle and will not occupy the CPU.
9. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
10. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
11. It supports the image adjustment features, like brightness, contrast, hue and saturation.
12. Multiple dongles can be used on one PC
13. The firmware can be updated.
Host Interface: USB3.0, *300-350MB/s throughput (Compatible with USB2.0, *40MB/s throughput)
Input Interface: 1 HDMI interface
HDMI Video Input: 1 1080p/60Hz HD HDMI
HDMI Audio Input: 1 LPCM audio signal
HDMI Input Formats: It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Input Formats: Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate: 25/29.97/30/50/59.94/60 fps
Output Formats: Resolutions: USB3.0 1080x1920; USB2.0 720x480
Video Sampling Rate: HDMI: 165MHz
Audio and Video Capture: It meets the standards of UVC (USB video class) and UAC (USB audio class)
Output Color Space: YUY2, RGB24
The Support of OS: It supports the following operating systems (x86 and x64 versions):
Windows 7, 8, 10
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Android
Software Compatibility: Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X) etc.
Unit Size: 97.8L×56H×17.6D (mm)
Unit Weight: 120g
Power consumption: ≤ 2.5W
Working Temperature: 0℃ ～ 50℃
Storage Temperature: -20℃ ～ 70℃
Storage Humidity: 5%-90%
