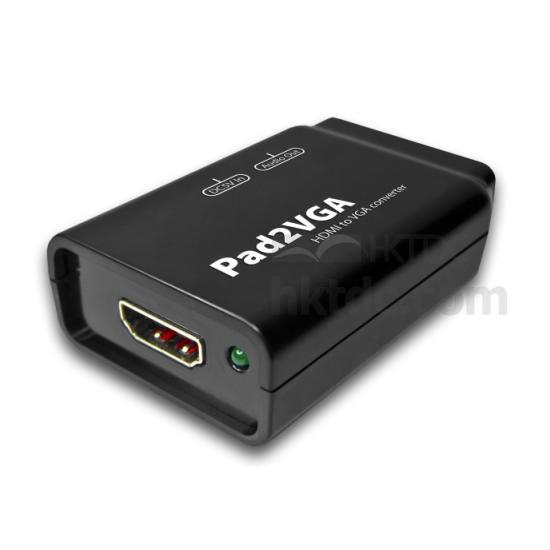

HDMI-to-VGA Converter

生产所需时间:

5 日

产品型号:

3584

品牌名称:

Pad2VGA

颜色:

Black

尺寸:

54.5 x 41 x 22mm

港口:

Keelung

描述

联络供应商

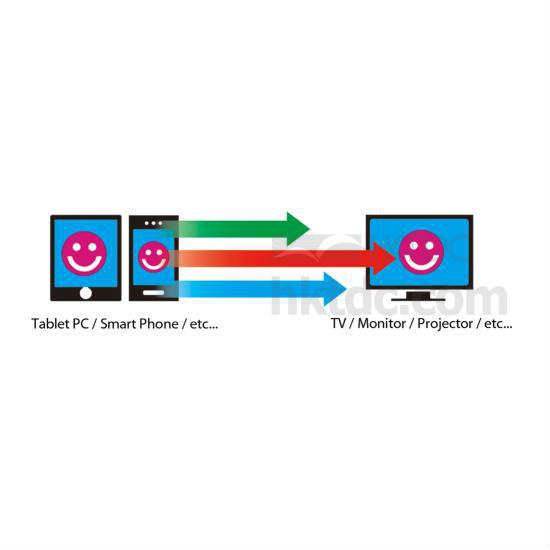

VideoHome Pad2VGA is a portable connection adapter to connect a HDMI enabled tablet, smartphone, computer or other HDMI device to a VGA supported TV, monitor or projector (include audio out). Now it is easy to convert your HDMI to VGA by this device.
Supports analogue video output up to UXGA and 1080p with three on-chip DAC.
On-chip audio decoder which supports 2-channel audio output.
Pocket size dimension.
Support spare external power-in jack to meet any critical HDMI power tablet/smart phone.
On-chip HDMI® receiver with equalizer.
On-chip HDMI® receiver core which is compliant with HDMI® 1.3 specification.
Supports pixel clock rate up to 165MHz.
On-chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space.
Supports separate sync. output and sync. on green (SOG).
Flexible interrupt registers with interrupt pin.
Low stand-by current at power down mode.
Supports plug and play feature.
Video/audio input: standard HDMI® connector (A-type), bundle C/D type adapter.
Video output: VGA connector (max. resolution 1920 x 1080).
Audio output: 3.5Ø audio jack (2 channels stereo audio).
Power mode: bus power and self power alternatively.
Power consumption: 1.8W (max. measured with resolution 1920 x 1080 plus audio output).
Dimension (L x W x H): 54.5 x 41 x 22mm (excluded cables).

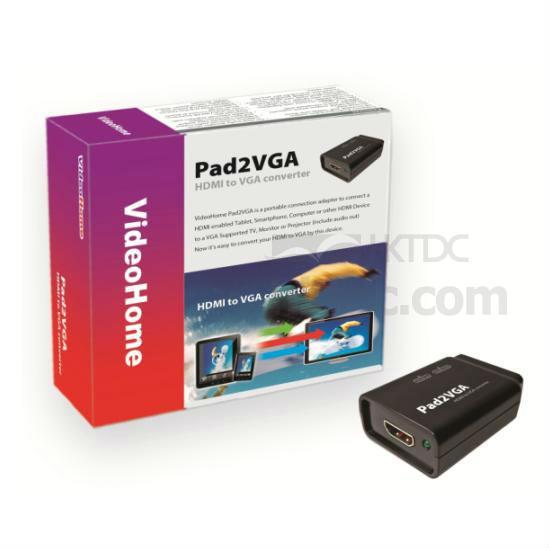

Package contents:
Pad2VGA device x 1.
DC 5V power adapter x 1.
HDMI cable (A-type male to A-type male) x 1.
Mini HDMI adapter (A-type female to C-type male) x 1.
Micro HDMI adapter (A-type female to D-type male) x 1.
