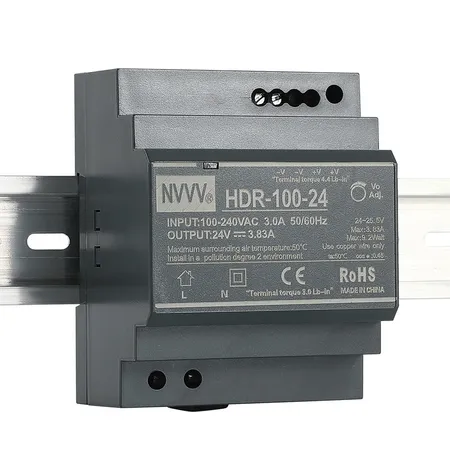

HDR-100-24 Ultra Slim Step-Shape 4SU DIN Rail Power Supply, 24Volt 3.83Amp 92Watt 85 to 264 VAC Input 24 V Output

生产所需时间:

1 日

运送方式:

Express Delivery

应用:

AC to DC

品牌:

NVVV

型号编号:

HDR-100-24

尺寸:

70*90*54.5

重量:

0.3kg

描述

联络供应商

85 ~ 100W Ultra Slim Step Shape DlN Rail HDR - 100 series
SPEClFlCATlON
MODEL		HDR-100-12	HDR-100-15	HDR-100-24	HDR-100-48
OUTPUT	DC VOLTAGE	12V	15V	24V	48V
	RATED CURRENT	7.1A	6.13A	3.83A	1.92A
	CURRENT RANGE	0 ~ 7.1A	0 ~ 6.13A	0 ~ 3.83A	0 ~1.92A
	RATED POWER	85.2W	92W	92W	92.2W
	RlPPLE & NOlSE（max.) Note.2	120mVp-p	120mVp-p	150mVp-p	240mVp-p
	VOLTAGE ADJ.RANGE	12 ~ 13V	15 ~ 17V	24 ~ 25.5V	48 ~ 48.7V
	VOLTAGE TOLERANCE Note.3	士2.0%	士1.0%	士1.0%	士1.0%
	LlNE REGULATlON	士1.0%	士1.0%	士1.0%	士1.0%
	LOAD REGULATlON	士1.0%	士1.0%	士1.0%	士1.0%
	SETUP，RlSETlME	500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
	HOLD UP TlME（TYP.)	30ms/230VAC 12ms/115VAC at full load
lNPUT	VOLTAGE RANGE	85 ~ 264VAC（277VAC operational ） 120 ~ 370VDC（390VDC operational ）
	FREQUENCY RANGE	47 ~ 63Hz
	EFFlClENCY（TYP.)	88%	89%	90%	90%
	AC CURRENT（TYP.)	3A/115VAC 1.6A/230VAC
	lNRUSH CURRENT（TYP.)	COLD START 35A/115VAC 70A/230VAC
PROTECTlON	OVERLOAD	HDR-100 : 102 ~ 110% rated output power ; HDR-100-XXN : 105 ~ 150% rated output power
		Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
	OVER VOLTAGE	14.2 ~ 16.2V	18.8 ~ 22.5V	30 ~ 36V	56.5 ~ 64.8V
		Protection type : Shutdown o/p voltage, re-power on to recover
ENVlRONMENT	WORklNG TEMP.	-30 ~ +70℃（Refer to "Derating Curve"）
	WORklNG HUMlDlTY	20 ~ 90% RH non-condensing
	STORAGE TEMP.，HUMlDlTY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFlClENT	士0.03%/℃（0 ~ 50℃）RH non-condensing
	VlBRATlON	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z aXes; Mounting: Compliance to lEC60068-2-6
	OPERATlNG ALTlTUDE	2000 meters
	OVER VOLTAGE CATEGORY	Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY	WlTHSTAND VOLTAGE	l/P-O/P:4kVAC
	lSOLATlON RESlSTANCE	l/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
OTHERS	MTBF	3271.9k hrs min. Telcordia SR-332（Bellcore）; 856.5k hrs min. MlL-HDBk-217F（25℃）
	DlMENSlON	709054.5mm（WHD）
	PACklNG	0.27kg; 48pcs/13.74kg/0.96CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Harmonic current test at 90% load for HDR-100-XXN. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft）.
