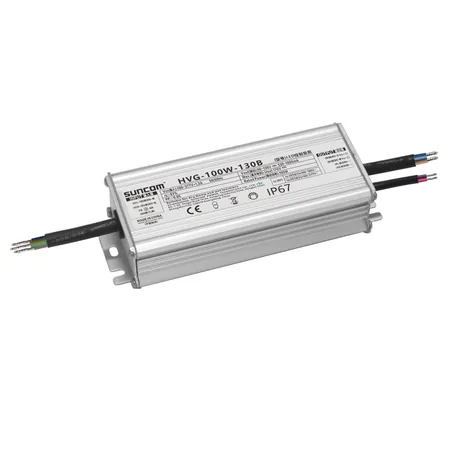

HVG series:Non-isolated Street Light LED Drivers

应用:

Street light

品牌:

suncom

是否可订造:

可以

特性:

INPUT VOLTAG: 100-277V OUTPUT VOLTAGE: 90-130V ELECTRICAL PERFORMANCE PARAMETERS: THD<10%/PF>0.95 SURGE PROTECTION GRADE: 6/10KV (≤75W: 4/6KV) IP GRADE: IP67 WARRANTY: 5 years

尺寸:

105*56*32mm,136*56*32mm,145*56*32mm,etc.

型号编号:

HVG-30W-130A,HVG-50W-130A,HVG-75W-130A,ETC.

电源类型:

交流电

光源:

发光二极管照明

描述

联络供应商

Input voltage range: 100-277V

Output voltage: 90-130V

THD＜10%/PF＞0.95

Class I type for insulation
Constant current output , with power limitation for control mode, non-isolated
Efficiency up to 93%（Typ.）
Surge protection: 6/10KV
Metal material case, protection grade against water and dust: IP67
Protections: UVP/SCP/OTP/OVP
Products certifications: CCC/CE/CB
Dimming function: 3 in 1 dimming (1-10V dimming/PWM dimming/resistor dimming)
Output current is dimmed by external potentiometer ( Only Type A )
Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B）
Working temperature: -40 ~ 55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40 ~ 80℃
Warranty: 5 years
