Halogen Free Thin Wall Cross-Linked Polyolefin Tubing for Wire And Cable Protection

生产所需时间:

28 日

产品型号:

S2(n)

品牌名称:

UPM Heat Shrink

颜色:

white,red,blue,yellow,green,yellow,grey,black

港口:

Dalian, China

付款方式:

T/T, D/P

最低订购数量:

100 piece(s)

是否有包装:

有

是否可定制:

是

描述

联络供应商

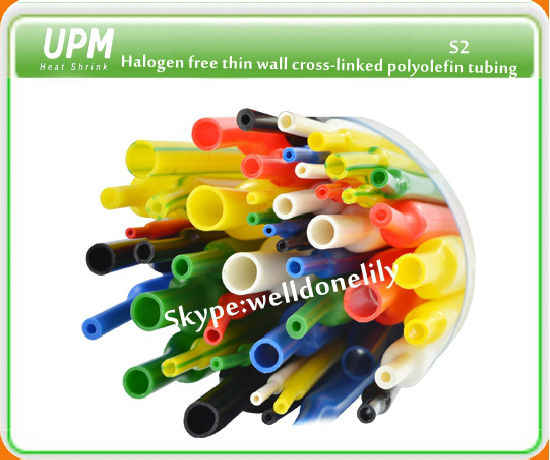

S2(n) Halogen Free Thin Wall Heat Shrink Tubing for General Purpose
Features
Insulation, Protection,Identification
Flame retardant VW-1(except clear)
Halogen free, Flexible
Wide range of colors
Operating temperature: -40~125 ℃
Shrink temperature: 125 ℃
Shrink Ratio：2:1 & 3:1
Voltage Class：600~1000 V
Typical application
Ideal for electrical insulation,strain relief,wire bonding and light harness jacketing
Common applications include electronic systems of subway, aircraft, submarine , control room facilities and sealed environment
Ordering
Standard color : Red,Blue, Yellow, Green, Black, Clear
Shrink ratio 3:1
Reference As supplied(mm)After recovered(mm)Standard length
UPM S2(n) ID min. ID max. WT nom. m
1.5/0.5 1.5 0.5 0.5 200
3.0/1.0 3.0 1.0 0.7 200
4.5/1.5 4.5 1.5 0.7 100
6/2 6.0 2.0 0.8 100
9/3 9.0 3.0 1.0 50
12/4 12.0 4.0 1.1 50
15/5 15.0 5.0 1.2 50
18/6 18.0 6.0 1.3 50
24/8 24.0 8.0 1.5 25
30/10 30.0 10.0 1.7 25
39/13 39.0 13.0 1.9 25
50/16 50.0 16.0 2.5 1
60/20 60.0 20.0 2.6 1
70/23 70.0 23.0 2.6 1
80/26 80.0 26.0 2.8 1
90/30 90.0 30.0 2.8 1
100/33 100.0 33.0 3.0 1
