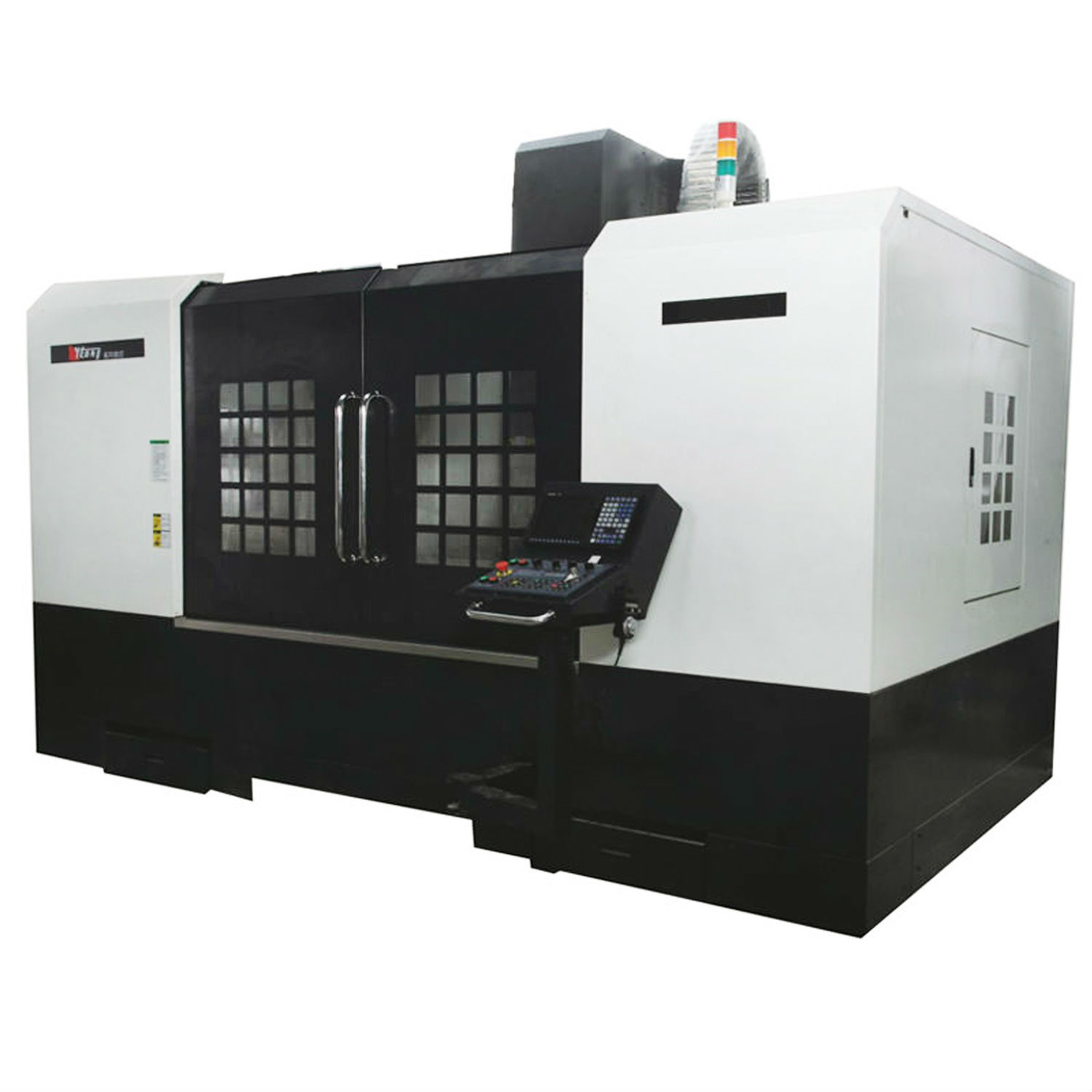

Hardway CNC (Vertical Machine Center) Milling Machine Center

广州义同机械实业有限公司

产品型号:

VMC-1270

品牌名称:

Yitong

尺寸:

(L x W x H) (mm) 3600 x 3300 x 3100

最低订购数量:

1 piece

是否可定制:

是

种类:

立式铣床

描述

联络供应商

Table size (mm): 1360x700.
Travel longitude(X) (mm): 1200.
Travel crossward(Y) (mm): 700.
Travel vertical (Z) (mm): 600
Distance between spindle and table (mm): 150-750.
Distance between spindle and column (mm): 785.
Spindle rotation speed (rpm): 7000/8000 (optional).
Spindle taper: BT50.
Spindle motor (KW): 11.
Rapid longitude (X) (m/min): 15.
Rapid crossward (Y) (m/min): 15.
Rapid vertical (Z) (m/min): 12.
Cutting feed (m/min): 8.
Positioning accuracy (m/min): 0.008.
Minimum set moving unit (mm): 0.001.
Net weight (KG): 10500.
Maximum load of table (KG): 1000.
Configurable gear head model (model): VMC-1270G.
Configurable gear head model (rotation speed rpm): low speed: 10-1000/high speed: 1001-8000.
Stock available: 100.
Hardway CNC milling machine center
High rigidity,expert of moulding processing
3 axis hardway structure,superstrong antitorque,with good performance of rigidity fit for heavy load cutting
processing.
High rigidity structure design ensure needs of high perfromance and heavy cutting.
International high standard elaborate of metal plate cover design to ensure equipment encapsulation and
environmental protection.
Modularized configuration to meet customer's personalized choice with different processing demand.
Taiwan Japan and Germany top brand key parts.
Industrial Highlights
Auto parts moulding
household appliance moulding
Auto parts
