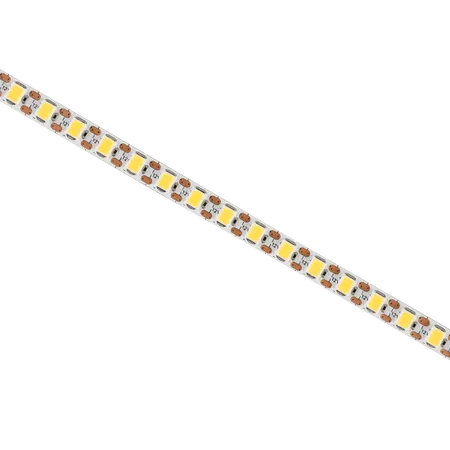

High-Efficacy Free-Cutting Series - 150lm/W 12V 160LED/M - 9680

Part No. :

GL-N2835XX-12-CV-160-9680

Dimension:

L3000*W5*H1.5mm [L118*W0.2*H0.06in.]

Increment:

6.25mm [0.25in.] (The minimum length for use is 6.25mm[0.25in.] with 1 LED)

LED Type:

SMD 2835

LED Qty:

160LED/M [48LED/ft.]

Voltage:

12VDC

Power:

7.2W/M [2.2W/ft.]

CCT/Wavelength:

2700/3000/3500/4000/5000/6500K (3 step in one bin)

Brightness@CRI90&4000K:

1080lm/M [329lm/ft.]

Light Efficiency@CRI90&4000K:

150lm/W

Beam Angle:

120°

IP Rating:

IP20/IP65 [Dry/Wet]

描述

联络供应商

Features
-

1. Field cuttable per one LED to be any length for precise assembly.
2. High efficacy up to 150lm/W in CRI90 with energy efficiency class in D.
3. Universal PCB width for perfect installation with aluminum profile.
4. High density of LED array for dot-free linear lighting performance.
