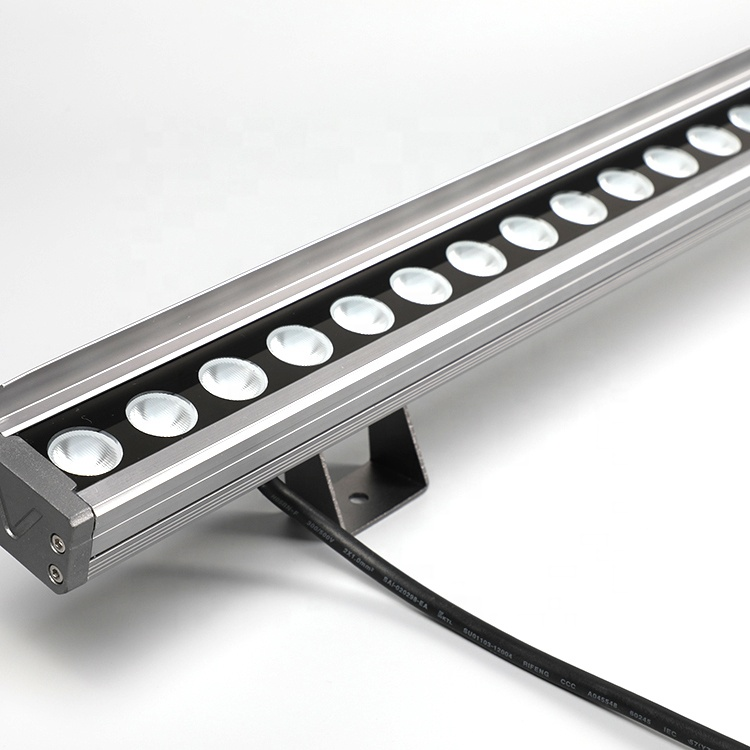

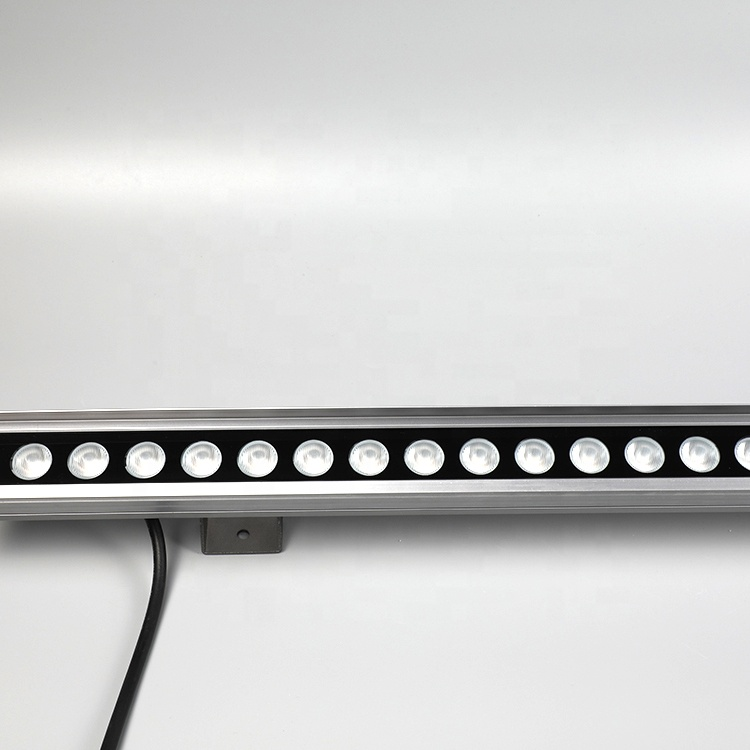

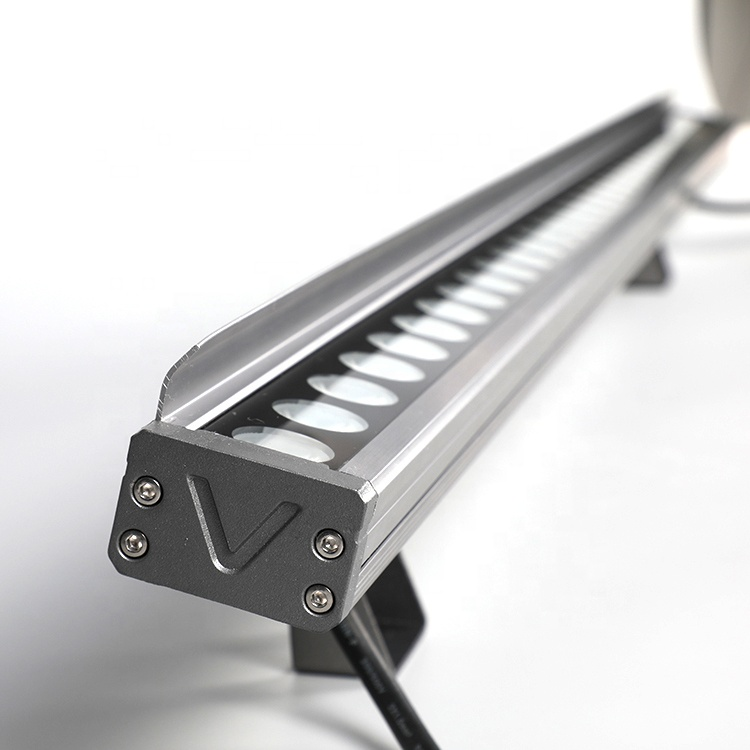

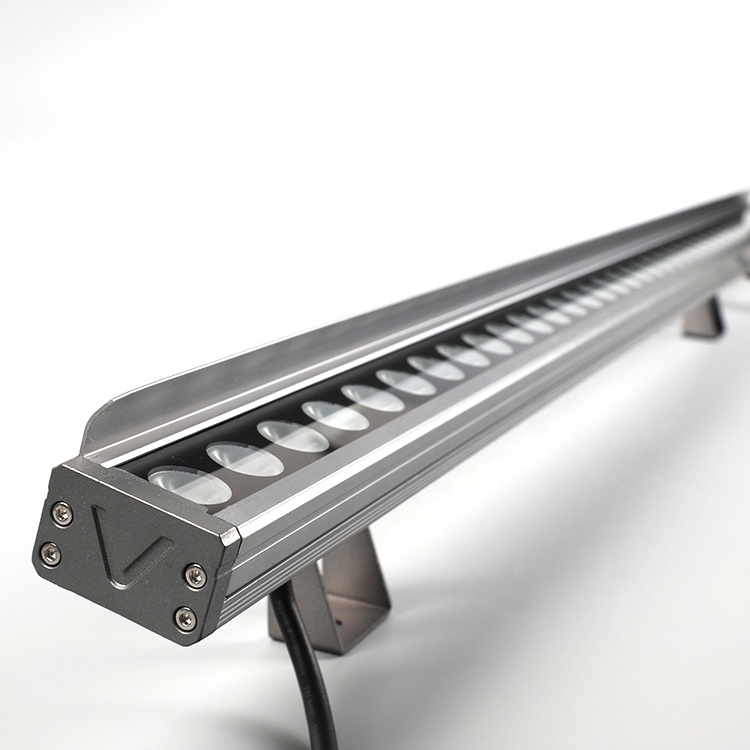

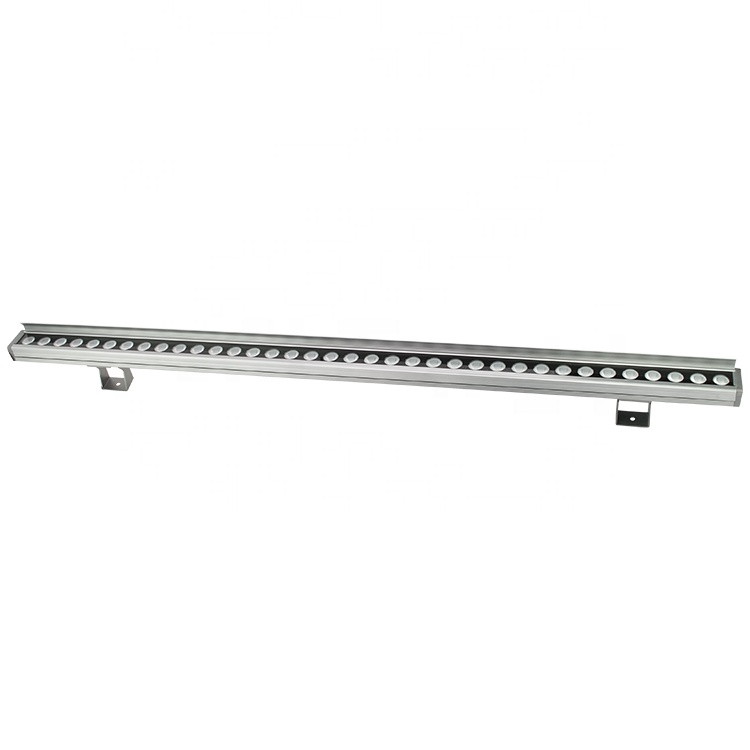

High Quality LED Wall washer

美元 $10.00 - 美元 $100.00

生产所需时间:

18 to 25 日

运送方式:

Ex-works

型号编号:

LWW-3601-3600-BH

Power :

36 Watts

Beam Angle:

12°/24°/30°/40°/60°/Oval lens 10*30°/15*40°

材料:

Anodizing CNC Aluminum 6063 Housing

描述

联络供应商

. 36 PCS 1W LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.12°/24°/30°/40°/60°/Oval lens 10*30°/15*40° beam angle as options
. 2700 lm luminous flux output
.IP65 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

General Data
Item No.	LWW-3601-3600-BH
Power	36 Watts
LED type	36 PCS 1W LED
Luminous flux	2700 lm
CCT	2700K,3000K,4000K,6000K
CRI	80+
Beam angle	12°/24°/30°/40°/60°/Oval lens 1030°/1540°
Dimension	10004528 mm (Length x Width x Height)
Cut out	/
Net weight	1.75 kgs
Warranty	3 years
Certifications	CE, RoHS
Electrical Data
Input voltage	AC100~265V
Insulation class	Class I
Cable	2 PCS rubber cables with waterproof connectors,one side male,another side female
Driver	Built-in high voltage constant current driver with transformer
Construction Data
IP rating	IP65 Waterproof
Housing	Passivated (Anodizing) Aluminum
Protection finishing	20~25μm thickness anodized film for housing .Dark grey
Trim	Aluminum + glass
Glass	Step tempered Glass.T=4mm.
Loading capacity	220 kgs
Cable Gland	PG IP65
Gasket	PMQ silicone gasket seal
Accessories
Bracket	Aluminum bracket
Barn door	Without barn door as standard , and with barn door as options
