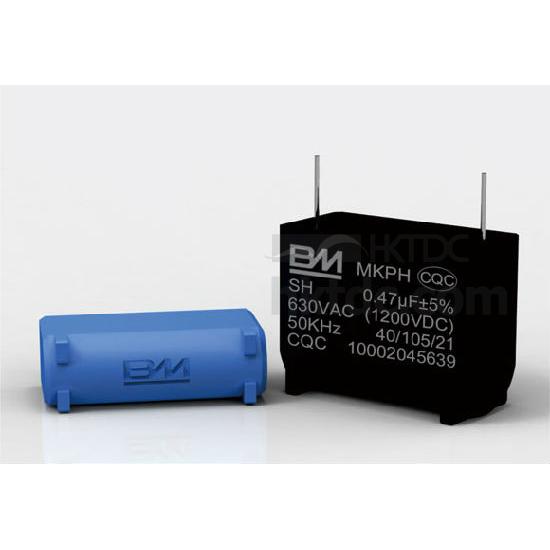

High Voltage Resonance Capacitor
分享此页面
品牌名称:
BM
描述
联络供应商
描述
  • High voltage resonance capacitor for induction cooker.
  • Made of temperature-resistant metalized polypropylene film.
  • Both side thickened metalized electrode.
  • Non-inductive construction.
  • DV/DT full inspection testing.
  • Full automatic production.
  • Good uniformity and high stability.
  • Specifically used in high frequency vibration return circuit of induction cookers and other induction heating equipment.
Technical specifications:
  • Reference standard: GB/T3984.1-2004, GB/T3984.2-2004.
  • Climatic category: 40/105/21.
  • Rated voltage: 1000V DC, 1200V DC, 1600V DC, 2000V DC.
  • Capacitance range: 0.01μF~0.9μF.
  • Capacitance tolerance: ±5% (J), ±10% (K).
  • Voltage proof between terminals: 2 x UR (V DC)/10s.
  • Between terminals and case: 2 x UR + 1000 (V AC)/60s (≥2000V AC).
  • Insulation resistance (20℃) between terminals: ≥30000S (100V DC, 60s).
  • Between terminals and case: ≥30000MΩ (100V DC, 60s).
  • Tangent of loss angle (20℃): ≤0.0007 (10 KHz).
  • Pulse rise time (DV/DT): 500V/μs max.
