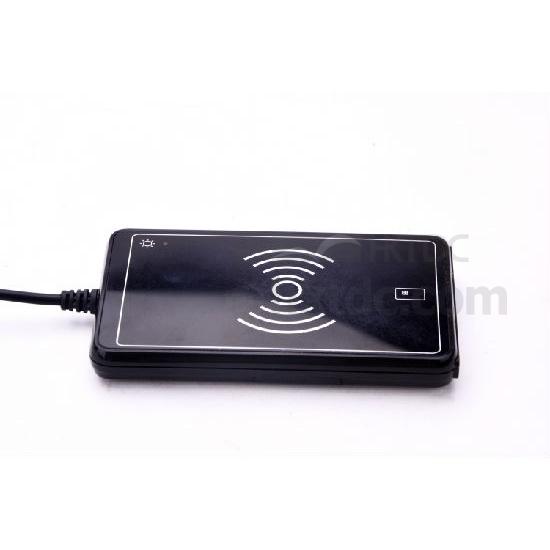

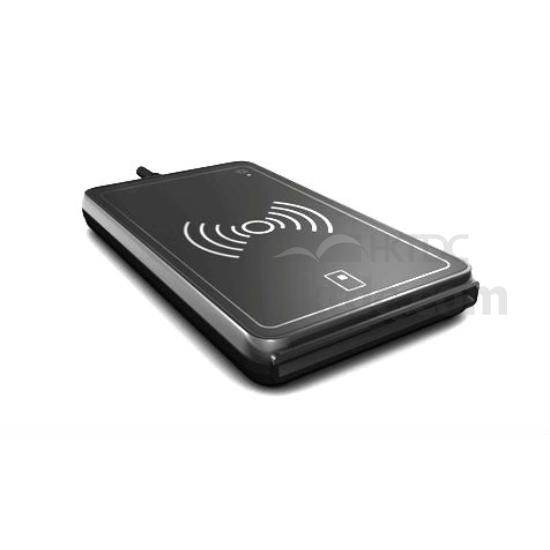

IC Card Reader

产品型号:

R10

品牌名称:

LENZ

颜色:

Black

尺寸:

L109 x W65 x H14mm

港口:

Xiamen

付款方式:

T/T L/C or Western Union, PayPal

最低订购数量:

是否有包装:

有

是否可定制:

是

插置类别:

外置

描述

联络供应商

CPU: 32 bits ARM.
SAM card: 1 SAM cassette, support PPS baud rate negotiation mode.
IC card: 1 semi-sunk IC card slot, comply with PBOC2.0 and EMV, support synchronic memory cards such as AT24, SLE4442 and SLE4428.
Non-contacted card:
Support IEC 14443 type A/B, Mifare® card, UL card and DESFire EV1 card reading and writing.
Comply with standards such as PayPass, payWave, PBOC2.0, building department IC card regulation.
Support the 13.56MHz mobile phone payment card issued by China mobile, China Unicom and China telecom.
Communication: support USB and RS232 communication mode.
Development environment: provide DLL under Microsoft's Windows and interface protocol.
Power supply: supply power through USB or through external 5V power.
Operating temperature: 0 to 50 °C, 10 to 90% RH.
Storage temperature: -20 to 70 °C, 5 to 95% RH.

Features:

1 SAM cassette, convenient for security control.
1 semi-sunk user cassette, support contacted IC card reading and writing.
Support communication through USB and serial port.
Supply power through USB, connected with a 5V power supply.
Provide complete interface protocol and code example for future development of the application program.
Support remote reading of the card.
The device is light and elegant, easy to carry.
Support hot plugging.
This table type contacted/non contacted IC card reader can be applied for mobile phone payment, financial/non-financial IC card payment, card tolling, daily payment and more.
Accept small order.
Small order minimum order quantity: 20piece(s).
Small order lead time: 5day(s).
