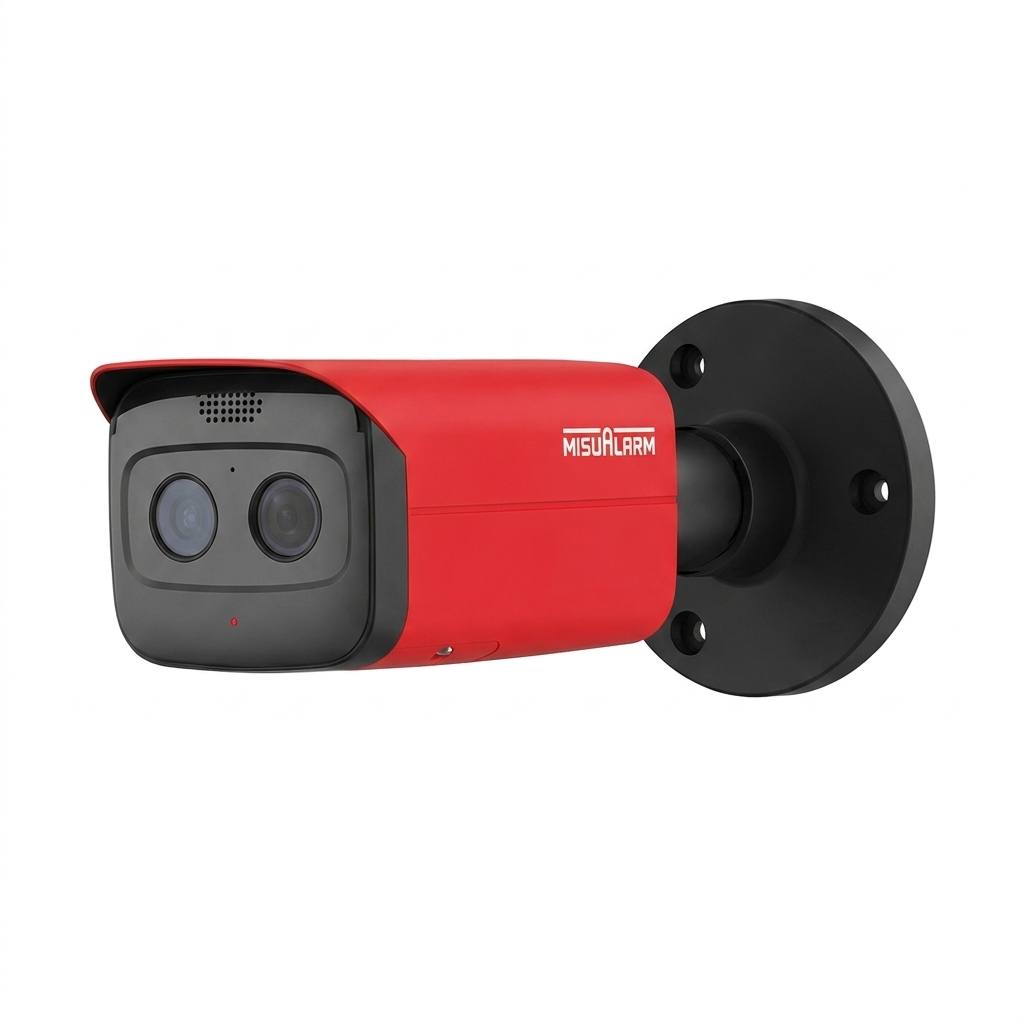

The AI Thermal Imaging Fire Detector combines high-sensitivity thermal imaging and 4MP visible-light imaging to provide reliable fire-point detection, temperature monitoring and visual verification in real time. Designed for industrial, commercial and outdoor applications, it helps detect abnormal heat and potential fire hazards at an early stage.

Featuring a 120 × 90 thermal detector with a spectral range of 8–14 μm and thermal sensitivity of <60 mK, the device supports fire-point detection and hot/cold spot monitoring. It can detect a 10 × 10 cm fire point at up to 20 m, with a recommended detection distance of 10 m.

The visible-light camera uses a 4MP 1/2.7-inch CMOS sensor with a resolution of up to 2688 × 1520, providing clear images for fire verification and remote monitoring. Built-in infrared illumination supports a night-viewing distance of up to 25 m.

The detector supports H.265/H.264/MJPEG video compression, ONVIF and RS-45 network connectivity, as well as alarm input/output and linkage functions. It can trigger sound and light alarms, relay outputs, email notifications and image capture when abnormal conditions are detected.

With DC12V/PoE power supply, IP67 protection and a wide operating temperature range of -40°C to +60°C, the device is suitable for demanding indoor and outdoor environments.

Key Features

• Dual-spectrum monitoring: Thermal imaging + 4MP visible-light camera
• High-sensitivity thermal detector: 120 × 90 resolution, NETD <60 mK
• Fire-point detection: Up to 20 m detection distance
• Temperature measurement: -10°C to +200°C
• Hot/cold spot tracking: Automatically tracks the hottest point in the image
• 12 thermal color palettes: Supports multiple visualization modes
• 4MP visible imaging: Up to 2688 × 1520 resolution
• Intelligent alarm linkage: Sound/light alarm, relay output, email and image capture
• H.265 video compression: Efficient bandwidth and storage management
• ONVIF compatible: Suitable for integration with video surveillance systems
• DC12V / PoE: Flexible installation and power options
• IP67 protection: Designed for harsh outdoor and industrial environments

Typical Applications

Suitable for industrial fire prevention, warehouses, factories, power facilities, energy infrastructure, commercial buildings, equipment rooms, logistics centers, outdoor facilities and other areas requiring continuous temperature and fire monitoring.
