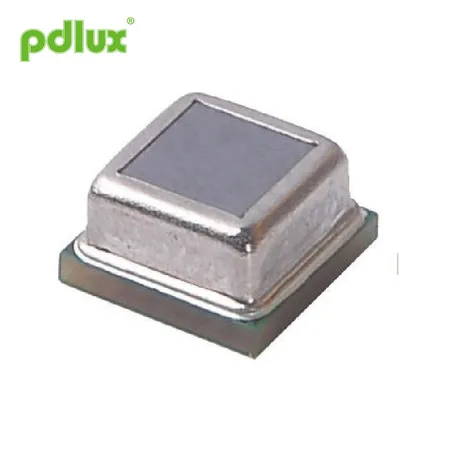

Infrared Motion Sensor SMD

美元 $0.47 - 美元 $0.51

生产所需时间:

35 日

型号编号:

PD-PIR-262LA-D

品牌:

MOQ:

500pcs

Trade Terms:

FOB Ningbo

描述

联络供应商

Parameter	Symbol	Min	Typ	Max	Unit	Note
Supply Voltage	V DD	2.2	3	3.7	V
Working current	I DD	9	9.5	11	μA
Sensitivity threshold	V SENS	90		2000	μV
Output REL
Low output current	I OL	10			mA	VOL<1V
Output high current	I OH			-10	mA	VOH>(VDD-1V)
REL low level output lock time	T OL		2		s	Not adjustable
REL high level output lock time	T OH	2		3600	s
Enter SENS/ONTIME
Voltage input range		0		VDD/2	V	The adjustment range is between 0V and VDD/2
Input bias current		-1		1	μA
Enable OEN
Input low voltage	V IL	Between 0.8V-1.2V is the hysteresis area		0.8	V	OEN voltage high to low threshold level
Input high voltage	V IH	1.2			V	OEN voltage low to high threshold level
Enter the current	I I	-1		1	μA	V ss ＜ V IN ＜ V DD
Oscillators and filters
Low-pass filter cutoff frequency				7	Hz
High-pass filter cut-off frequency				0.44	Hz
The oscillator frequency on the chip	F CLK			64	kHz
