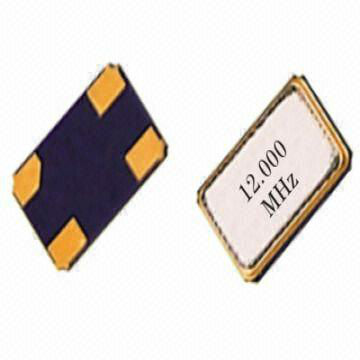

JFR Quartz Crystal SMD 4225
生产所需时间:
5 日
产品型号:
SMD 4225
品牌名称:
JFR
颜色:
Black + Yellow
尺寸:
4.2 X 2.5 mm
港口:
Yantian, Shenzhen
付款方式:
T/T, L/C, Paypal, Western Union
最低订购数量:
1000
是否有包装:
有
是否可定制:
是
描述
联络供应商
描述
Frequency Range:12.000MHz to 50.000MHz
Load Capacitance(CL):Series, 8pF, 9pF, 12pF, 18pF, 20pForspecify
Frepuency Tolerance (at 25°C) :+/-10ppm+/-50ppm orspecify
Operating TemperatureRange:-10°C+60°C(standard),-20°C+70°C,-40°C85°C,orSpecity
Frepuency Stability Over Operating Temperaturerange:+/-10ppm+/-50ppm or specify
Storage Temperatue Range: -55°C to +125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10uW100uW
Aging @25°C1 st year(Max):+/-3ppm/year
Shock Resistance:Drop test of 3 times on 2mm stainless platefrom 75cm height
Load Capacitance(CL):Series, 8pF, 9pF, 12pF, 18pF, 20pForspecify
Frepuency Tolerance (at 25°C) :+/-10ppm+/-50ppm orspecify
Operating TemperatureRange:-10°C+60°C(standard),-20°C+70°C,-40°C85°C,orSpecity
Frepuency Stability Over Operating Temperaturerange:+/-10ppm+/-50ppm or specify
Storage Temperatue Range: -55°C to +125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10uW100uW
Aging @25°C1 st year(Max):+/-3ppm/year
Shock Resistance:Drop test of 3 times on 2mm stainless platefrom 75cm height
