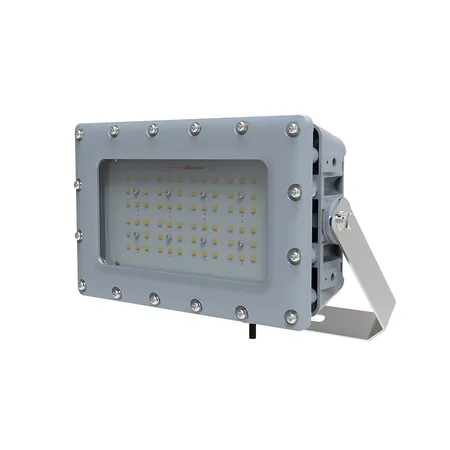

KHJ Lighting-Tank Explosion-proof LED Flood Light
品牌:
KHJ
描述
联络供应商
描述
lmportant Specification:
| Certificate | ATEX, IECEx , CE, RoHS |
| Classification | Group II,Zone 1 &21 and 2&22 |
| Ex Mark | Ex db, Ex tb |
| IP Grade | IP66 |
| Rated power | 80W/100W/120W (single lamp) 160W/200W/240W(two lamps) 240W/300W/360W(three lamps) 320W/400W/480W(four lamps) |
| Voltage | 100-277VAC , 347-480VAC and 20-30VAC 141-391VDC,491-679VDC |
| Ambient Temperature | -40°C~+55°C(normal),-20°C~+55°C(Emergency) |
| Emergency function | Optional |
| Luminaire Efficacy | Up to 152lm/w |
| Power factor | >0.98 |
| THD | <10% |
| Weight | 8.3kg(80-120W), 17kg(160-240W)26kg(240-360W), 36kg(320-480W) |
| Size | 332*212*142mm(80-120W) 332*426*142mm(160-240W) 332*640*142mm(240-360W) 671*426*142mm(320-480W) |
| Enclosure | Aluminium |
| Color | Grey RAL 7040 |
| Protective cover | Tempered glass, stand 7J impact |
| Cable Entry | 2 X NPT 3/4’’ (M20*1.5 , M25*1.5 are optional) |
