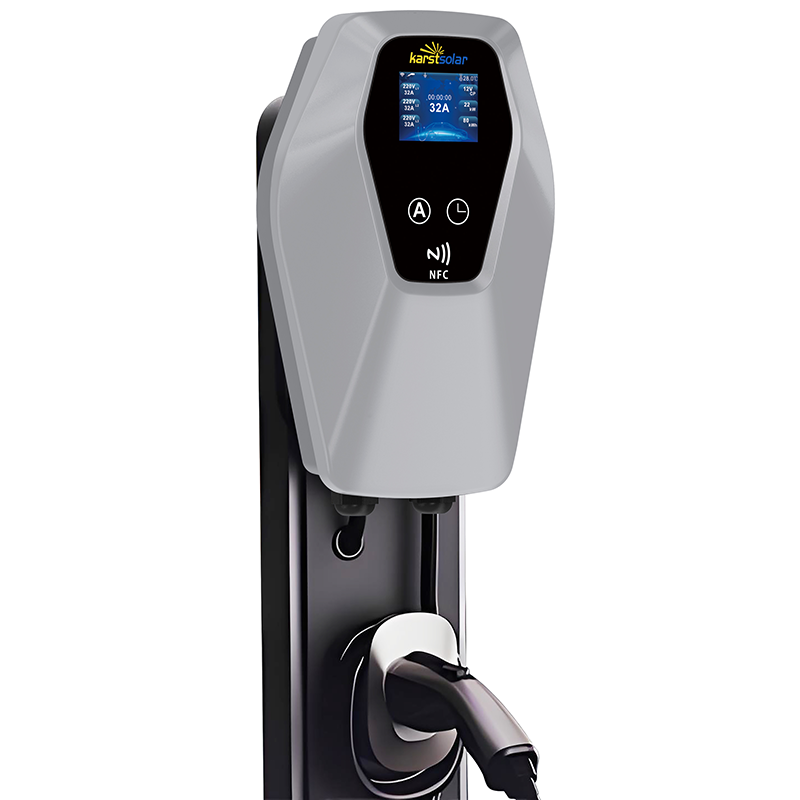

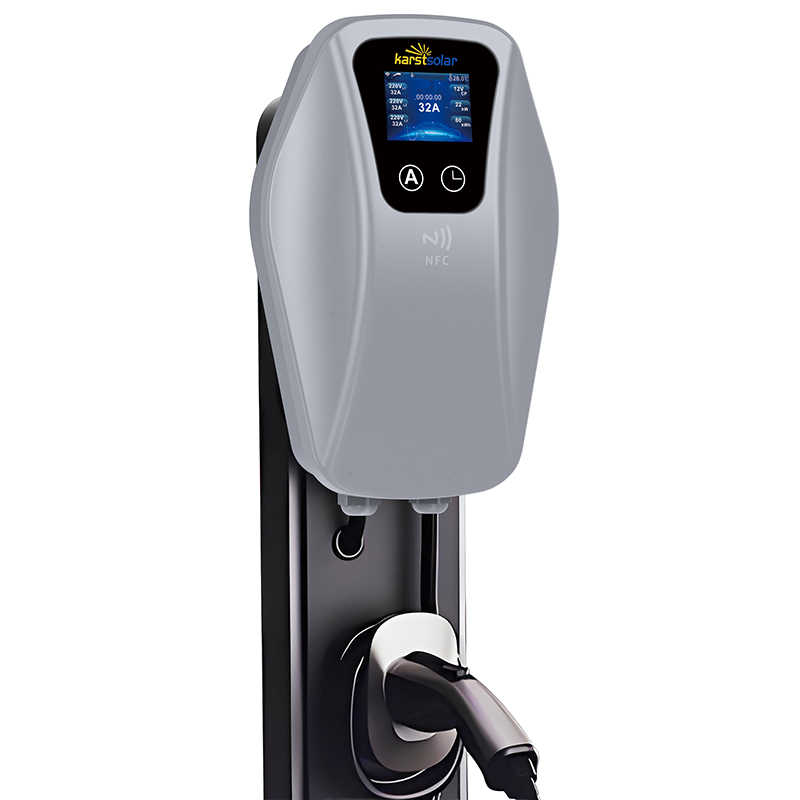

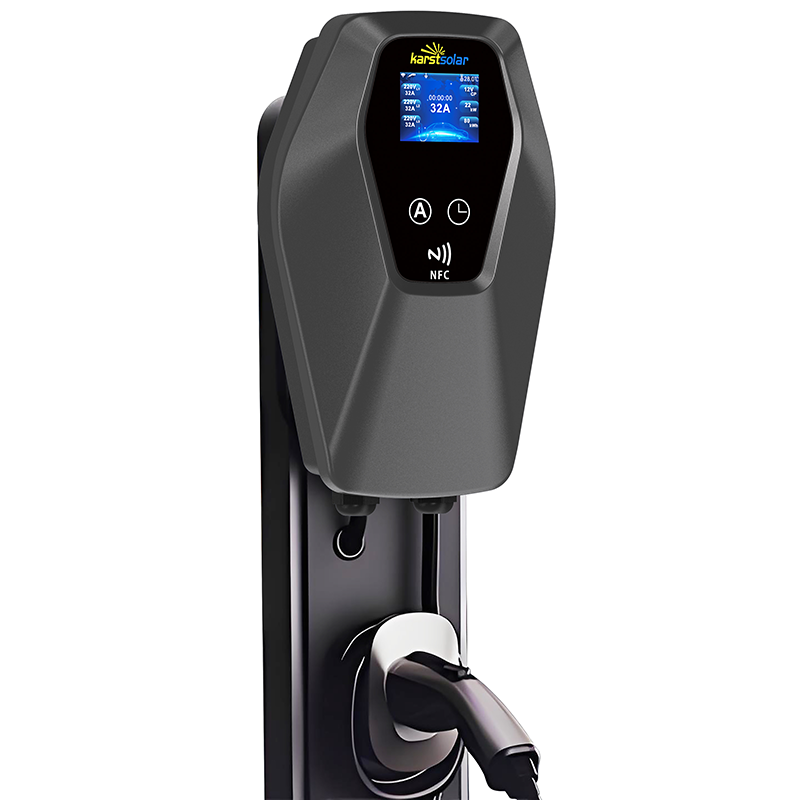

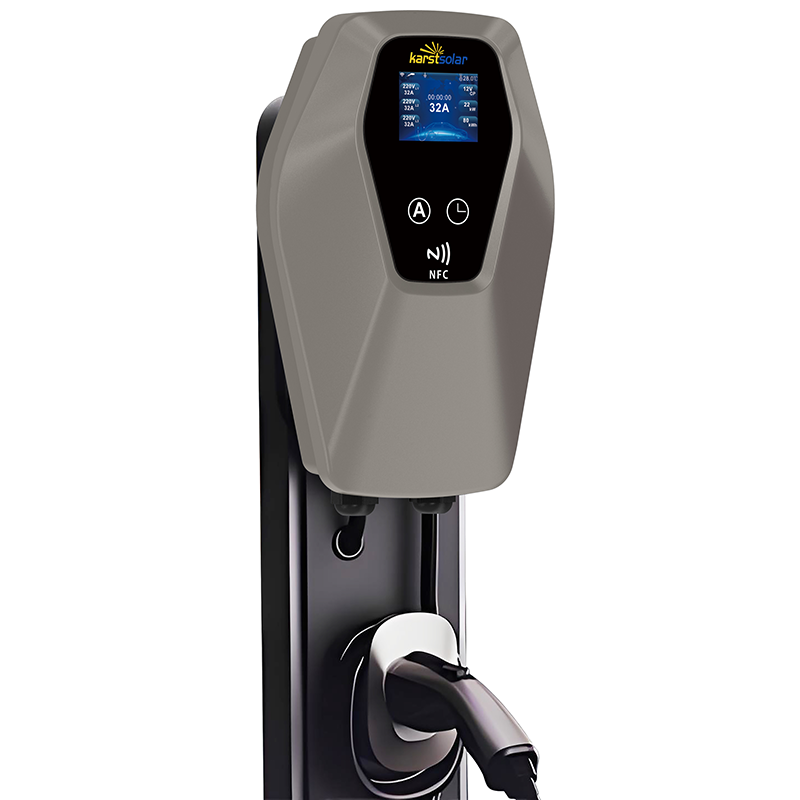

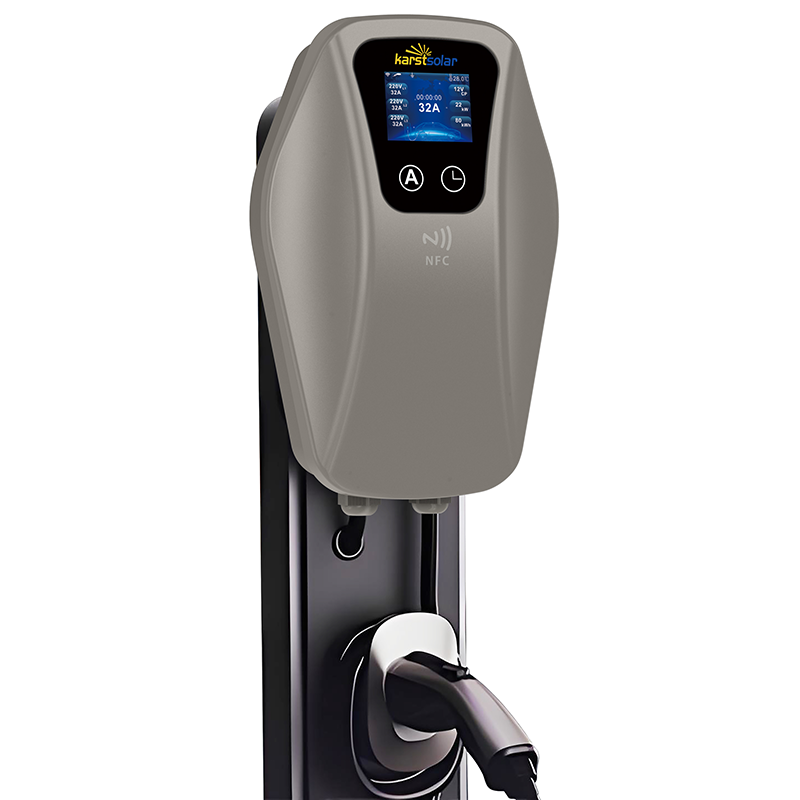

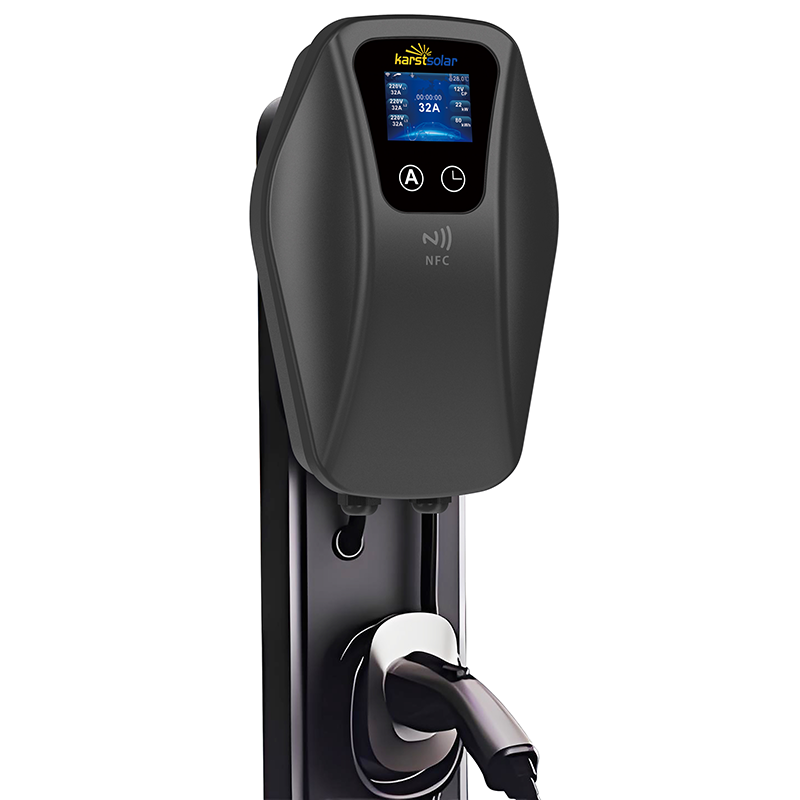

Karstsolar Wall mounted 22KW EV Charger for Germany UK New energy electric vehicles
美元 $153.00 - 美元 $159.00
生产所需时间:
15-30 日
运送方式:
FOB China
品牌:
Karstsolar
型号编号:
KSEVC-WE-22KW
3G/4G/Ethernet:
Optional
Energy Meter:
Yes
Emergency Stop:
Yes
Minimum Order Quantity:
300 sets
描述
联络供应商
描述
Datasheet | EU Standard | |||
Model | KSEVC-WE-7KW | KSEVC-WE-11KW | KSEVC-WE-22KW | |
Rated Power | Rated Power | 7KW | 11KW | 22KW |
Input | Power Supply | L+N+PE | L1+L2+L3+N+PE | L1+L2+L3+N+PE |
Rated Voltage | 230V AC | 400V AC | 400V AC | |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
Output | Output Voltage | 230V AC | 400V AC | 400V AC |
Maximum Current | 32A | 16A | 32A | |
Maximum Power | 7KW | 11KW | 22KW | |

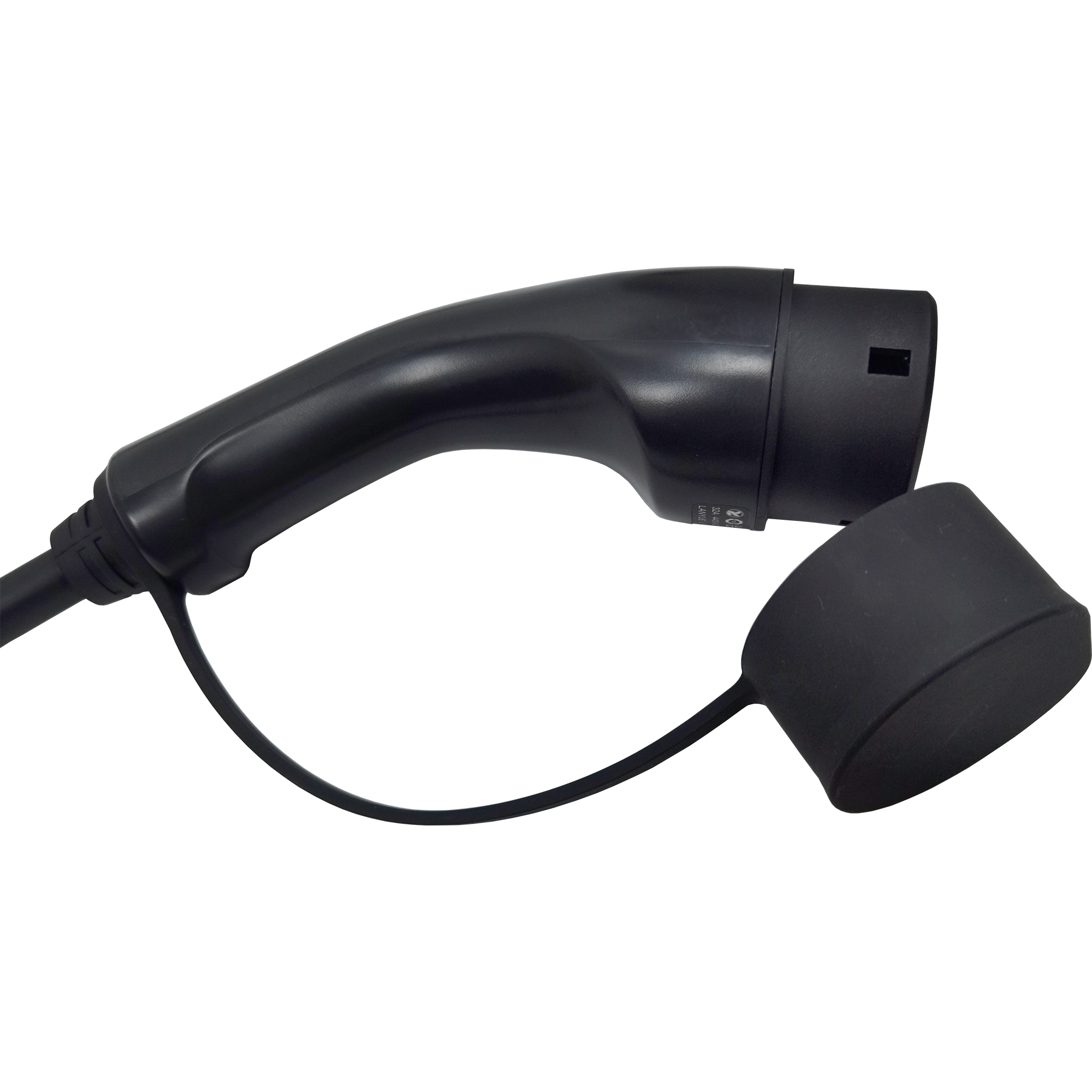

Charge Connector | Type 2 socket | Type 2 socket | Type 2 socket | |
User Interface | Enclosure | plastic | Galvanized steel | Galvanized steel |
Front Panel | plastic | Temper glass | Temper glass | |
LCD Display | 4.3inch | 4.3inch | 4.3inch | |
RFID Reader | NFC | NFC | NFC | |
Communication | Start Mode | Plug/RFID card | Plug/RFID card | Plug/RFID card |
Emergency Stop | √ | √ | √ | |
Energy Meter | √ | √ | √ | |
Communication （optional） | Wifi | √ | √ | √ |
TUYA | √ | √ | √ | |
Ethernet | √ | √ | √ | |
3G/4G | √ | √ | √ | |
Safety | OCPP 1.6 Json | √ | √ | √ |
RCD | 30mA Type A + 6mA DC | 30mA Type A + 6mA DC | 30mA Type A + 6mA DC | |
Ingress Protection | IP55 | IP55 | IP55 | |
Impact Protection | IK08 | IK08 | IK08 | |
Electrical Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection,Cp protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection | |
Certification | CE | CE | CE | |
Certification Standard | IEC 62196 Type2 | EN/IEC 61851-1: 2017 EN/IEC 61851-21-2: 2018 | EN/IEC 61851-1: 2017 EN/IEC 61851-21-2: 2018 | |
Environment | Warranty | 2 years | 2 years | 2 years |
Installation | Wall-mount/Pole-mount | Wall-mount/Pole-mount | Wall-mount/Pole-mount | |
Work Temperature | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | |
Work Humidity | 5%~95% | 5%~95% | 5%~95% | |
Work Altitude | <2000m | <2000m | <2000m | |
Package | Product Dimension | 400*210*100mm (H*W*D) | 313*246*100mm (H*W*D) | 313*246*100mm (H*W*D) |
Package Dimension | 500*300*160mm (H*W*D) | 460*400*170mm (H*W*D) | 460*400*170mm (H*W*D) | |
Net Weight | 3.5kg | 3.5kg | 3.5kg | |
Gross Weight | 4kg | 4kg | 4kg | |
External Package | Carton | Carton | Carton | |
