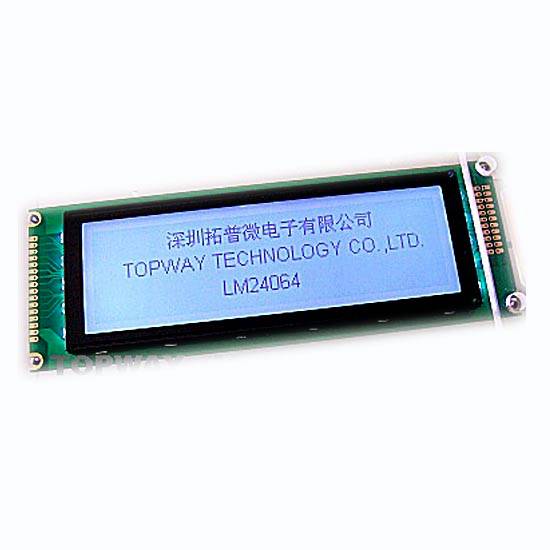

This LCD module features STN, positive and transflective display modes. The display resolution is 240 x 64 dots. It is an industrial product for the manufacture of various AV products.

• White LED backlight
• Driver condition: 1/64 duty, 1/9 bias.
• Viewing angle: 6H.
• Outline dimension: 180 x 62 x 13.8.
• Operating voltage: 5.0V.
• Operating current: 7.0mA.
• Available in different designs.
