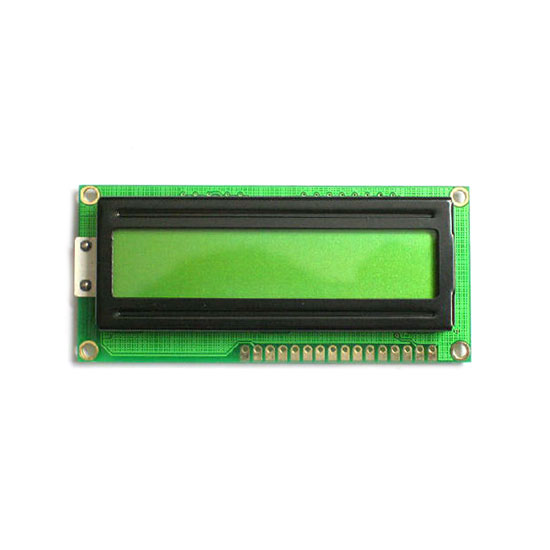

This is an LCD module that is engineered to deliver reliable performance with high stability. It is equipped with an ST7066 IC which shows two lines with a total of 16 characters. This LCM is manufactured under strict QC to promise quality you can rely on.

• 16 x 02 modules.
• IC ST7066: show two lines with a total of 16 characters.
• Unit module dimension: 80.0 x 36.0 x 13.6 (max.) mm.
• View area: 66 x 16.0 mm.
• Active area: 56.2 x 11.5 mm.
• Dot size: 0.55 x 0.65 mm.
• Dot pitch: 0.6 x 0.7mm.
• Character size: 2.95 x 5.55mm.
• Character pitch: 3.55 x 5.95mm.
• LCD type STN positive.
• Y-G, transflective duty: 1/16.
• View direction: 6 o'clock.
• Backlight type: yellow-green.
• Supply voltage for logic: VDD-VSS - 4.7 5.0 5.3V.
• Supply voltage for LCD: VDD-V0 Ta=-20℃.
• Ta=25℃ 3.6 3.7 3.8 V Ta=70℃.
• Supply LCM current ILCM: 1.2mA.
• Supply voltage for B/L VLED: 4.1V.
• Supply LED current ILED: 140mA.
