LED Card 28W for Streetlight 24vdc 3000lm

生产所需时间:

20 日

产品型号:

LPINTE-LV2412

品牌名称:

LPILED

颜色:

White

尺寸:

131 x 74 x 2mm

付款方式:

T/T

最低订购数量:

500 piece(s)

是否有包装:

有

是否可定制:

是

证书:

符合RoHS指令

阔度 (毫米):

长度 (毫米):

131

描述

联络供应商

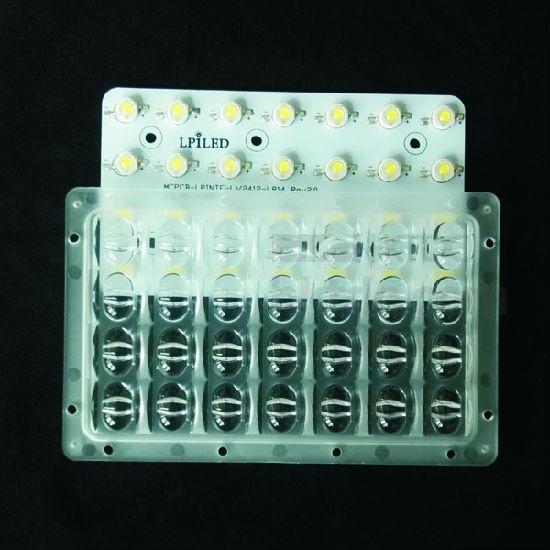

28W LED module for street lights SP90 LU1, LU2, LU4, LU6, LU8
Size: 131 x 74 x 1.6mm
Aluminum MCPCB
LEDs: USA Bridgelux LED chip 45mil, package in mainland China, 120~180lm (CC 350~700mA)
LEDs quantity: 28pcs
LEDs array #1: 28pcs series
Voltage: 90~96V DC
CC: 320~650mA to get 1~3w according to your heat sink capacity
LEDs array #2, 7pcs series 4 parallels
Voltage: 20-24V DC
CC: 1.25~2.6A to get 1~3w according to your heat sink capacity

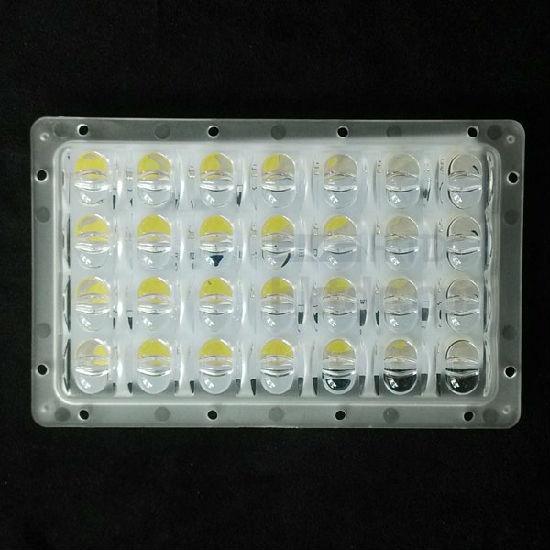

LED lens: PMMA optics
Beam angle: the horizontal axis 140°, the vertical axis 60°
O-ring IP65
