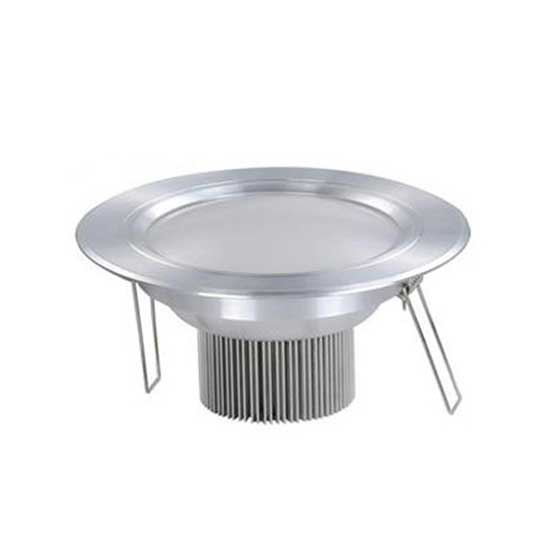

This LED downlight can be used in assorted commercial and household lighting projects. Fitted with high-performance SMD LEDs, the downlight boasts high luminous output and low energy consumption. The recessed design makes it easy to be mounted on the ceiling.

• Diameter: 194mm
• Length: 79±0.5mm
• LED type: SMD 3014 LED.
• LED quantity: 84 pieces.
• CRI(Ra): ≥80.
• Material: aluminum and PMMA.
• Shell type: milky.
• Working voltage and current: AC 36V-42V, DC 210mA.
• Working frequency: 50-60Hz.
• Power: 10±1W.
• Power factor(PF): ≥90.
• Color: warm white/white.
• Color temperature(CCT): 3,000-3,500K (warm white), 6,000-7,000K (white).
• Luminous flux: 700lm±10% (warm white), 750lm±10% (white).
• Hole dimension: 153mm.
• LED angle: 120.
• IP Level: IP41.
• Working environment temperature: -10 to 55℃.
• Working environment humidity: 0-80 (no condensation).
• Certification: CE/RoHS.
• Life span: 50,000 hours.
• Packaging standard: 10pc/carton.
• Adopting energy-saving and environment-friendly SMD LEDS of high intensity and low power.
• With no UV, IR, thermal radiation and mercury.
• Energy-saving.
• 90% energy saving compared to incandescent lamp and 60% to fluorescent lamp.
• Encapsulation with special techniques.
• Firm and durable.
• Lifespan up to 50,000 hours.
• As cold light source, never causing shining material fading.
• Adopting high-graded PC shells, milk and transparent ones for your selection.
• Making the light soft and comfortable and the light effect high.
• Good material and refined procedure, all plastic materials are imported from overseas with the ability to endure high temperature and high intensity.
• High CRI, showing directly and clearly.
• Color temperature optional.
• Fast switch on, up to full luminous once turned on.
• Solid light source, better shock resistance, easy to be transported and installed, safe.
• Directional light makes it easy to control the light, effectively improve the efficiency of lighting systems.
• Beautiful appearance.
• Simple and reliable structure.
• Perfect combination of plastic and aluminum material.
• A higher safety factor, closer to customer’s need and feel while adding more technology and user-friendly design elements.
• Product size and application places: hotels, stores, factories, schools, offices, residential, hospitals, advertising boards and so on.
• Switch off power before any operation.
