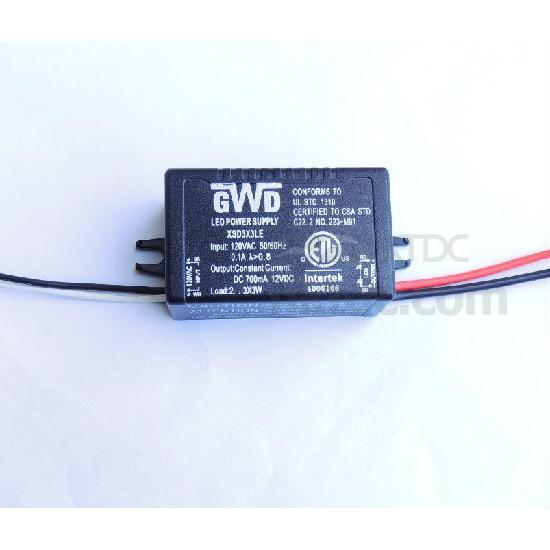

LED Driver
分享此页面
生产所需时间:
25 日
产品型号:
XSD3X3LE
品牌名称:
GWD
颜色:
Black
尺寸:
74 x 34 x 23MM
港口:
Guangzhou
付款方式:
T/T
最低订购数量:
1,000 piece(s)
描述
联络供应商
描述
Opt for this reliable LED driver to work with different LED lighting equipment. It is professionally engineered to deliver excellent performance and can greatly enhance lighting efficiency. Compact in size, it can also be easily installed and replaced.
Compact in size.
  • Input power: 120V AC, 50/60Hz, 0.1A.
  • Output power: 12V DC, 700mA.
  • Wattage: 3 x 3W.
  • Deliver excellent performance.
  • Can be easily installed and replaced.
  • Able to drive a broad range of LED lighting equipment.
  • Can greatly enhance lighting efficiency.
  • Package: yes.

Main features:
  • Constant current.
  • With SCP, OTP and OVP function.
  • Operating temperature -40℃~60℃.
  • Comply with safety regulations of UL8750, CQC and CE.
  • Comply with EMC standard.
  • MTBF: 550000 hours.
  • Timing and brightness dimmer control or remote intelligent dimming.
  • Stable operation, high reliability, multifunction protection.
  • Beautiful and practical.
  • Model, input voltage, constant current, rated load, Ta, Tc, typical efficiency, standby power, power factor, short circuit protection, protection class, dimension (LmmxWmmxHmm).
  • XSD3*3LE 120V~50/60Hz 6.5-12VDC 700mA 2-3*3W 50℃ 85℃ >75% <0.1W >0.82 √ IP 65 74x34x23.
  • XSD7*1LE 120V~50/60Hz 20-25VDC 350mA 5-7*1W 50℃ 85℃ >75% <0.1W >0.82 √ IP 65 74x34x23.
  • XSD12*1LE 120V~50/60Hz 35-42VDC 350mA 10-12*1W 50℃ 85℃ >75% <0.1W >0.82 √ IP 65 74x34x23.
