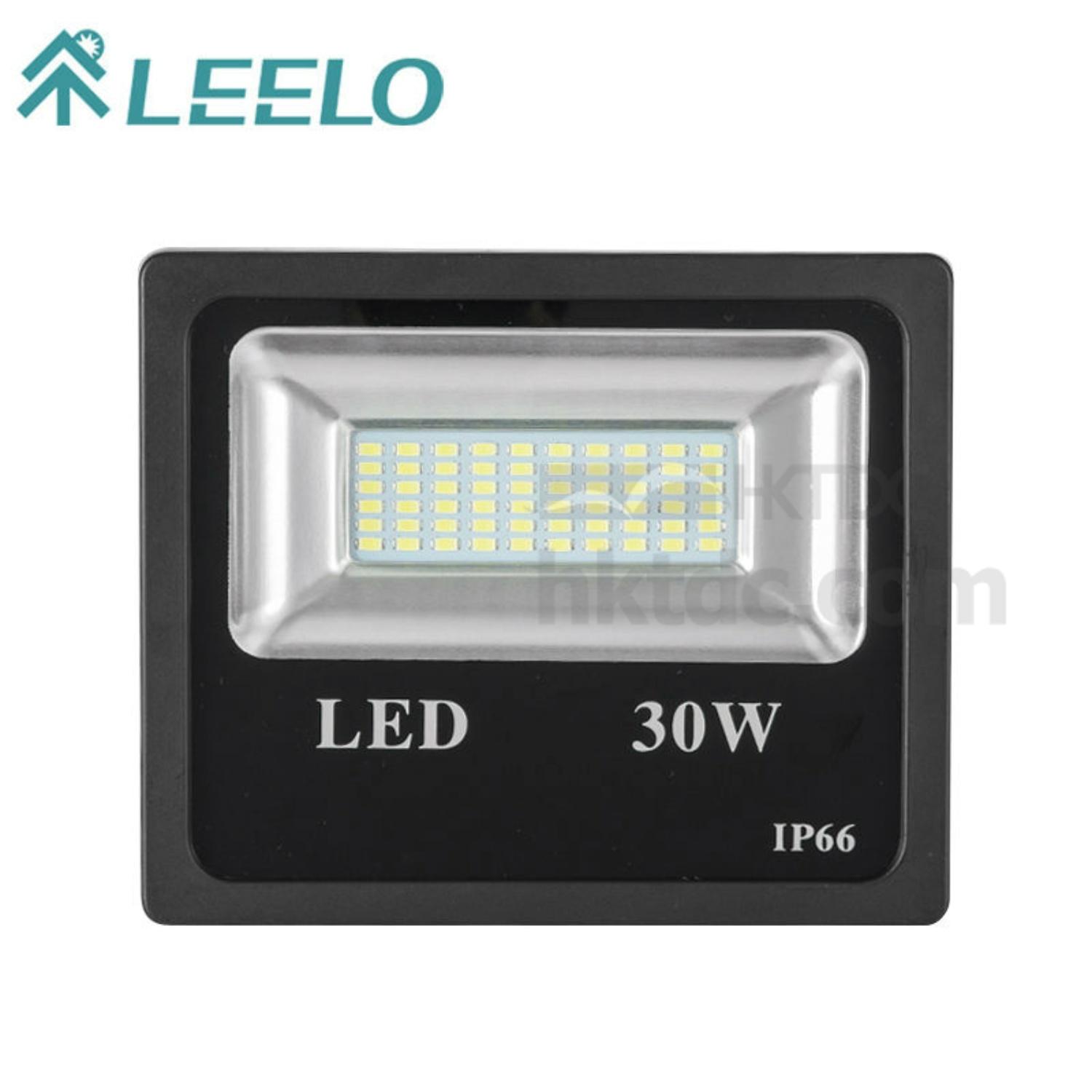

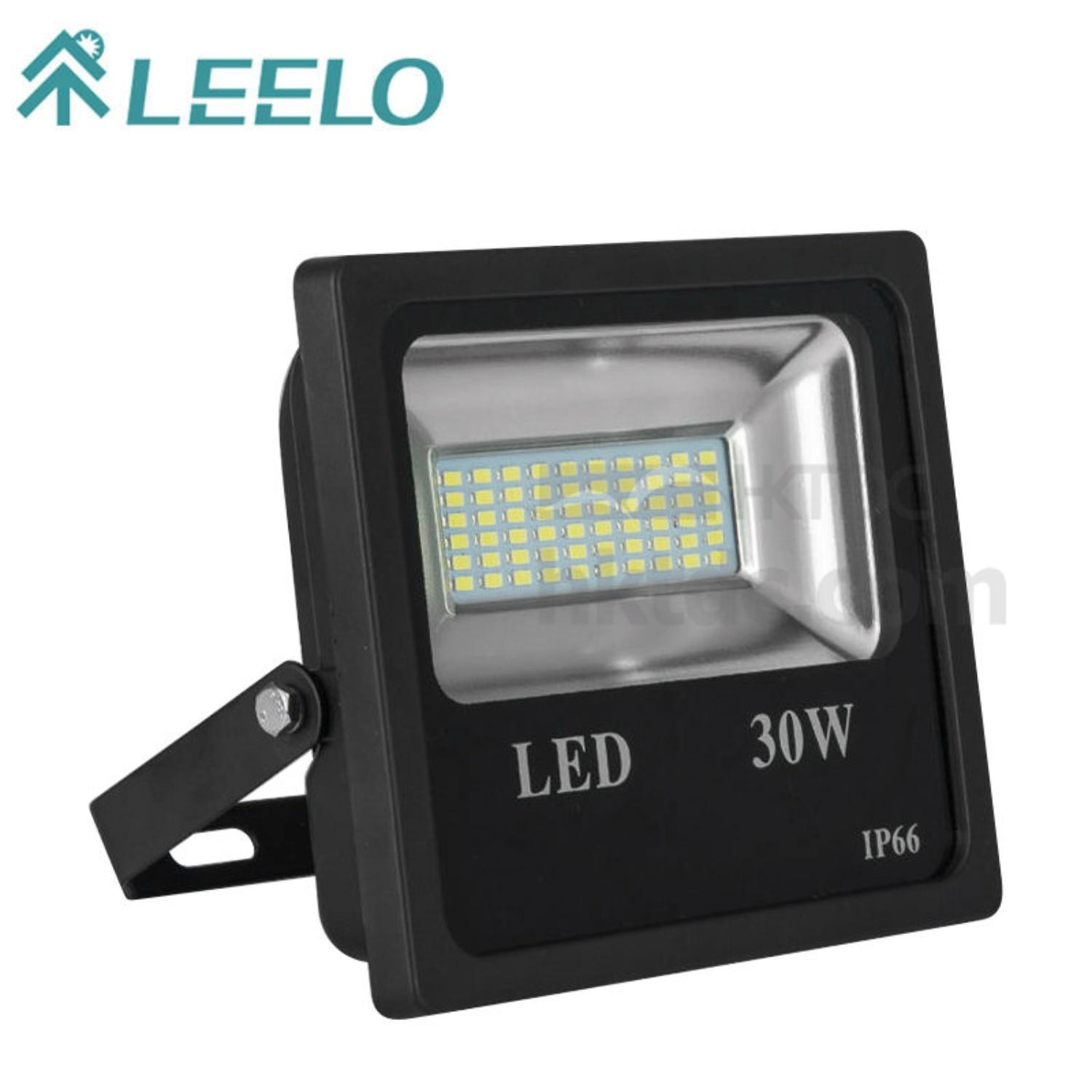

30W multifunctional flood light housing (made in China)
Model no.: LEM30W
Dimension of body(LxWxT): 185mm x 155mm x 44mm
thickness of radiating: fin thick
IP rating: IP66
Housing material: aluminum ADC12
Panel type: metal or aluminum
Color: Black/White/Gray
Beam angle: 120°
Working temperature: -20°C-50°C
SMD reflectors hole size: 90mm x 30mm
Application :suitable for SMD
Standard configuration: light body + tempered glass + reflector + waterproof rubber ring + holder + several screws
Notes: The product is only fittings not finished product, couldn't be light up. If you need finished product, you need driving power and LED chip. The product need to be assembled by professional. Please tear off the protective film from the reflector before make assembly.
