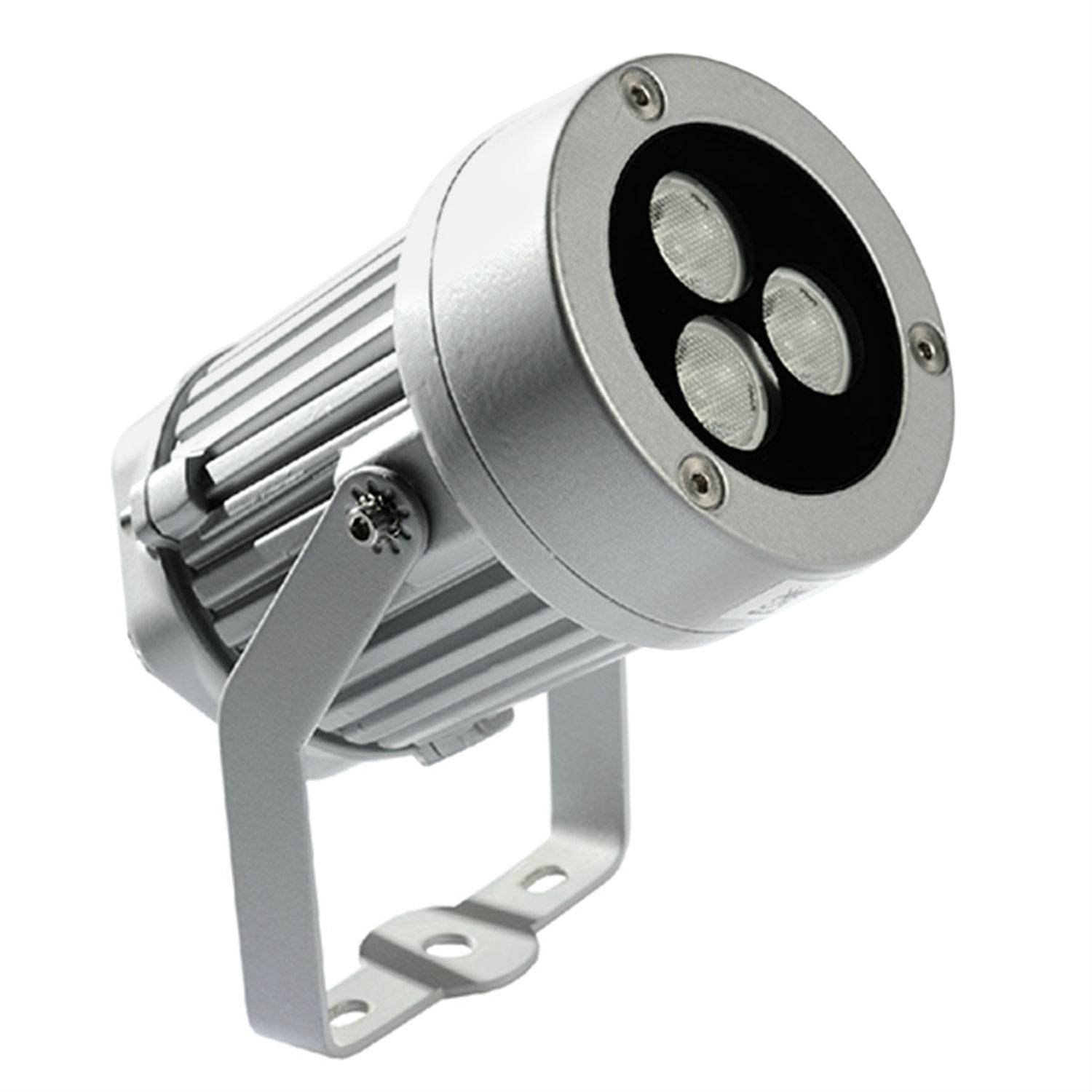

LED Floodlight
分享此页面
产品型号:
F1013
品牌名称:
Roled
颜色:
Red,Green,Blue,Amber,White,Warm whit
尺寸:

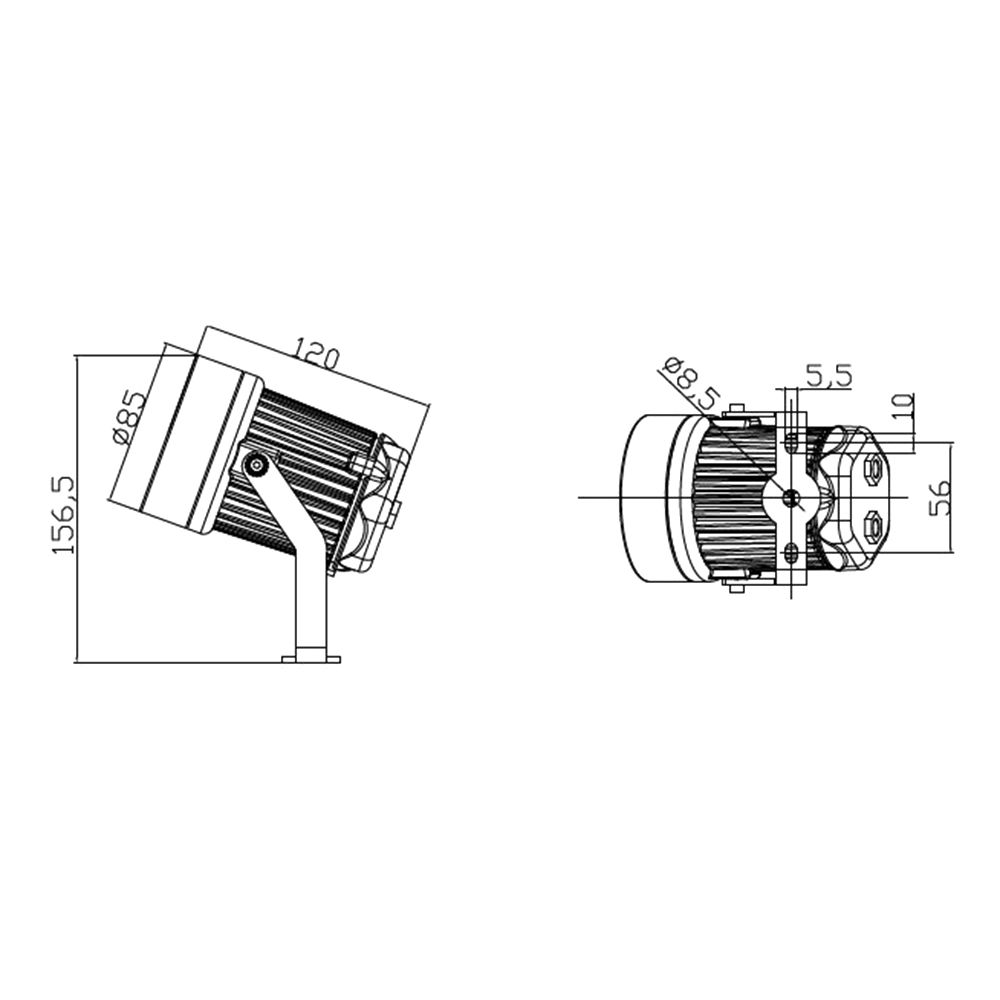

refer to the dimension
港口:
Shanghai
付款方式:
T/T before delivery
最低订购数量:
1-50 piece(s)
防护等级:
IP66
可定制:
电压(伏):
Universal voltage
证书:
欧盟CE认证
光源:
LED floodlight
主体物料:
电源:
交流电
样式:
现代
包含灯泡:
包含
适用环境:
建筑物外墙, 广场
描述
联络供应商
描述
  • Waterproof:
  • Adopt new patent of air filter device for preventing moisture
  • condensation inside the luminaire. (new model patent No.:
  • ZL200720068796.X;Outlook patent No.:ZL200730075322.3)
  • Anti-static:Special electronic component and circuit against static (ESD) and surge has been adopted according to the standard of IEC61000-4(level 4).Max.(Peak Current)up to 3000 A(8/20μs).
Universal voltage:100~240VAC±10%.
  • The advantages are as followings:
  • 1. It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation, universal voltage is also good for the stability of LED brightness and life span.
  • 2. It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.
configuration:
  • 1. Integrated heating solution to guarantee the LED luminous
  • efficiency and life span.
  • 2. Imported silicon rubber material is adopted for waterproof
  • gasket.
Installation:U shape bracket,easy for installation.
Technical parameter
  • Type F1013A/B series (Professional)
  • LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode(LED)
  • Single LED Wattage 1 W/3W
  • LED lifespan 50,000 hours
  • LED quantity 3 pcs
  • LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white
  • LED color (color changing) Red、Green、Blue

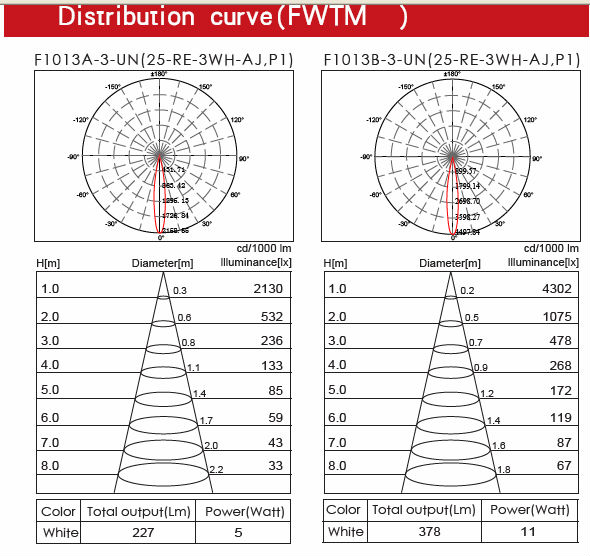

  • Beam angle 15°/25°/40°/60°
  • Housing Die-cast aluminum , silver gray powder paint with high corrosion resistance.
  • Glass material 6mm thickness tempered glass, surface color Jasper black
  • Power input 100~240VAC±10%, 50/60Hz
  • LED driver 350mA/700mA constant current driver
  • Power consumption 5W/11W
  • Anti-static IEC61000-4(Level 4)
  • Ingress protection IP66
  • Classification Ⅰ
  • Power cable 3×1. 0mm2 rubber cable
  • Signal cable double screen for 4 pairs signal cable STP-5E
  • Control DMX512 Compatible(1990)
  • Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
  • Power Factor(PF) 0.66(A)/ 0.93(B)
  • Inrush Current(MAX) 42A
  • Net weight 1. 2 KG
