configuration:

• 1. Integrated heating solution to guarantee the LED luminous
• efficiency and life span.
• 2. Imported silicon rubber material is adopted for waterproof
• gasket.

Installation:U shape bracket, easy for installation.
Technical parameter

• Type F1014A/B series (Professional)
• LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode(LED)
• Single LED Wattage 1 W/2W
• LED lifespan 50,000 hours
• LED quantity 18 pcs
• LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white
• LED color (color changing) Red、Green、Blue

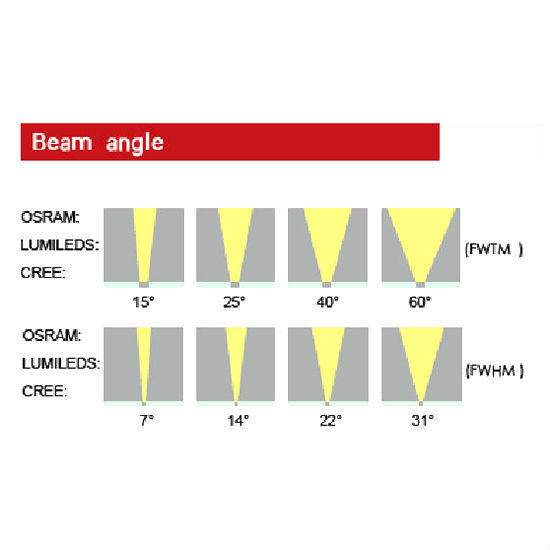

• Beam angle 15°/25°/40°/60°
• Housing Die-cast aluminum , silver gray powder paint with high corrosion resistance.
• Glass material 8mm thickness tempered glass, surface color Jasper black
• Power input 100～240VAC±10%, 50/60Hz
• LED driver 350mA/500mA constant current driver
• Power consumption 22W/40W
• Anti-static IEC61000-4（Level 4）
• Ingress protection IP66
• Classification Ⅰ
• Power cable 3×1. 0mm2 rubber cable
• Signal cable double screen for 4 pairs signal cable STP-5E
• Control DMX512 Compatible(1990)
• Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
• Power Factor(PF) 0.94
• Inrush Current(MAX) 43A
• Net weight 8.2 KG
