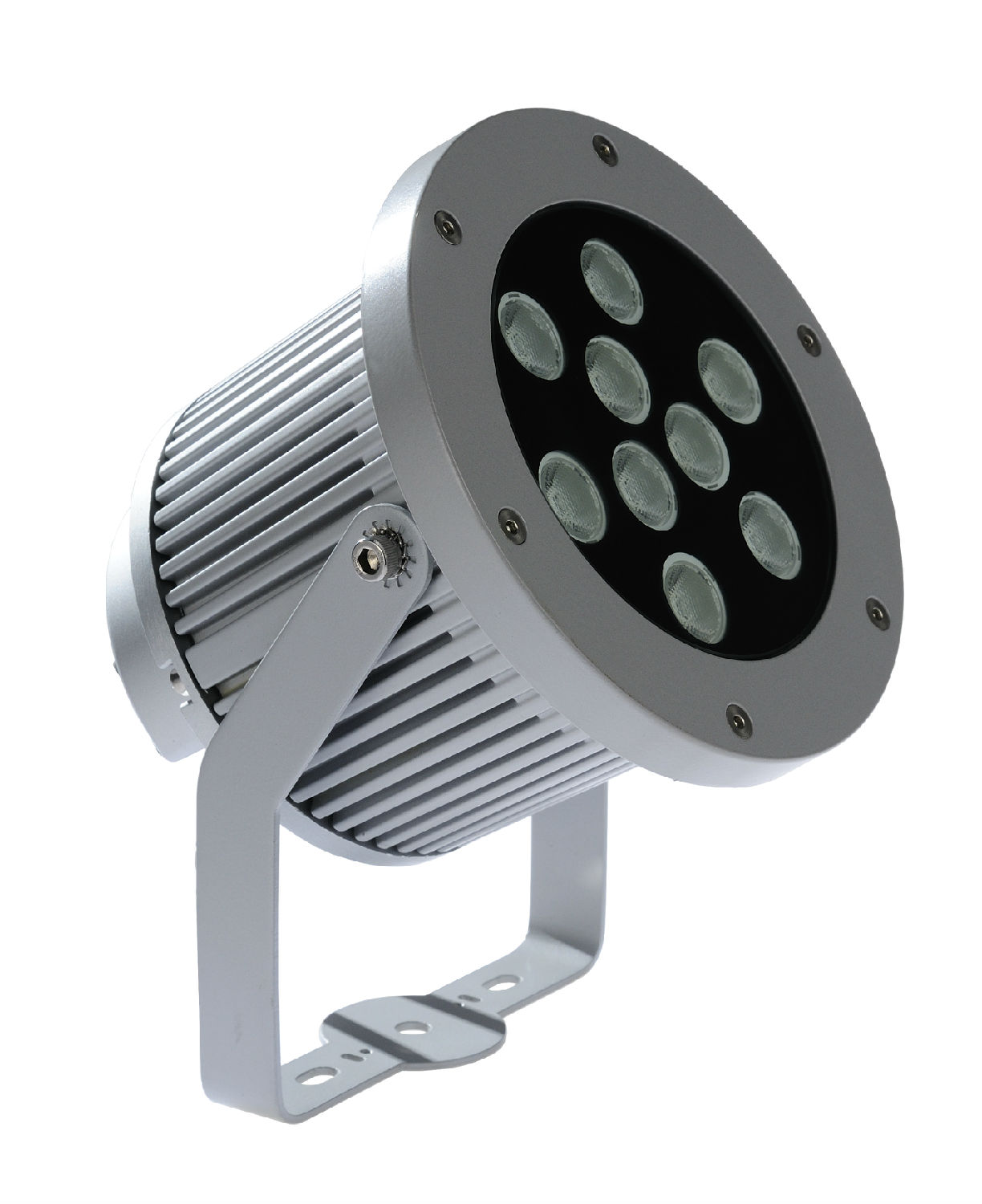

LED Floodlight
产品型号:
F1016
品牌名称:
Roled
颜色:
White ,warm white, neutral white
尺寸:

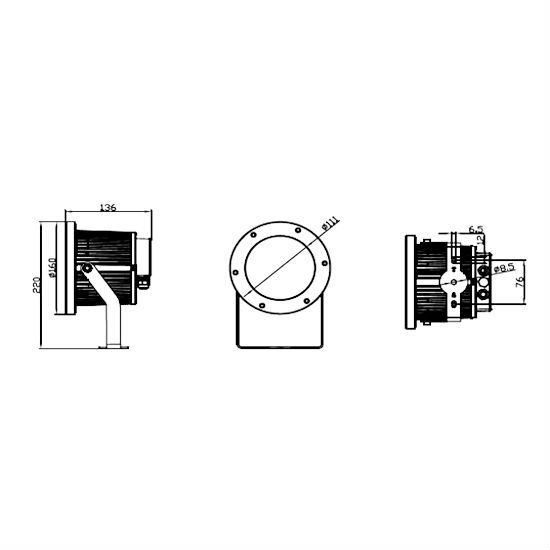

see the dimension
港口:
Shanghai
付款方式:
T/T
最低订购数量:
1-50 piece(s)
防护等级:
IP66
可定制:
是
电压(伏):
Universal voltage
证书:
欧盟CE认证
光源:
LED floodlight
主体物料:
铝
电源:
交流电
样式:
现代
表面处理:
silver gray powder paint with high corrosion resistance.
包含灯泡:
包含
适用环境:

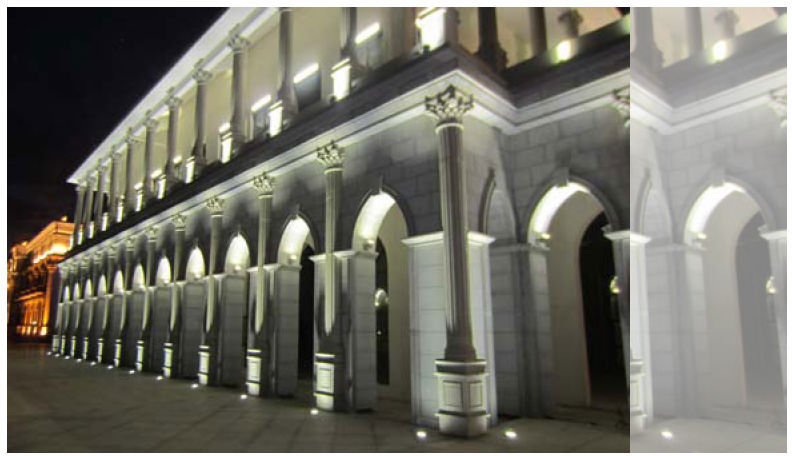

建筑物外墙, 广场
描述
联络供应商
描述
Waterproof:
Technical parameter
- Adopt new patent of air filter device for preventing moisture
- condensation inside the luminaire. (new model patent No.：
- ZL200720068796.X；Outlook patent No.：ZL200730075322.3）
- Anti-static：Special electronic component and circuit against static (ESD) and surge has been adopted according to the standard of IEC61000-4(level 4).Max.(Peak Current)up to 3000 A(8/20μs).
- The advantages are as followings：
- 1. It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation, universal voltage is also good for the stability of LED brightness and life span.
- 2. It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.
- configuration:
- 1. Integrated heating solution to guarantee the LED luminous
- efficiency and life span.
- 2. Imported silicon rubber material is adopted for waterproof
- gasket.
Technical parameter
- Type F1016A series (Professional)
- LED Germany OSRAM、 USA LUMILEDS、USA CREE, Imported Light Emitting Diode(LED)
- Single LED Wattage 1 W
- LED lifespan 50,000 hours
- LED quantity 9 pcs
- LED color (single color) Red、Green、Blue、Amber、White、Neutral white、Warm white

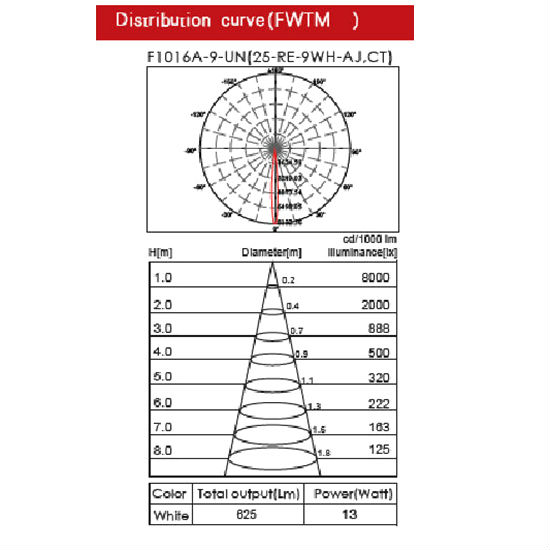

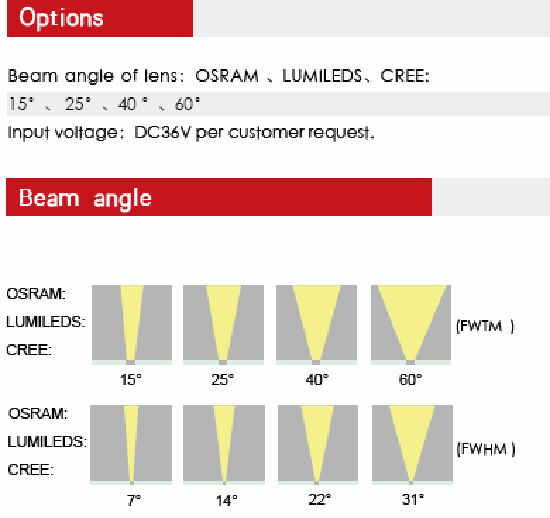

- Beam angle 15°/25°/40°/60°
- Housing Die-cast aluminum , silver gray powder paint with high corrosion resistance.
- Glass material 8mm thickness tempered glass, surface color Jasper black
- Power input 100～240VAC±10%, 50/60Hz
- LED driver 350mA/700mA constant current driver
- Power consumption 8W
- Anti-static IEC61000-4（Level 4）
- Ingress protection IP66
- Classification Ⅰ
- Power cable 3×1. 0mm2 rubber cable
- Ambient operating Temperature -20℃~+55 ℃(Ta+10℃)
- Power Factor(PF) 0.88（A）/0.94（B）
- Inrush Current(MAX) 43A
- Net weight 2.9 KG
