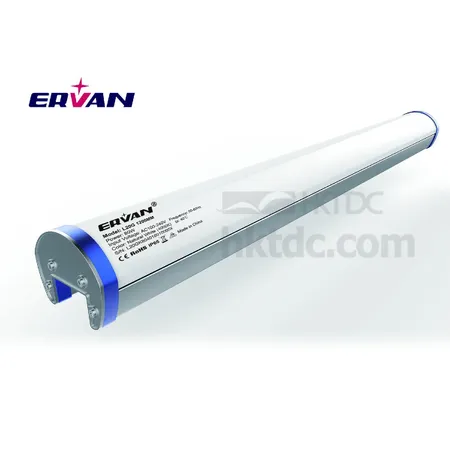

This LED linear has a housing made of 6063 aerospace grade aluminum and has a PC cover. It uses 416 pieces of Epistar SMD 2835 LED chips as the light source to ensure high brightness, low light decay and safe operation. The LED linear light comes in an elegant design and can be connected 1 by 1 to suit different lighting needs.

• Main material: aluminum housing, PC cover.
• LED source/quantity: SMD LED 2835, 416 pieces.
• Power: 80W.
• Color temperature: 2900-6500K.
• Warm white.
• Neutral white.
• Daylight white.
• Pure white.
• Cool white.
• Luminous (lm) 11200±10%LM.
• Lighting effect: 140LM/W 100LM/W.
• CRI: 80-85Ra.
• P.F>0.98.
• Input voltage: AC85-265V, 50/60Hz.
• Output voltage: DC30-40V.
• Work temperature: -20~50℃.
• Lifespan: more than 50000 hours.
• Warranty: 5 years.
• Certification: TUV, SAA, UL, DLC, ROHS, CE, CB, FCC.
• IP40.
• Actual size: 1200x85x109mm.


Features:

• 2835 SMD Epistar LED chips used.
• Ensure high brightness, low light decay and safe working current.
• Long LED life span, LM-80certified.
• Driver is specially designed for LED lights, AC / DC power supply, high power factor, suitable for global AC voltage.
• With overload protection, output short circuit protection, output overvoltage protection.
• Elegant appearance, smart and small size, high efficiency and low noise.
• Primary and secondary driver are isolated, high isolation voltage to ensure safety use.
• 6063 aerospace aluminum used, high thermal performance, small, wear-resisting property, more energy efficient.
• Long lifespan.
• Simple installation.
• Each linear light can be connected 1by1.
• Can suit different lighting needs.
