LED Linear Light
分享此页面
美元 $12.00 - 美元 $20.00
生产所需时间:
10 日
运送方式:
DHL/UPS/FEDEX/TNT and other
品牌:
CoreShine
型号编号:
U-Line
材料:
Aluminum Alloy + PMMA lens/PC cover
光源:
发光二极管照明
尺寸:
1200mm, 1500mm, 2400mm
Trunk Rail Length:
600mm, 1200mm, 1500mm, 2400mm, 3000mm
CRI (Ra>):
80
UGR:
<19

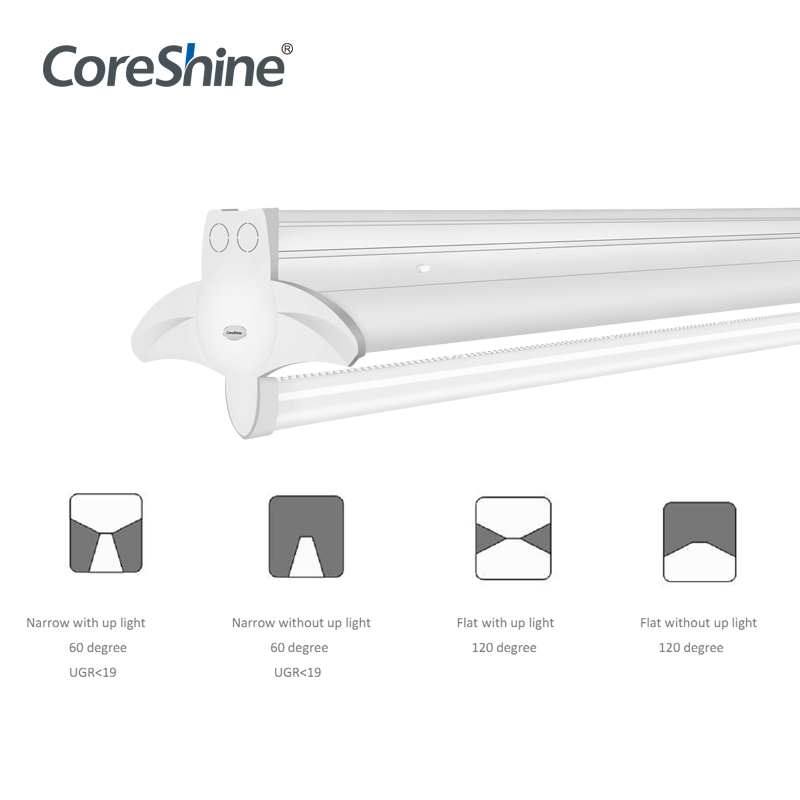

Beam Angle:
60°;120°; Asymmetric; Double Asymmetric
CCT:
3000K/4000K/5000K/6000K
PF:
>0.95
THD:
<15%
Input Voltage(V):
AC220-240VAC/100-277VAC
Installation Method:
Chain, Cord, Rod, Surface mounted
Lumen:
4000lm-16000lm
Connector:
L/T/X Node Connector can be choose
Dimming:
DALI, 1-10V, DIMswitch
Driver:
Coreshine/Rubycon/Tridonic
Led Chip:
Everlight/Samsung
Color:
White
Light Color:
Warm White, White, Cold White
IP Rating:
IP20/IP54
Light Efficiency:
135-150lm/W
Power:
35W,50W,65W;70W,100W,150W...
Function:
Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light
Wires:
5/8/12 core
Working Temperature:
-20 - 65 ℃
Warranty:
5 years
Lifespan (hours):
50000
Certifications:
CE/CB/ETL/DTC/SAA/FCC/GS/UL
Packing:
Luminaire and Trunking rail are packed separately
Port:
Shenzhen
Payments:
L/C,T/T,Western Union,MoneyGram
Switch Type:
Motion Sensor Switch
应用:

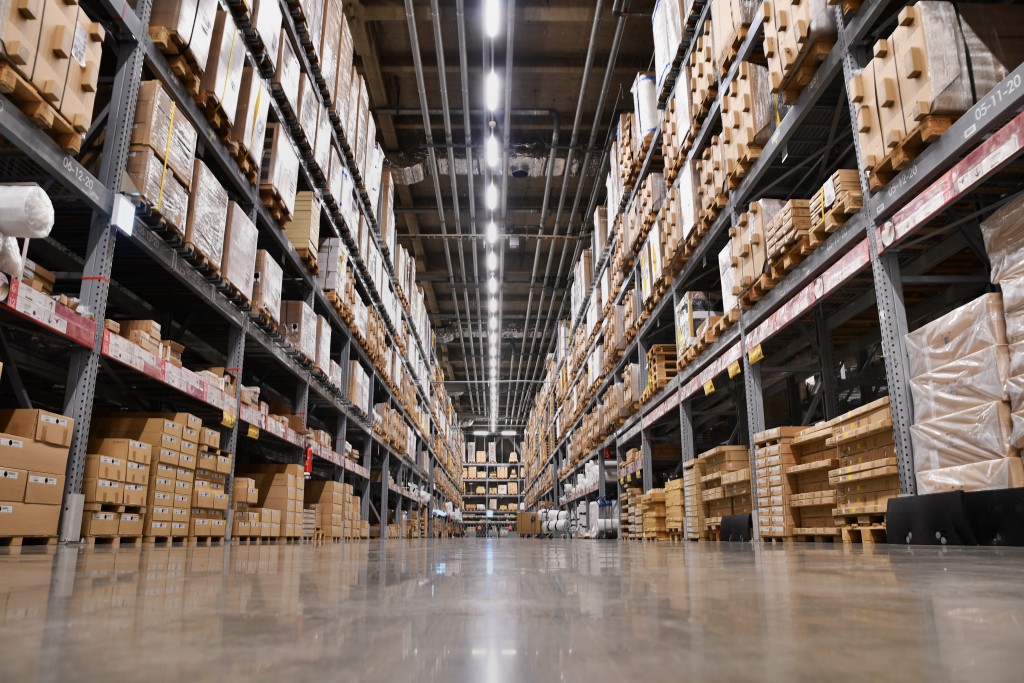

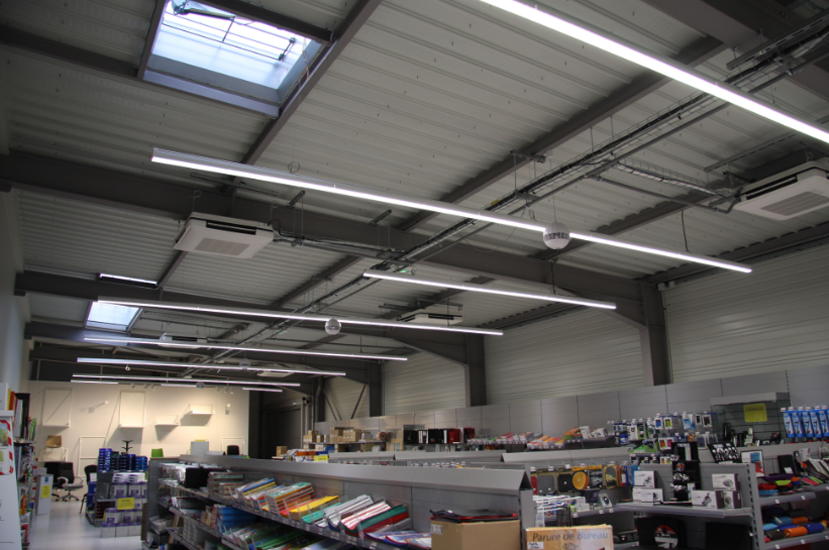

Office,Library,Supermarket,Warehouse,Workshop,etc.
是否可订造:
可以
描述
证书及文件
联络供应商
描述
Product Details

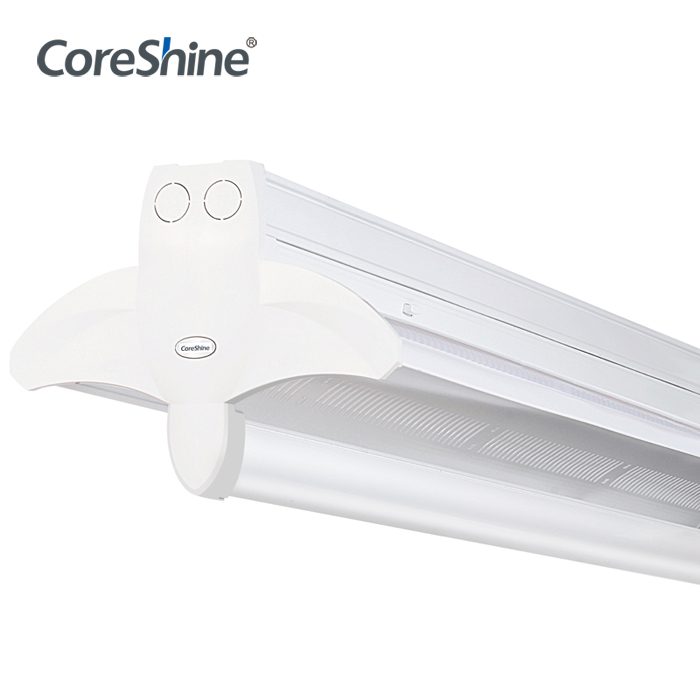

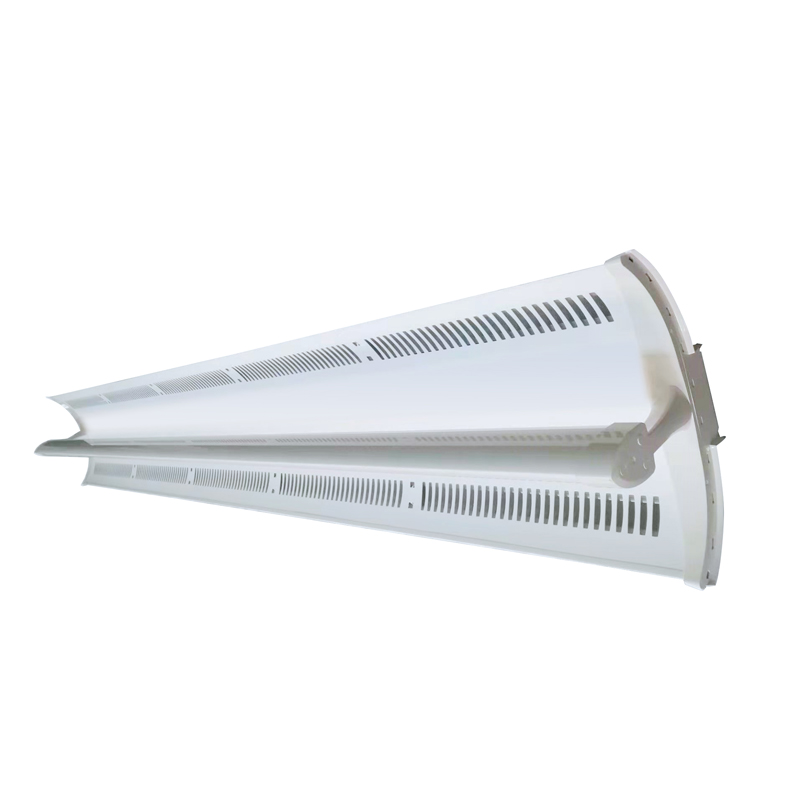

Coreshine U-LINE Indirect Led Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting.
* Unique design

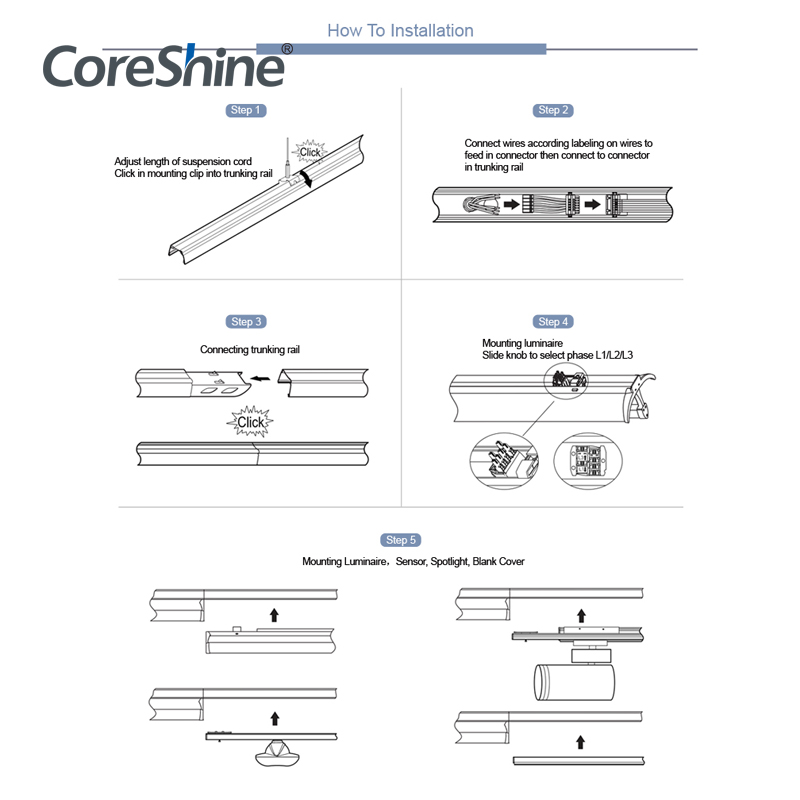

* Tools Free Installation

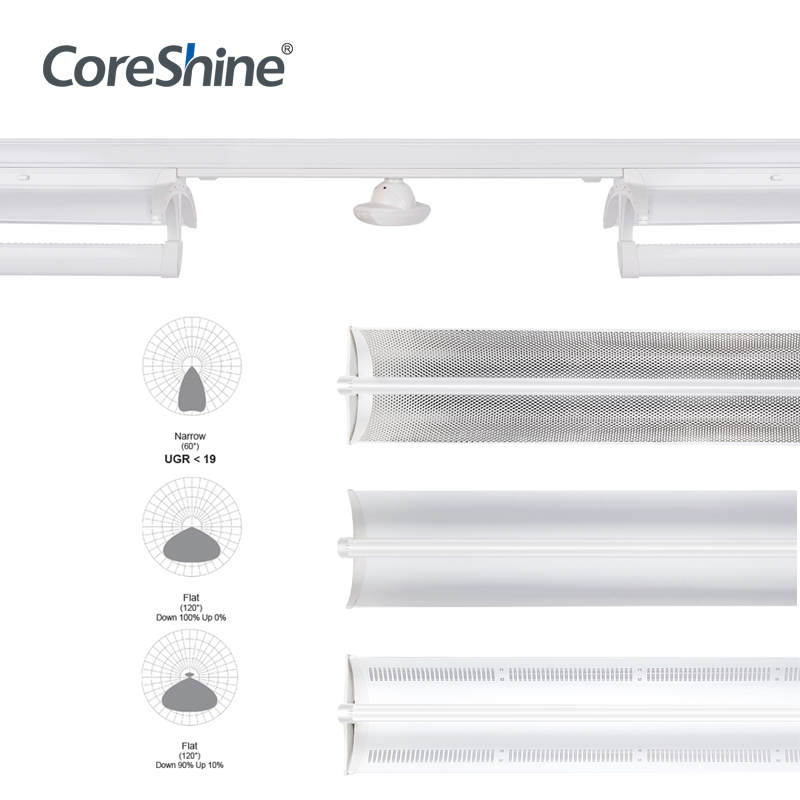

* 10% of the light upward and 90% reflected onto the floor
* Delivering up to 150 lm/w

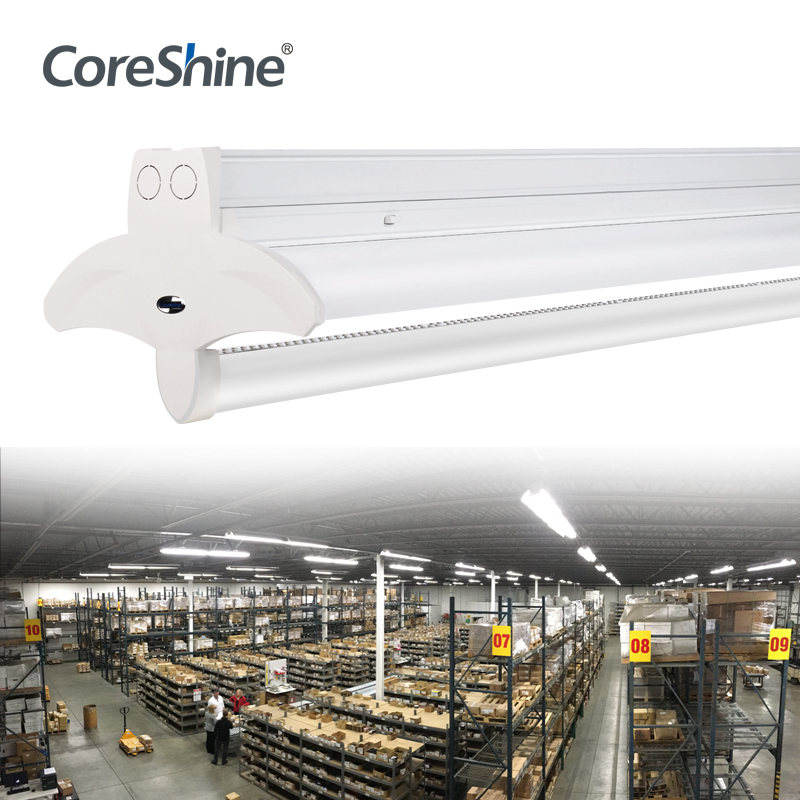

* Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
* More profitability and productivity

Luminaire
Length
Power
Lumen
Code No.
1200mm
30W
4800lm
CUL-1230-X1X2-X3WH
1200mm
40W
6400lm
CUL-1240-X1X2-X3WH
1200mm
60W
9600lm
CUL-1260-X1X2-X3WH
1500mm
35W
5600lm
CUL-1535-X1X2-X3WH
1500mm
50W
8000lm
CUL-1550-X1X2-X3WH
1500mm
70W
11200lm
CUL-1570-X1X2-X3WH
2400mm
60W
9600lm
CUL-2460-X1X2-X3WH
2400mm
80W
12800lm
CUL-2480-X1X2-X3WH
2400mm
120W
19600lm
CUL-24120-X1X2-X3WH


Trunk Rail

Europe StandardsNorth America Standards
Length
  • 600mm, 1500mm, 3000mm
  • 600mm, 1200mm, 2400mm

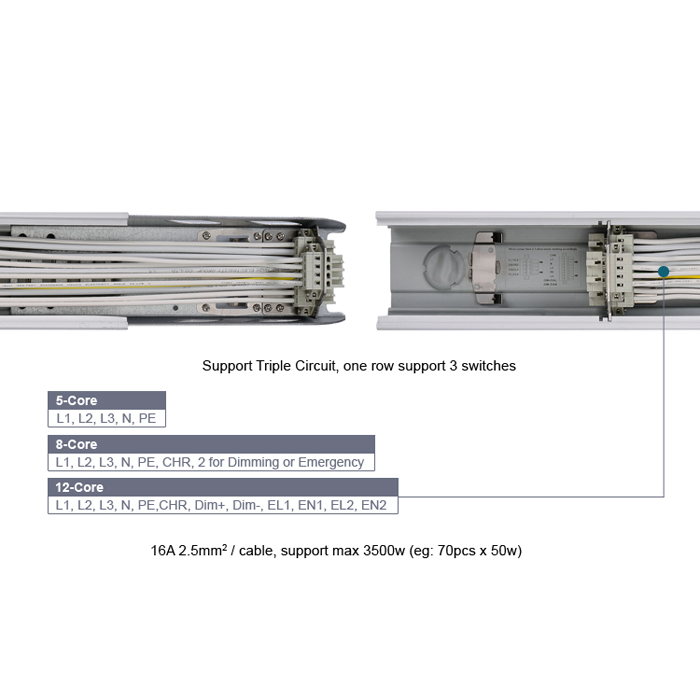

Wires
  • 5 wire: L1, L2, L3 N, FG
  • 8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency
  • 12 wire: L1, L2, L3 N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency converter & Battery

Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

  • Established in 2005
  • Located in Shenzhen
  • Number of employees 200 staffs
  • 13,000 square meter 9 floors of workshop + 1 floor of office
  • Complete Industry Layout: R&D, Production, Marketing
  • Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

  • Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
  • Their average industry experience is more than 10 years.

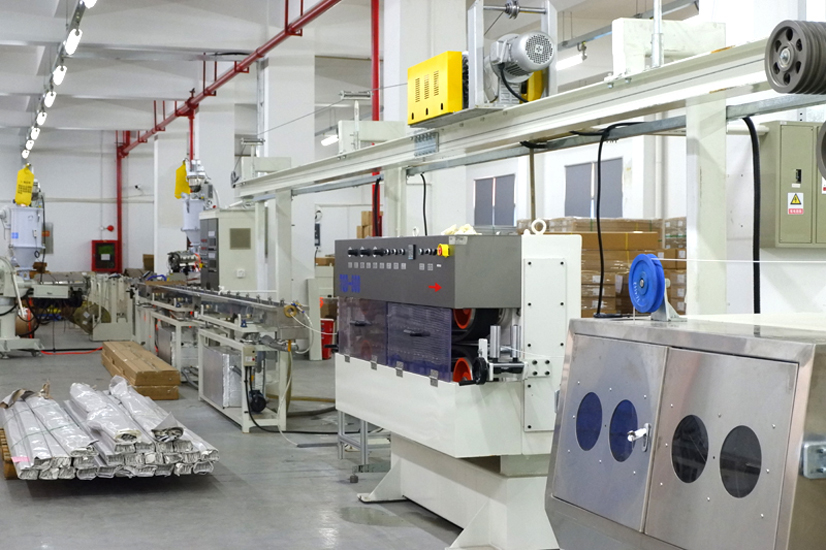

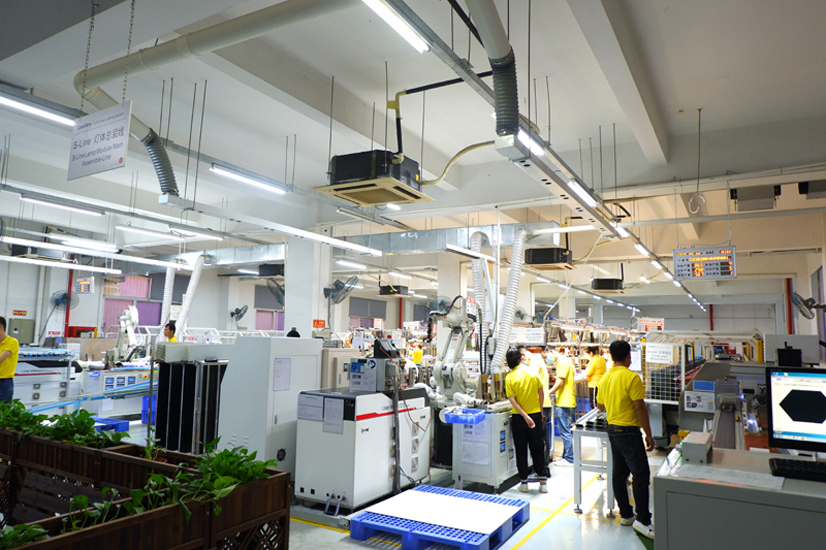

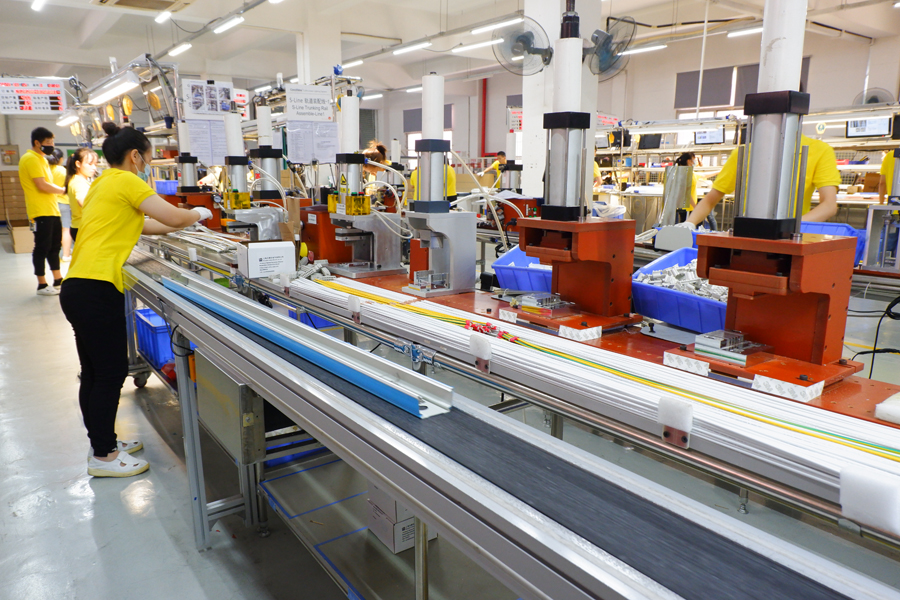

Production

  • More than 95% of our accessories are made by ourselves.
  • We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
  • All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

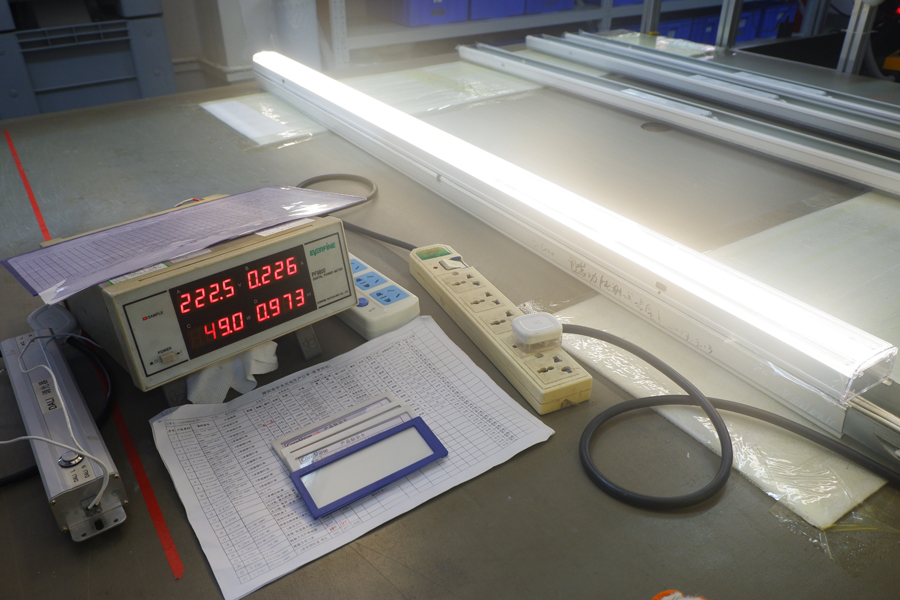

QC

  • Our QC department consists of 11 people, all of them are very experienced in this field.
  • They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
Our Advantage
  • 5 years warranty
  • Toolless installation
  • Brand Components
  • Heat radiating area 106cm²/w
  • Longer warranty, Less maintenance
  • Rigorous technical
  • Quick connector
  • Electrical safety design
  • Organized wiring
  • Modularity, integration structure
