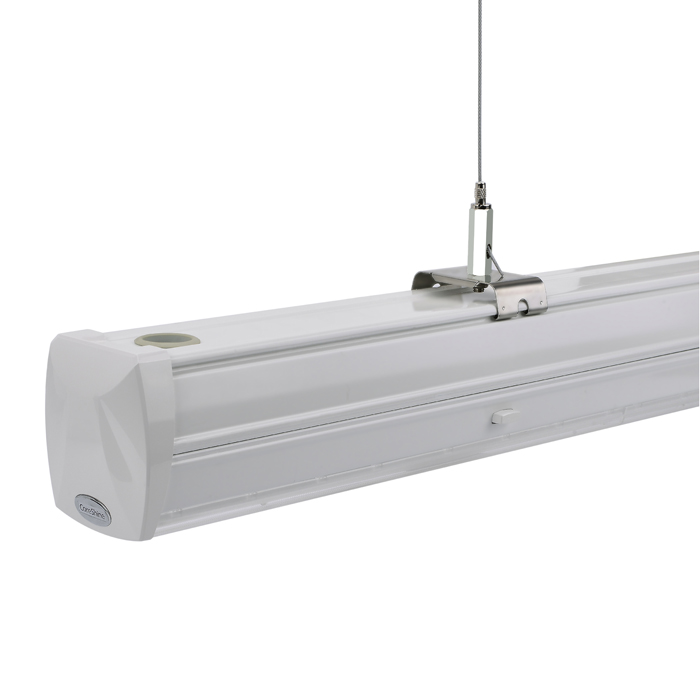

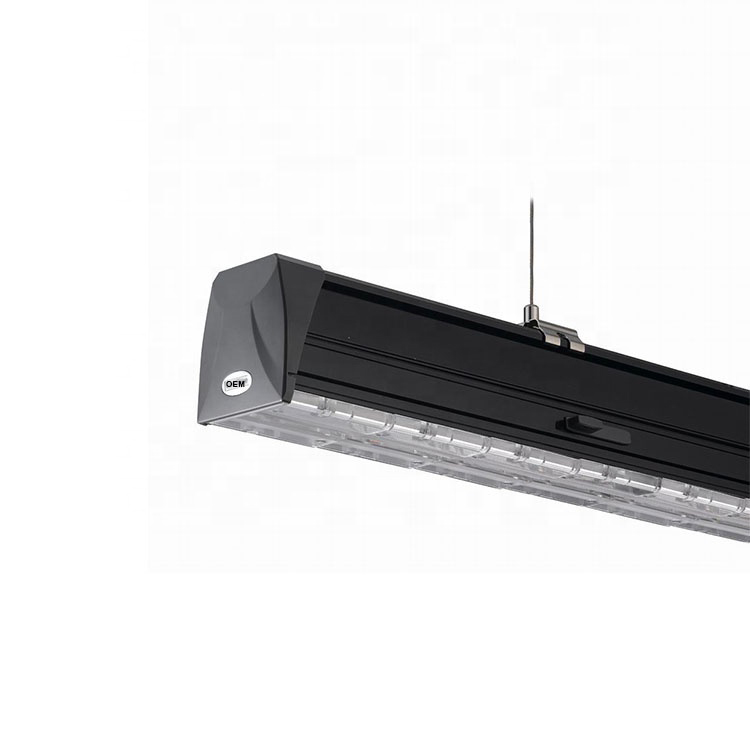

LED Linear Light Emergency Lighting with Track Rail

数量

生产所需时间:

8 日

运送方式:

DHL/UPS/FEDEX/TNT and other

品牌:

CoreShine

型号编号:

CFL-1230-X1X2-X3WH

材料:

Aluminum Alloy + PMMA lens/PC cover

应用:

Supermarket, Warehouse, Workshop, Office, Industrial etc.

CCT:

3000K/4000K/5000K/6000K

Input Voltage(V):

AC220-240VAC/100-277VAC

Power:

30Watt/40Watt/60Watt/80Watt/100Watt/120Watt

Lumen:

4800lm-19800lm

Light Efficiency:

160lm/w

THD:

<15%

PF:

>0.95

CRI (Ra>):

UGR:

<19

IP Rating:

IP20/IP54

Lifespan (hours):

50000

Warranty:

5 year

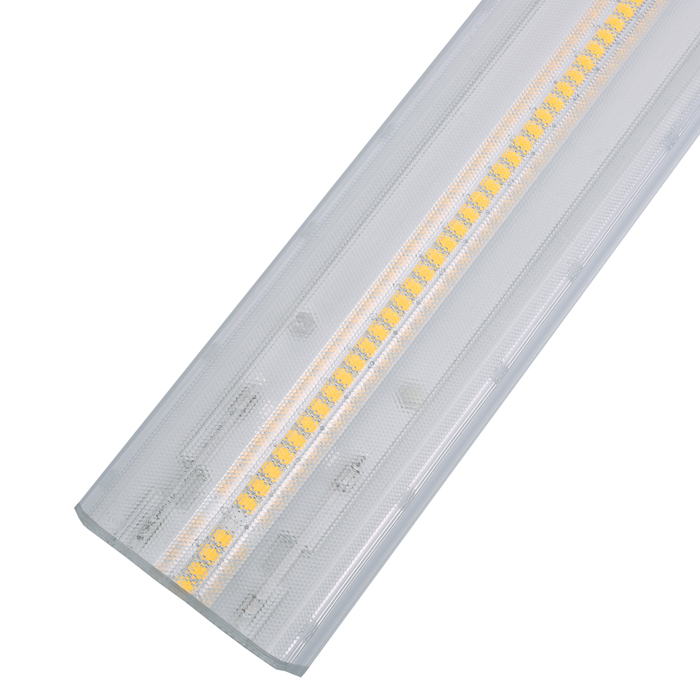

Light Source:

smd2835

Dimming:

DALI, 1-10V, DIMswitch

Wires:

5 wire / 8 wire / 12 wire

Connector:

L/T/X Node Connector can be choose

Function:

Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light

Certifications:

CE/CB/ETL/DTC/SAA/FCC/GS/UL

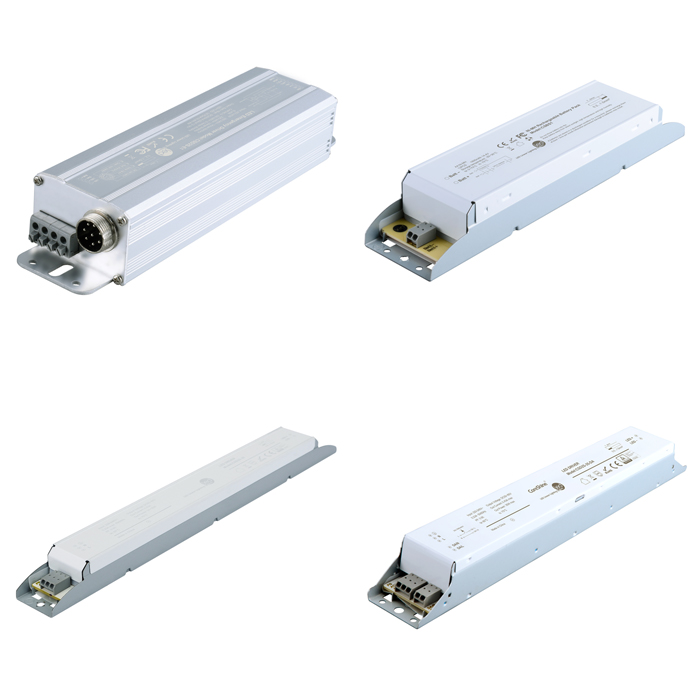

Driver:

Rubycon/Coreshine

Beam Angle:

25°; 60°; 90°; 120°; Asymmetric; Double Asymmetric

是否可订造:

可以

光源:

发光二极管照明

尺寸:

1200mm, 1500mm, 2400mm, 3000mm

描述

证书及文件

联络供应商

Product Details

Coreshine Led Linear Lighting Emergency Solution

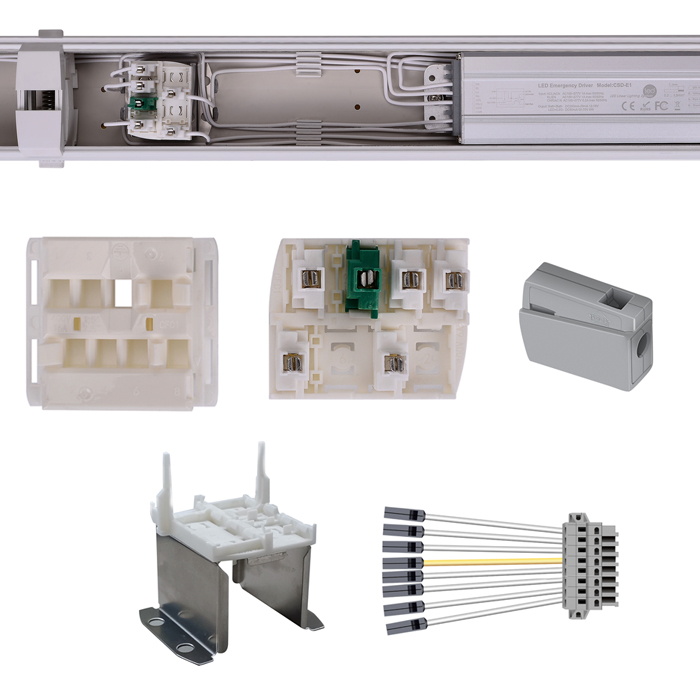

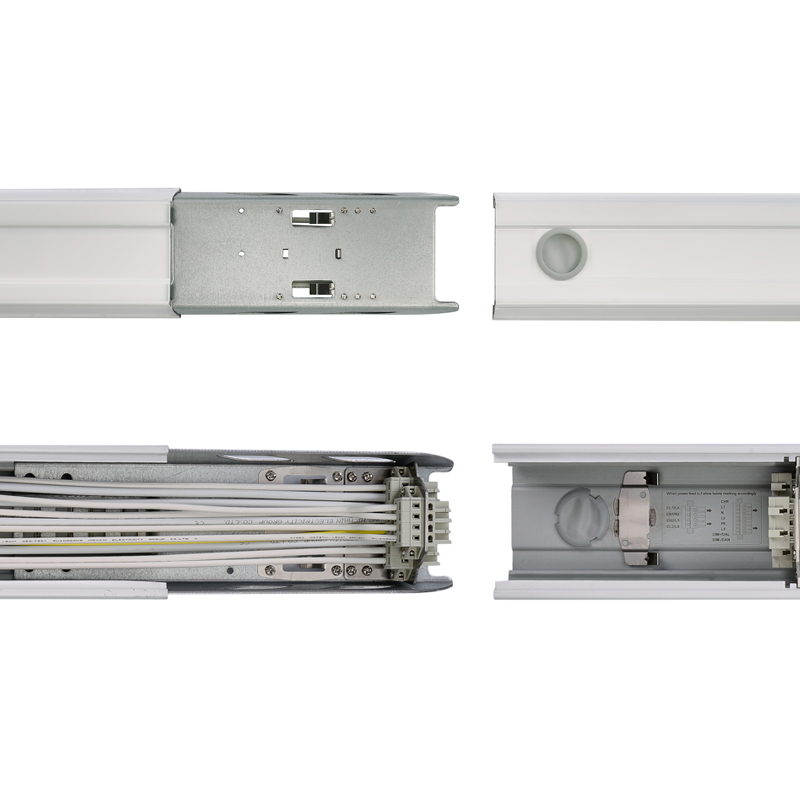

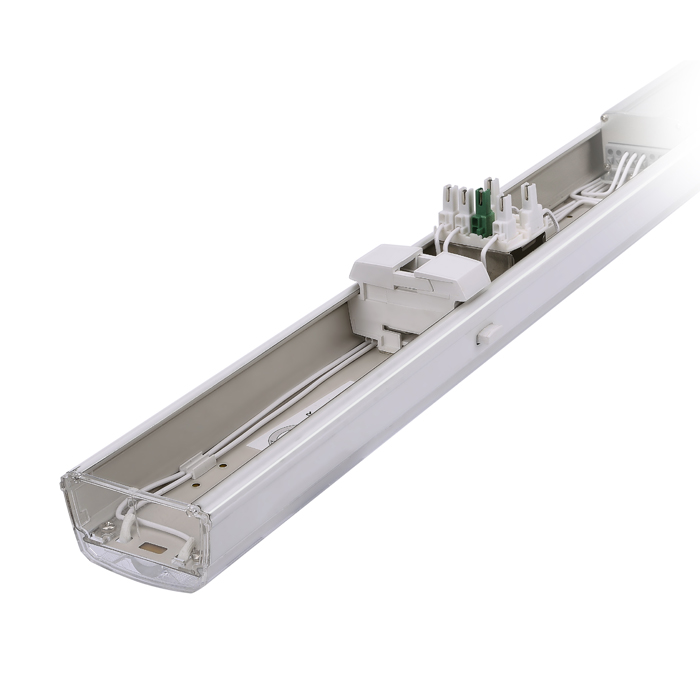

Thanks to the preset 8-wire & 12 wire trunking rail, emergency lighting can be well integrated into standard lighting. With two independent emergency lighting circuits and a self-contained emergency driver & battery, Coreshine's LED Linear Lighting System can provide full or reduced power in the event of power failure, General lighting combines with automatic emergency lighting into one integrative lighting solution. You can easy to work out the emergency lighting solution with this system.

Emergency Lighting Models

Based on emergency supply, Coreshine's linear emergency light falls into two models as follows:

- by external emergency supply only ( EL1/EL2)

- by internal emergency supply only ( emergency drive and built-in battery supply )

Emergency E27 / E14 Module

Emergency E27/E14 is compatible with Coreshine's LED Linear Lighting System, the module functions can be easy connected to the System and integrative the lighitng solution. You will have more choices with the Emergency lighting solution.

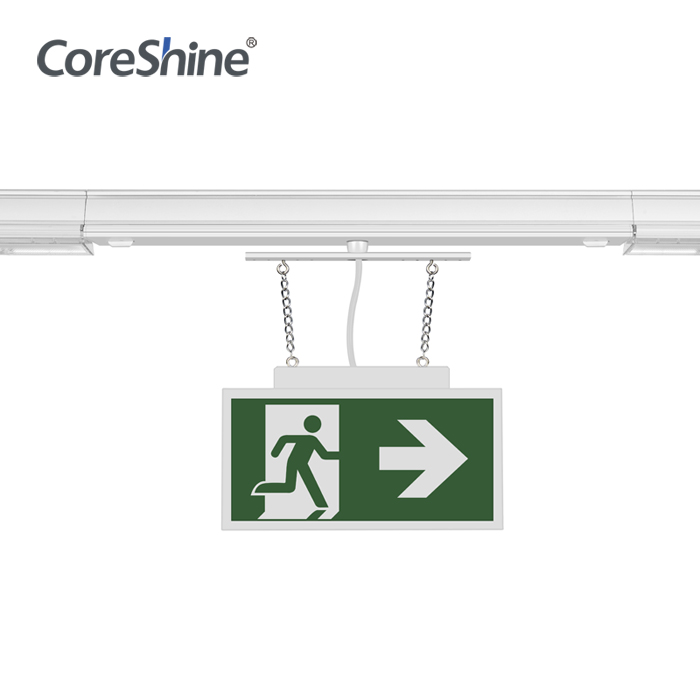

Emergency EXIT Sign Module is a solution on Coreshine's LED Linear lighting system, When power cut happens, the Emergency exit sign can working within 1 second on the system.

The EMERGENCY EXIT Sign wide supply for hotel, office, hospital, and home application.

Why Choose Coreshine

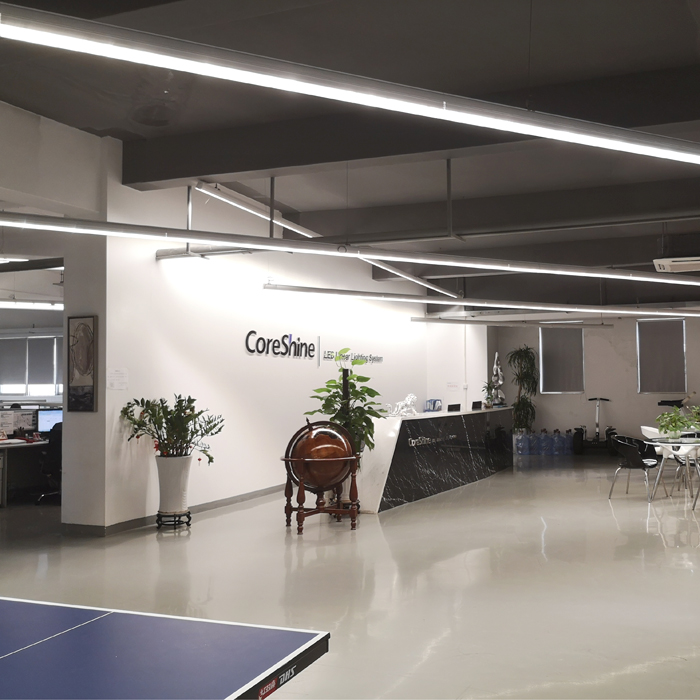

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

Established in 2005
Located in Shenzhen
Number of employees 200 staffs
13,000 square meter 9 floors of workshop + 1 floor of office
Complete Industry Layout: R&D, Production, Marketing
Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
Their average industry experience is more than 10 years.

Production

More than 95% of our accessories are made by ourselves.
We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

Our QC department consists of 11 people, all of them are very experienced in this field.
They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
