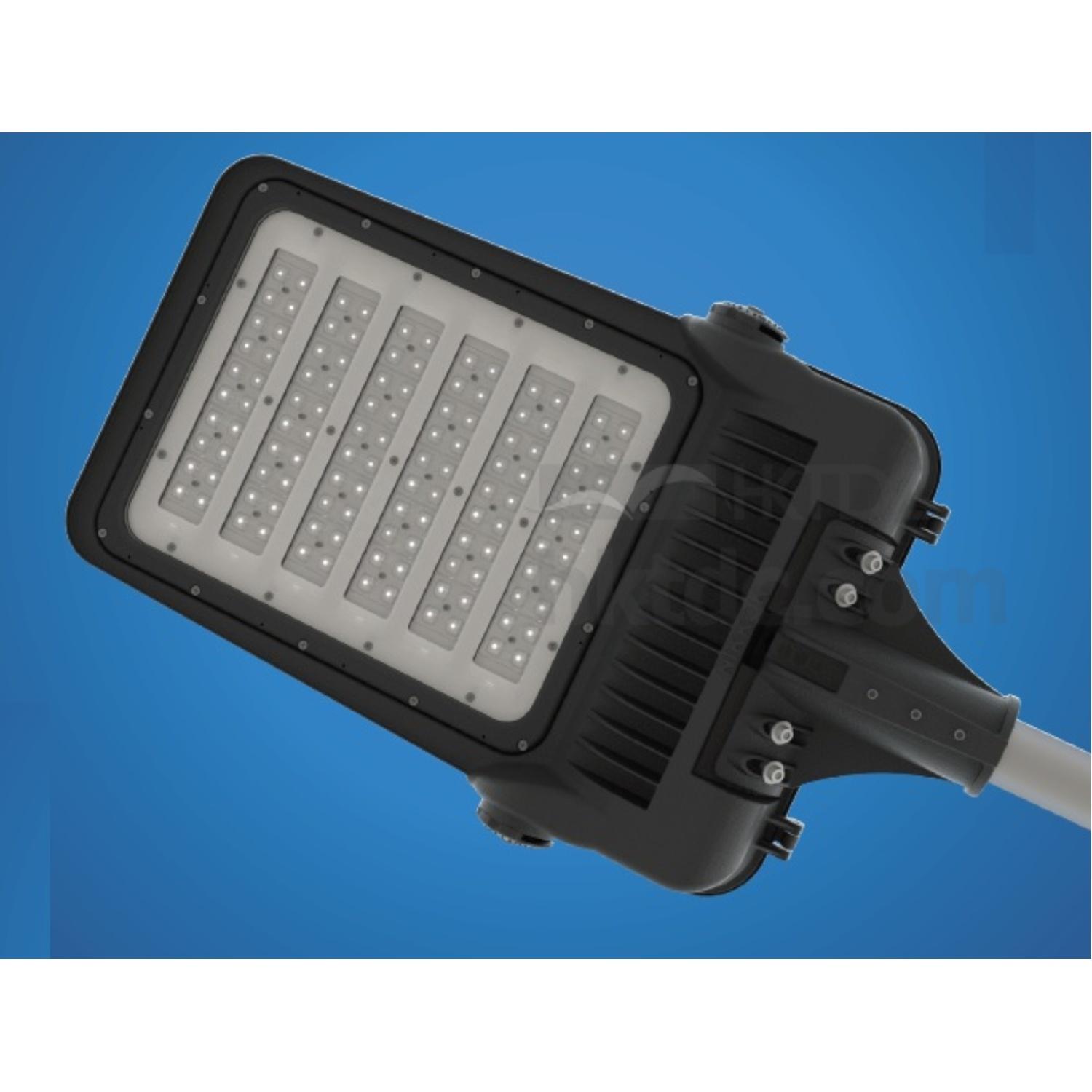

LED Street Lantern

产品型号:

S466

付款方式:

T/T in advance, irrevocable L/C at sight

最低订购数量:

No MOQ

电压(伏):

220-240

功率(瓦):

200, 250, 300, 350

光源:

发光二极管照明灯泡

主体物料:

Non-Corrosive Die-Cast Aluminium

包含灯泡:

包含

防护等级:

IP66

可定制:

是

描述

联络供应商

Luminaire Technical Specifications
- System Power
  - 200W
  - 250W
  - 300W
  - 350W
- Fitting Material - Non-Corrosive Die-Cast Aluminium
- Optical Cover - High Transparency Tempered Glass
- Ingress Protection IP66
- Impact Protection IK08
- Voltage 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class Class I
- Operating Temperature -30 ~ +550C
- Surge Protection 10KV, 20KA
- Installation
  - Ø60mm Side Entry
  - Ø60mm Post Top
  - Mounting Bracket
- Nett Weight - 18 kg
- Carton Size - 840 (L) x 540 (W) x 275 (H)
LED Module Specifications
- LEDs High Power LEDs
- Color Temperature 3000K, 4000K & 5000K
- L70 100,000 Hrs @ 250C
- PCB Material Ceramic (Alumina Substrate)
- Lens Efficiency 93%
- Lm/W Up to 124 lm/W
Compliance Standard
- LED
  - LM 80
- Driver
  - CE, EN 55015, EN 61000, EN 61547, IEC 61347
  - EN 62493, IEC 60598, EN 50581, IEC 62384
- Luminaire
  - EN 61000, EN 55015, EN 61547, EN 60598
  - EN 62471, EN 62493, IEC 62722, LM79, CISPR1
Optional Features
- LED Drivers
  - 1-10V Dimming, Full Programmable
- Control System
  - iLCS (Intelligent Light Control System)
- Installation
  - Mounting Bracket (Highmast Lighting)
- Lens (Optional)
  - Type I, Type II, Type III, Type IV & Type V
  - * Special distribution lens upon request
Application
- Motor Ways, Municipal Areas, Expressways, Highmasts, Tennis / Sport Courts, Carparks, Jetties & Ports
