LED explosion proof highbay light 80W/100W/120W/150W/160W/180W/200W with ATEX certificate

美元 $160.00 - 美元 $220.00

生产所需时间:

10 日

运送方式:

by sea/air

描述

联络供应商

Product Description

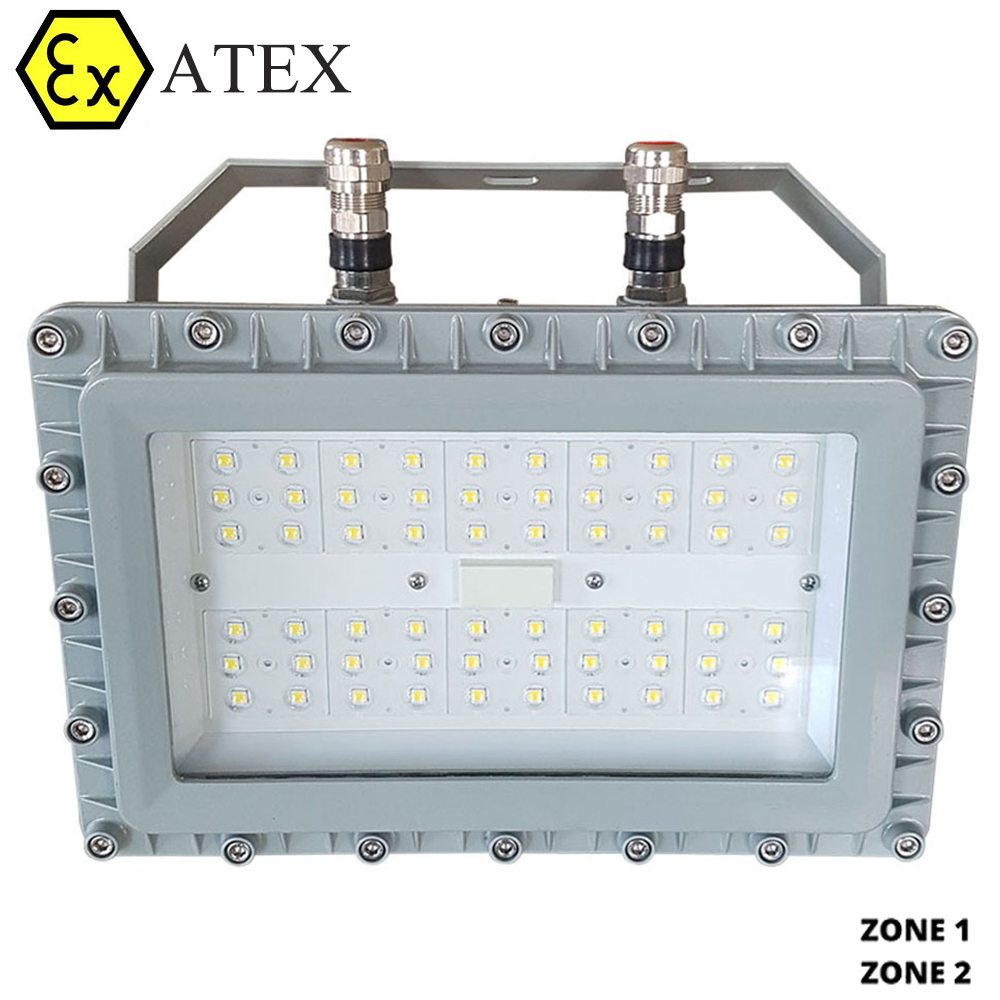

LED explosion proof highbay light 80W/100W/120W/150W/160W/180W/200W with ATEX certificate

Features

Zone1,2,Zone21,22
Instant on crisp white light output
High efficiency drivers and LEDs provide,
low cost operation in harsh and heavy industrial applications
Isolated LED compartment reduces temperature within driver housing
ATEX and IECEx approved for all Zone 1 ,2 applications and rated for T6 environments.

The explosion proof light is designed specifically for harsh & hazardous environments which require high performance,high reliability, White-Light, safety and durable illumination. with ATEX and IECEx approved for all Zone 1 applications and rated for T6 environments.

Applications:
Oil and gas industries
Chemical, petrochemical
Pulp and Paper
Waste and sewage treatment
Power Generation

• Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
• Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
• Lamp efficient: >130lm/w
• Wide voltage: 90-305VAC
• Surge Protection:6KV
• Power factor: > 0.95
• THD (Total Harmonic Distortion): <20%
• Inrush current: <65

APPLICATIONS	BHD6620 is a hazardous location LED explosion proof lighting fixture Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
CERTIFICATIONS	ATEX,IECEx certificate issued by TUV, CE, ROHs
HOUSING BODY	Aluminum alloy ADC12, WF2 grade
LENS	4mm thick tempered glass & PC reflector 30º 60º 90º 120º +95% light transmission. Shock and vibrations resistant.
PERFORMANCE	12,000 to 24,050+ lumens Up to 140 lm/w. From 80W up to 200W. L70 (hrs) rated > 65,000.
IP66 & IP67 RATED	Dust tight and protected against the effects of immersion in water to depth between 15 cm and 1 meter. 1-10V, DALI dimming standard. Ideal for heavy industry, mining, refineries, chemical industry, coastal marine facilities and corrosive applications.
MOUNTING	Surface/wall mount standard (adjustable mount bracket included). Pendant kit optional.
OPERATING TEMPERATURE	-40°C to 50°C
DIMMING	1-10V dimming standard , DALI, Triac
