Built on a fully modular DIN rail mounting structure, the BP-GYJ8000 junction box redefines flexibility in outdoor lighting distribution. It supports optional assembly of various DIN rail devices such as circuit breakers, time switches, and fuses — customers can combine modules freely for customized configuration based on project requirements. The movable DIN rail inside the enclosure allows users to adjust its mounting position on the base plate according to component dimensions, maximizing space utilization. Core components including SPD surge protectors and overvoltage & undervoltage protectors adopt a universal design, compatible with multiple brands and models. This high-modularity approach means configurable on-demand setup, flexible expansion, and full support for future upgrades.

• Fully compliant with 35mm DIN rail standard — universal fit, worldwide compatibility.
• Boosts installation efficiency by 80% — cuts labor cost and time.
• Sealed against dust and particles — ideal for tunnels and deserts.

KEY FEATURES

✓EN 61439-2 Compliant Fully compliant with EN 61439-2 standard for low-voltage switchgear and controlgear assemblies — certified quality.

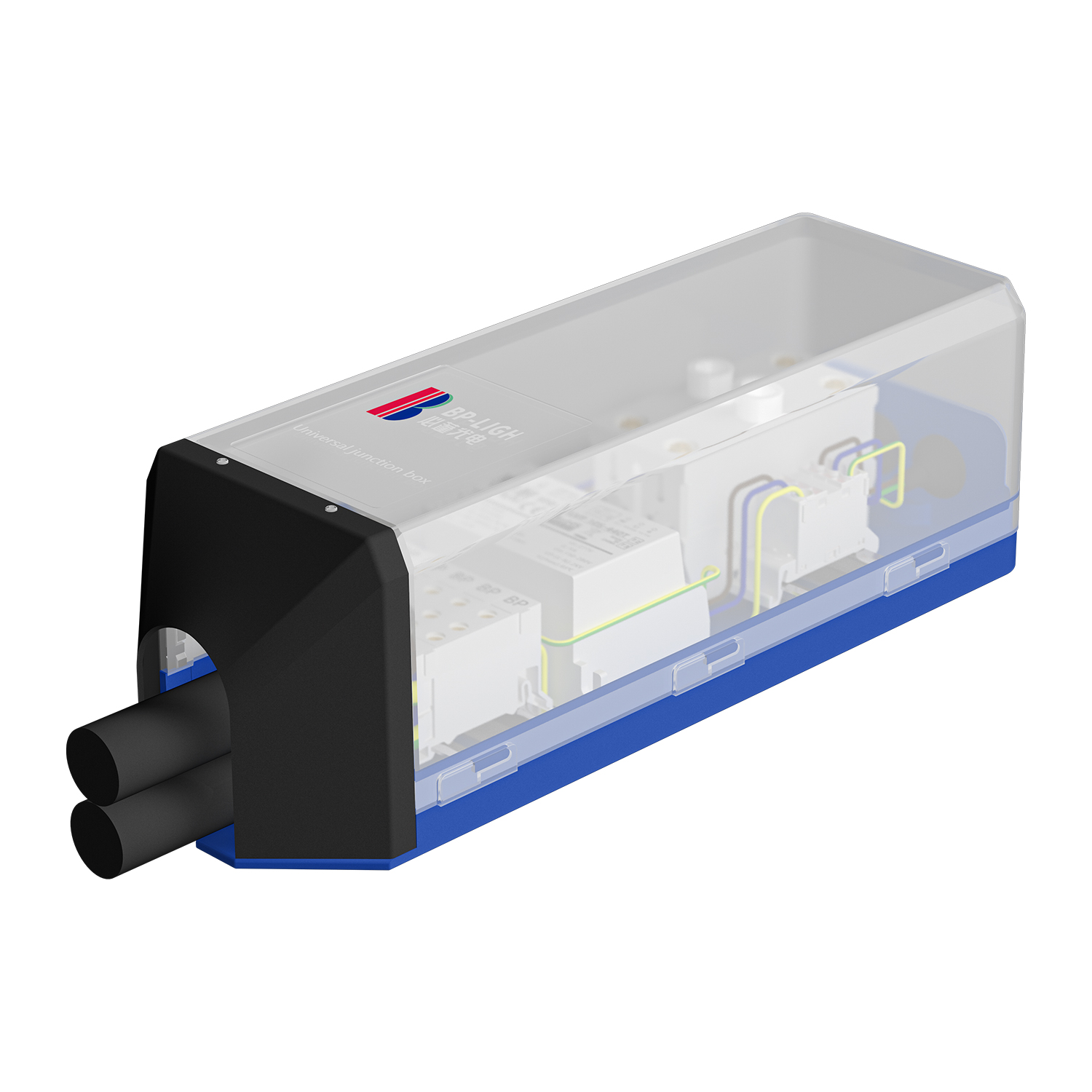

✓Rain-Proof Construction Sealed polycarbonate housing with cable gland entries ensures rainwater stays outside — your connections stay dry.

✓SPD Surge Protection Ready Central zone accepts Type II/III surge protective devices — safeguard LED drivers and controllers from lightning surges.

APPLICATIONS

✓Smart street lights on urban main roads: integrated time control, SPD and remote communication to realize energy saving and intelligent management.

✓Landscape lighting for parks and scenic spots: modular configuration enables flexible zoning lighting control strategies.

✓Highway and railway tunnel lighting: high protection grade adapts to humid, vibrating and dusty environments.

✓Integrated PV & energy storage street lights: built-in DC power supply and protection modules to support off-grid operation.

TECHNICAL SPECIFICATIONS

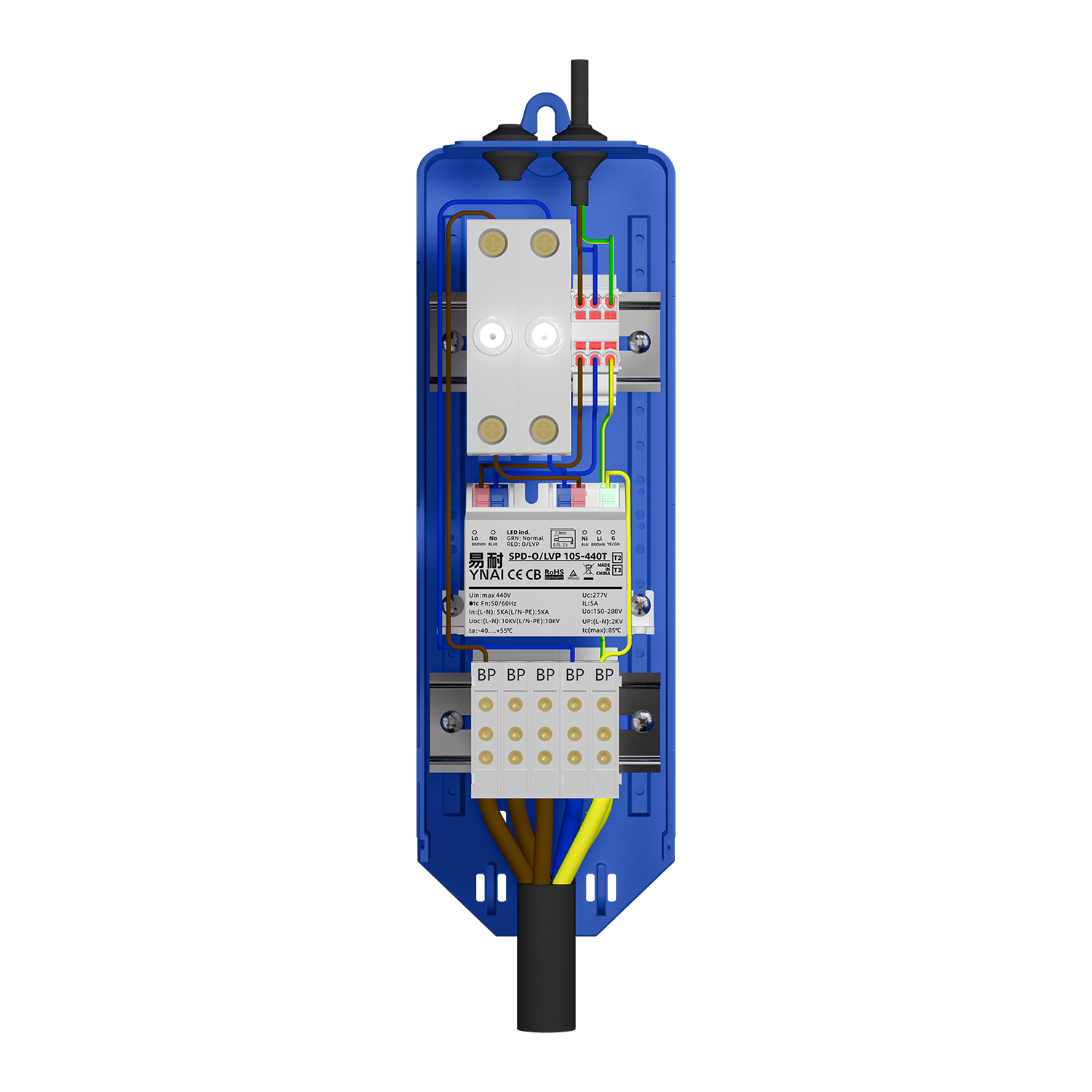

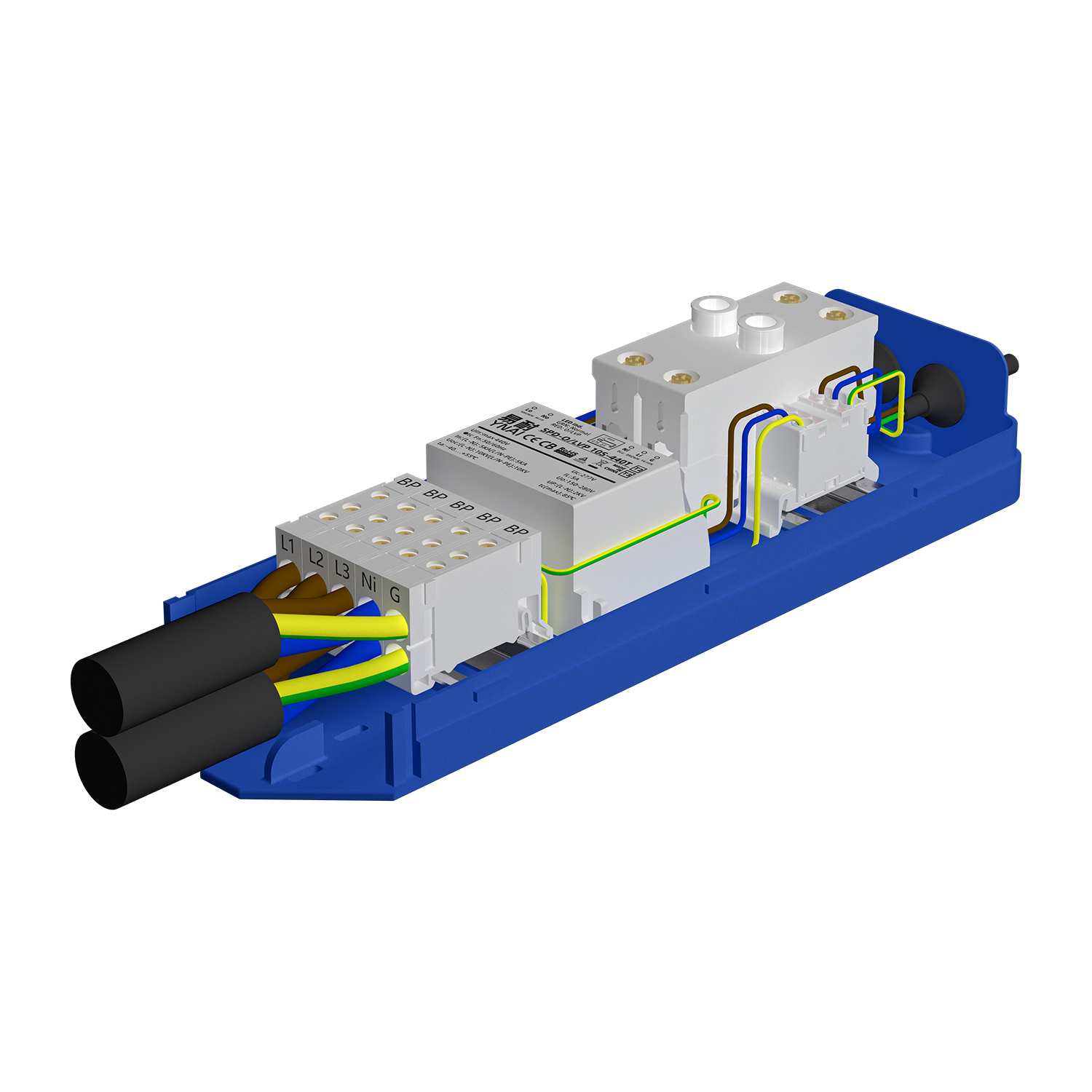

Junction Box Module Display
