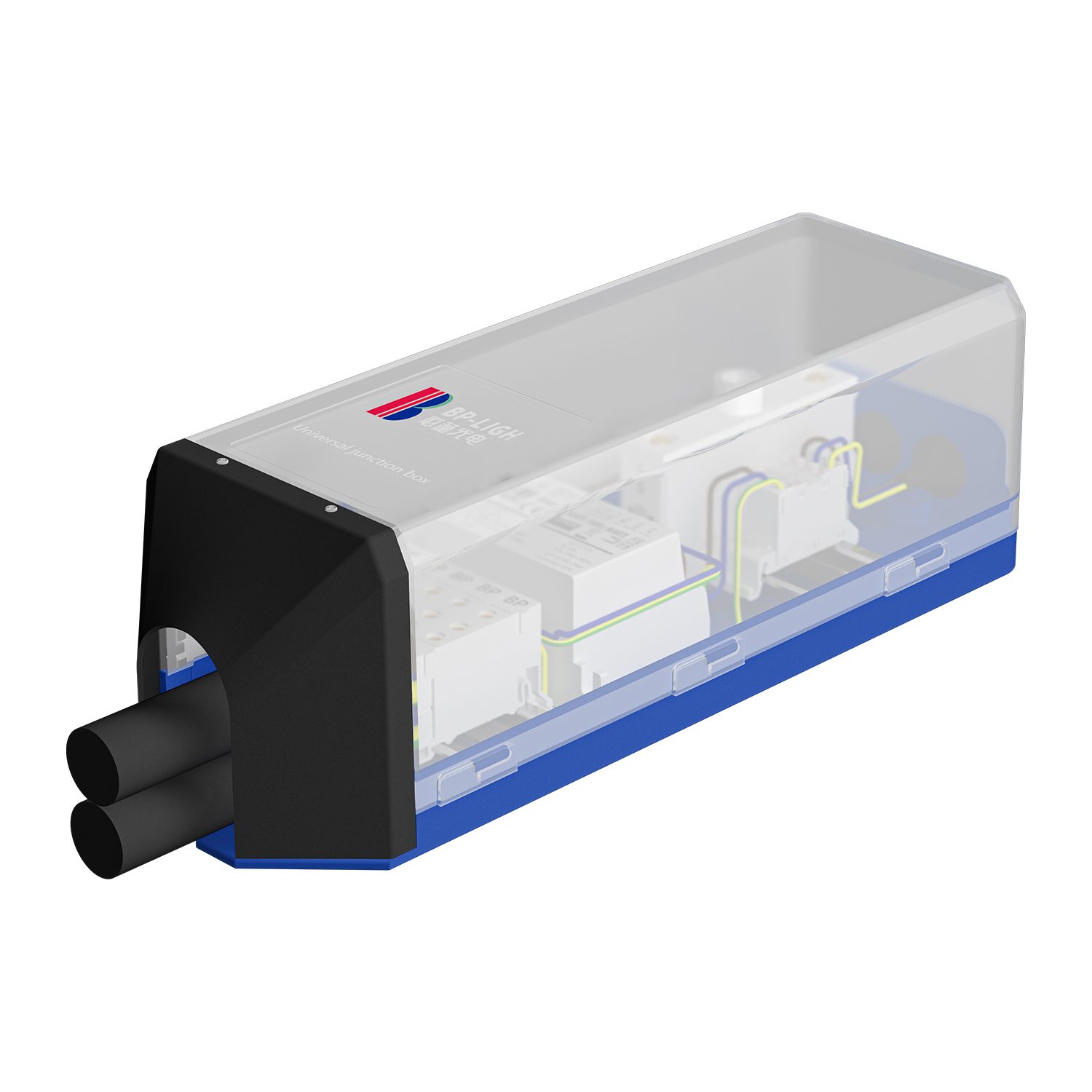

Lamp Post Junction Box with Unrivalled Capacity to Support SPD, OVP, UVP and Intelligent Communication Modules
Model:
BP-GYJ8000-SPD-O/LVP-Fuse(1P)
Included Modules:
10KV SPD, Fuse(1P), O/LVP, SPD-O/LVP
Certifications:
EN 61439-2,IEC 60529,EN 62262
Size:
88*93*295mm
描述
联络供应商
描述
Built on a fully modular DIN rail mounting structure, the BP-GYJ8000 junction box redefines flexibility in outdoor lighting distribution. It supports optional assembly of various DIN rail devices such as circuit breakers, time switches, and fuses — customers can combine modules freely for customized configuration based on project requirements. The movable DIN rail inside the enclosure allows users to adjust its mounting position on the base plate according to component dimensions, maximizing space utilization. Core components including SPD surge protectors and overvoltage & undervoltage protectors adopt a universal design, compatible with multiple brands and models. This high-modularity approach means configurable on-demand setup, flexible expansion, and full support for future upgrades.
- Fully modular DIN rail structure — combine components freely for any project configuration.
- Innovative sliding cover — locks without tools, one-person operation.
- IP45 per IEC 60529 — dust-tight, water spray resistant, outdoor-ready.
KEY FEATURES
✓Generalized Core Components SPD and OVP/UVP mounting areas use a universal design compatible with multiple brands and models, giving you more options.
✓80% Faster Installation Sliding quick-mount design boosts installation efficiency by over 80%, greatly reducing labor costs and construction time on site.
✓IK08 Impact Resistance IK08 impact rating compliant with EN 62262 — withstands 5 joule impacts from tools, hail, and vandalism.
APPLICATIONS
✓Smart street lights on urban main roads: integrated time control, SPD and remote communication to realize energy saving and intelligent management.
✓Landscape lighting for parks and scenic spots: modular configuration enables flexible zoning lighting control strategies.
✓Highway and railway tunnel lighting: high protection grade adapts to humid, vibrating and dusty environments.
✓Integrated PV & energy storage street lights: built-in DC power supply and protection modules to support off-grid operation.
TECHNICAL SPECIFICATIONS
Maximum Capacity:
- The input cable port can connect 2 pieces of
- 25mm² three-phase cables.
- Street lamp connection port is compatible with cables of 2.5mm² and below.
- For input cable ports, each terminal blockmax. supports 3 holes X 2 cables X 5 coresper cable x 25mm² per core.
- The input cable port can be equipped with 2 Cat5e Ethernet cables.
Optional Accessories:
- Terminal block: for terminal markingand convenient maintenance.
- Wogo 3*16mm2 Port
Compliance Standards:
- EN 61439-2
- Compliant with IEC 60529
- IK08 Compliant with EN62262 Standard
- Class 2
- -40°C~+105°C
Installation:
- Mounting lugs with 1 or 2 hooks.
- Fixed installation with M6 screws is available.
Standard Color:
- Contact us for customized colors.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with BP 10KV SPD,over-voltage & under-voltage protector,Fuse(1P) and cable clamp.

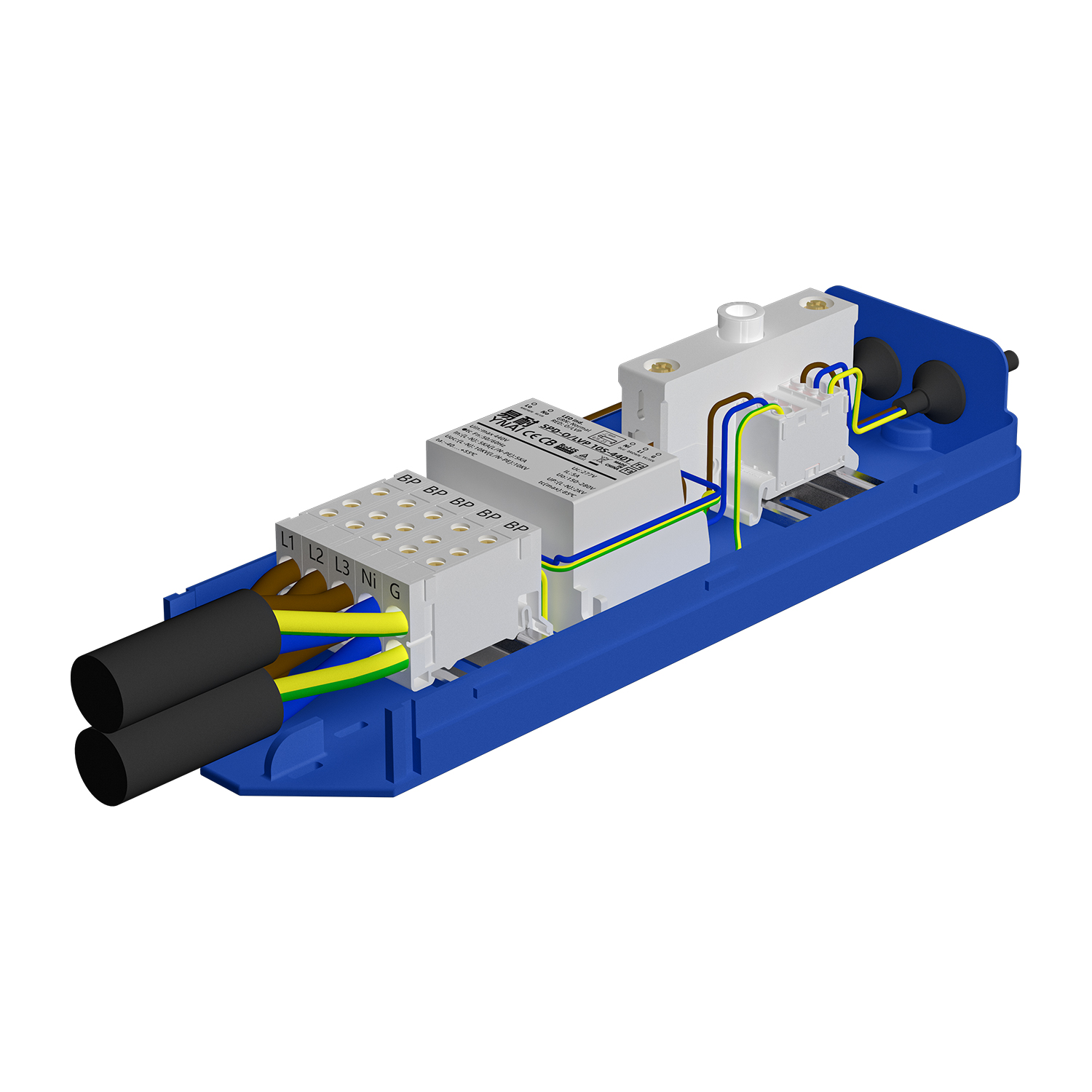

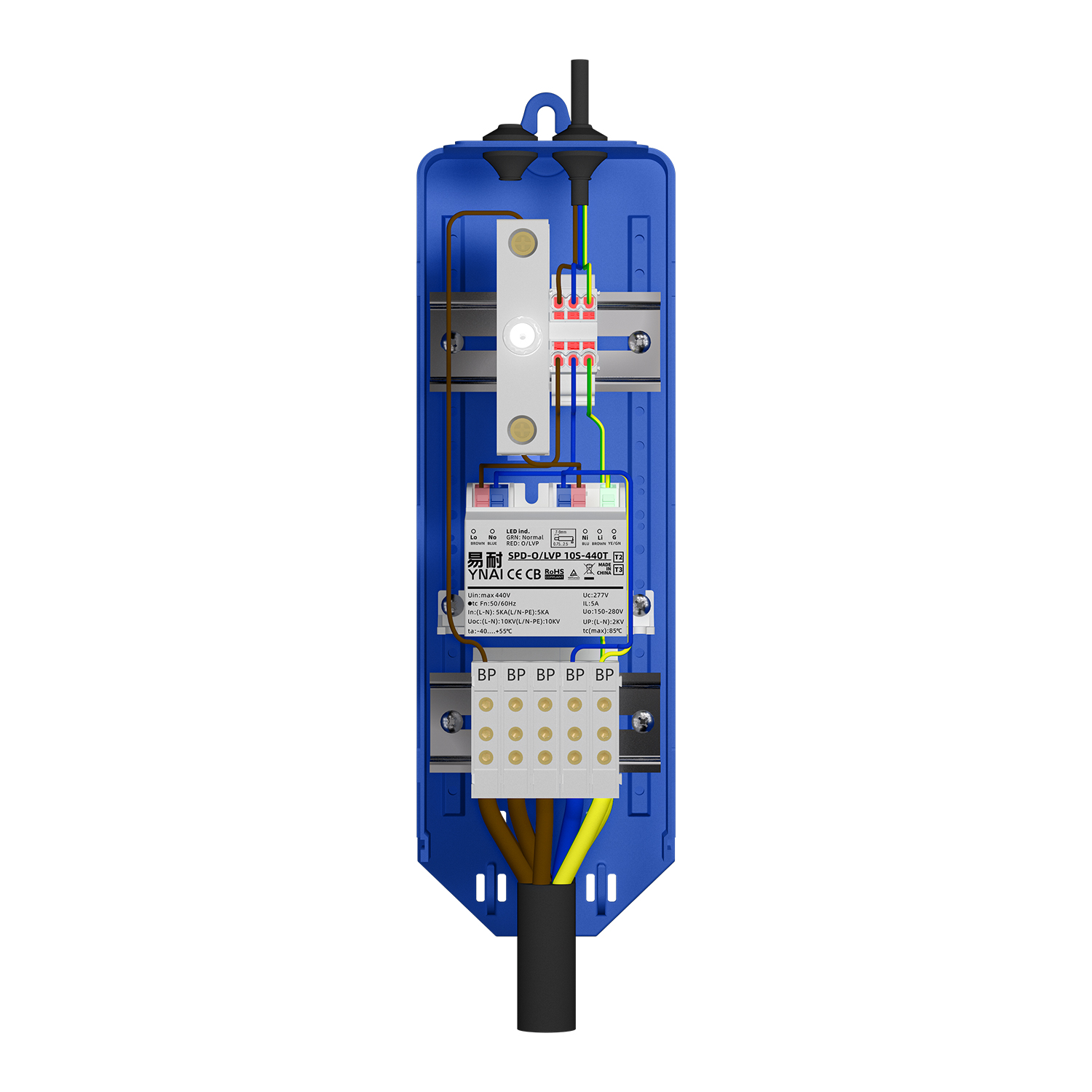

Junction Box Module Display
