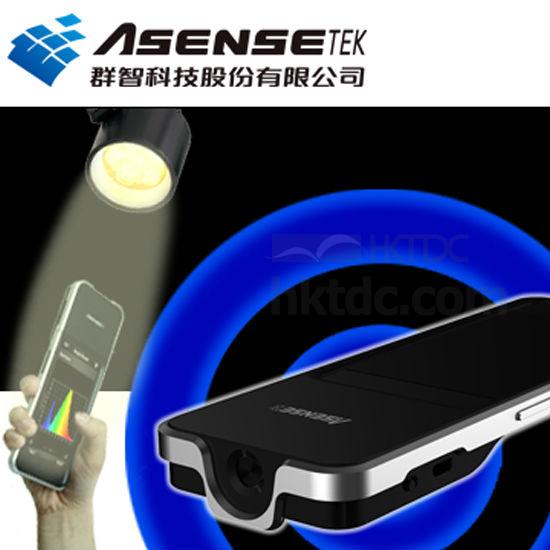

Highlighted here is a spectrometer designed in a compact size for portability. Featuring an illuminance range from 100lux to 50,000lux, this lighting passport can accurately measure your lighting environment in great details. This high-quality optical measurement device is available in multiple languages for your convenience.
- Net Weight: 63.4g.
- Wavelength Range: 380~780 nm.
- Illuminance Range: 100~50,000 lux.
- Optical Resolution: 8 nm.
- Repeatability: x,y < 0.001 (2σ).
Accuracy (with 50cm integral sphere and standard light source):
- Wavelength: ±0.5 nm.
- x,y: ±0.002.
- Illuminance: ±3%.
- CCT: ±2%.
- Integration Time: 6ms~16s.
- Language: Traditional Chinese, Simplified Chinese, English, Japanese (French, German, Russian coming soon).
Measurement mode:
- Single.
- Multiple.
- Continuous.
- Subtract Background.
Measurement Mode:
- CCT.
- CRI.
- Illuminance.
- CIE 1931.
- CIE 1976.
- Spectrum.
- λp.
- λD.
- R1_R15.
- CQS.
- Foot Candle.
- C78.377-2008.
- IEC-SDCM.
- Purity.
