Lithium Coin Cell Retainer

产品型号:

BU1632-JJ-1-G

品牌名称:

Memory Protection Devices

颜色:

White

是否有包装:

无

是否可定制:

是

描述

联络供应商

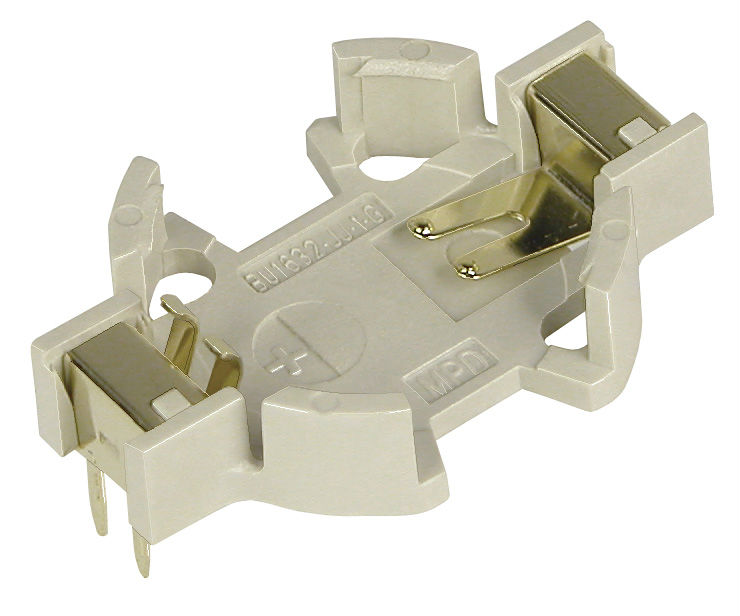

MPDs new CR1632 lithium battery holder P/N BU1632-JJ-1-G Part number BU1632-JJ-1-G holds a single CR1632 Lithium battery.
Built with reliability as the first ideal, its designed to meet the stresses of hand held portable applications.
A heavy duty plastic body and robust battery contacts meet those requirements for typical medical or consumer type products.
Contacts were specifically designed for the rigors of portable applications and have gold-flash over nickel plating onto a phosphor bronze base metal.
The contacts feature low electrical resistance and offer intermittent free connections.
Self-extinguishing and flame-retardant properties conform with the UL 94 standard.
Reinforced with glass fibers, LCPs are particularly outstanding in terms of their elastic modulus and strength.
LCP replicates metal by offering a tensile strength and modulus close to aluminum.
Lower profile than other competing products at 5.2 mm height above the PCB Excellent chemical & humidity resistance, can withstand multiple applications of common sterilization methods like autoclave, chemical, ETO, radiation, hot steam and hot air.
Resists shock, vibration, and is one-meter drop test certified.
Light weight, 0.93g Superior dielectric strength @ 1,100 volts/mil.
260ºC reflow or wave solder compatible.
Bifurcated contacts that resist corrosion LCP is halogen, PFOS, and PFOA free, as well as SVHC, REACH, RoHS 2, and WEEE compliant.
CR1632 cells typically offer approximately 130mAh of power in a compact package, making them perfect for circuits with low power requirements.
CR1632 and DL1632 cells are used for primary power or backup power.
Delivery is normally from distributor stock, or after a short waiting period.
