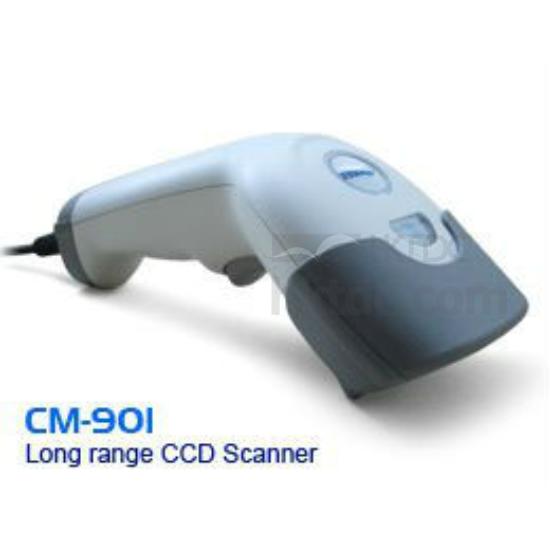

Long Range CCD Scanner

产品型号:

CM-901

品牌名称:

Canmax

颜色:

White, Black

港口:

Taiwan

付款方式:

T/T, L/C

最低订购数量:

1 piece(s)

描述

联络供应商

Interface RS232, USB HID, USB COM.
Bitmap CPU: 32 bit.
Bitmap reading performance.
Readable barcode format: EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC add-on, code-39, code-32, UCC/EAN/code-128, industrial-25, interleaved-25, martix-25, codabar/Nw7, MSI/plessey RSS (GS1 databar).
Resolution: 4mil.
PCS value: up to 0.3.
Depth of field: 50-250mm.
Bitmap light source: 630nm red LED lamp.
Read sensor linear: CCD image sensor.
Scanning rate: 100 scans/sec x 2 cycles.
Bitmap decoding rate: real-time 200 scans/sec.
Scanning performance: 200 scans/sec.
Programming configuration.
Programming manual or download via USB COM I/F & ISP flash ROM BIOS software update.
Bitmap weight: 95g (without cable).
Working temperature: 0°C-50°C.
Environment humidity: 10% 90% RH.
Electrical unit: RFI/EMI.
FCC class: A/CE (pending).
Bitmap voltage: DC 5V±5%.
Bitmap power consumption: 65-75mA.
Stand by 5uA (0.005mA) via keyboard mode.
Bitmap drop durability: 1.5m drop onto concrete surface.
