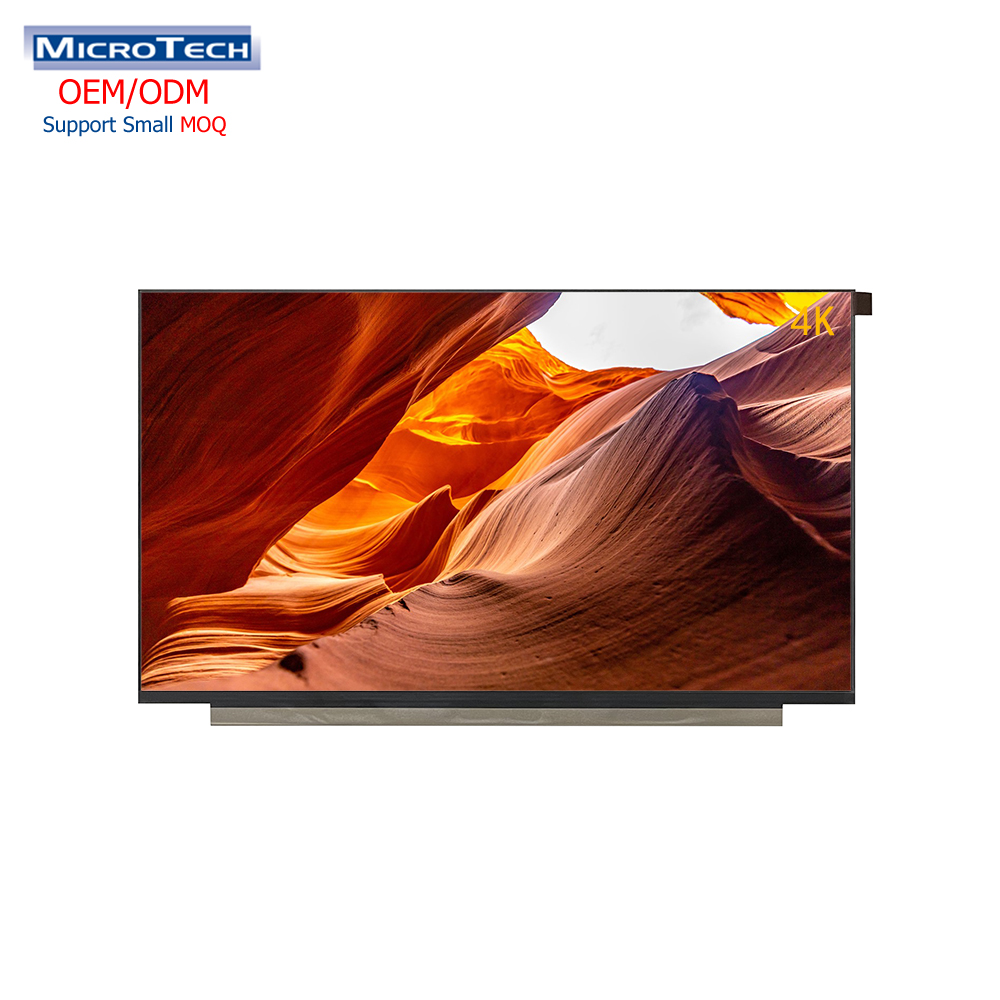

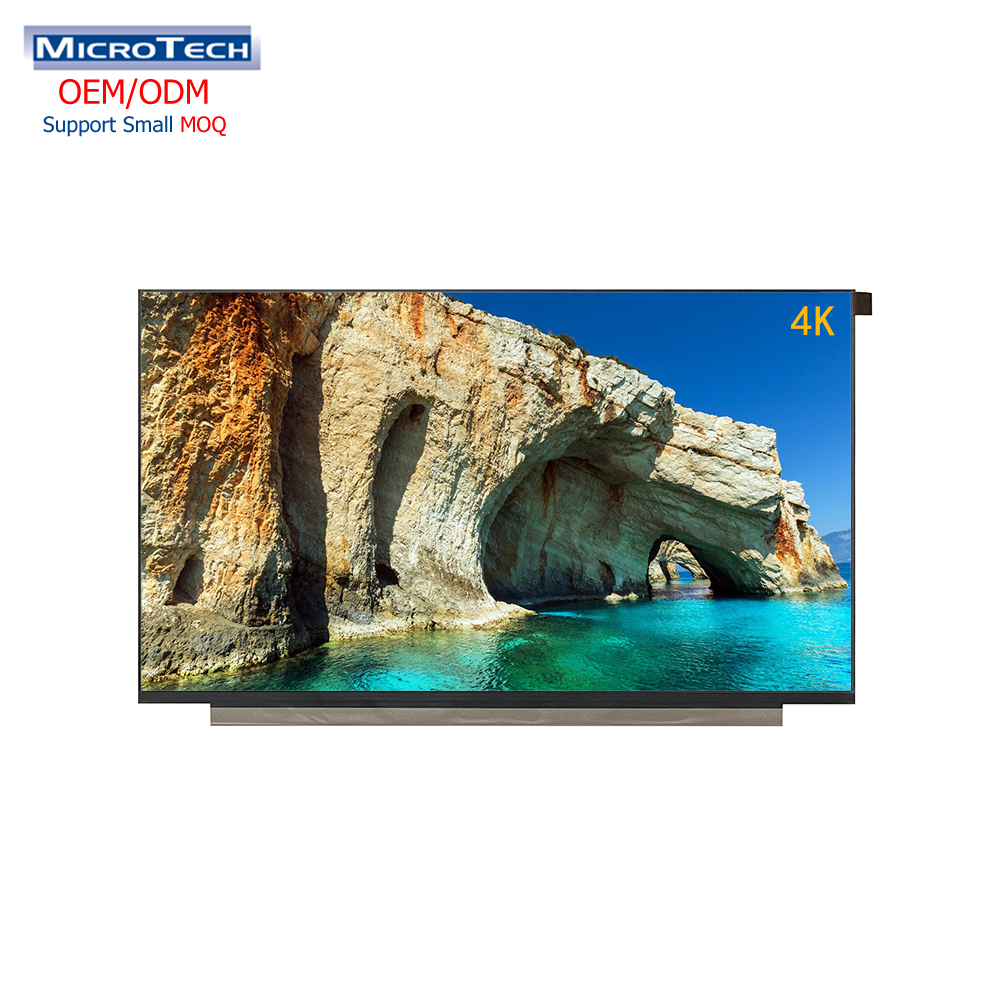

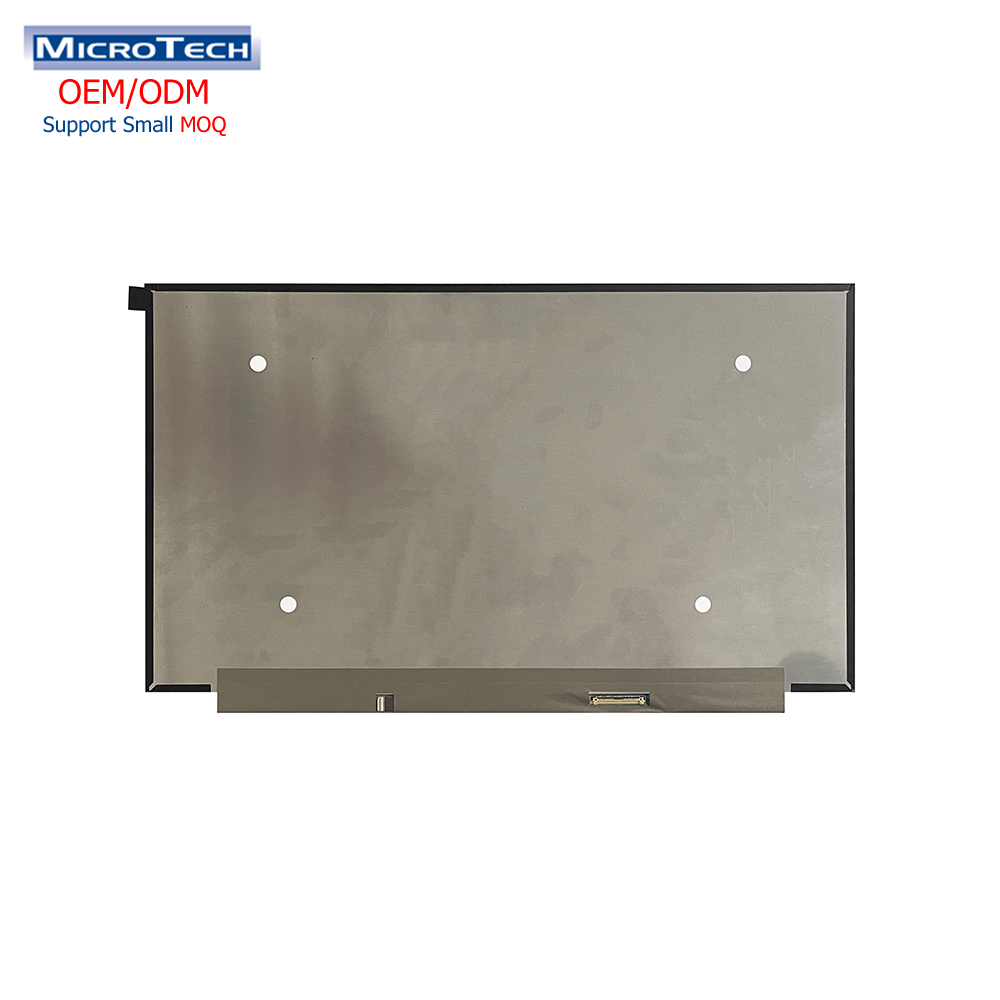

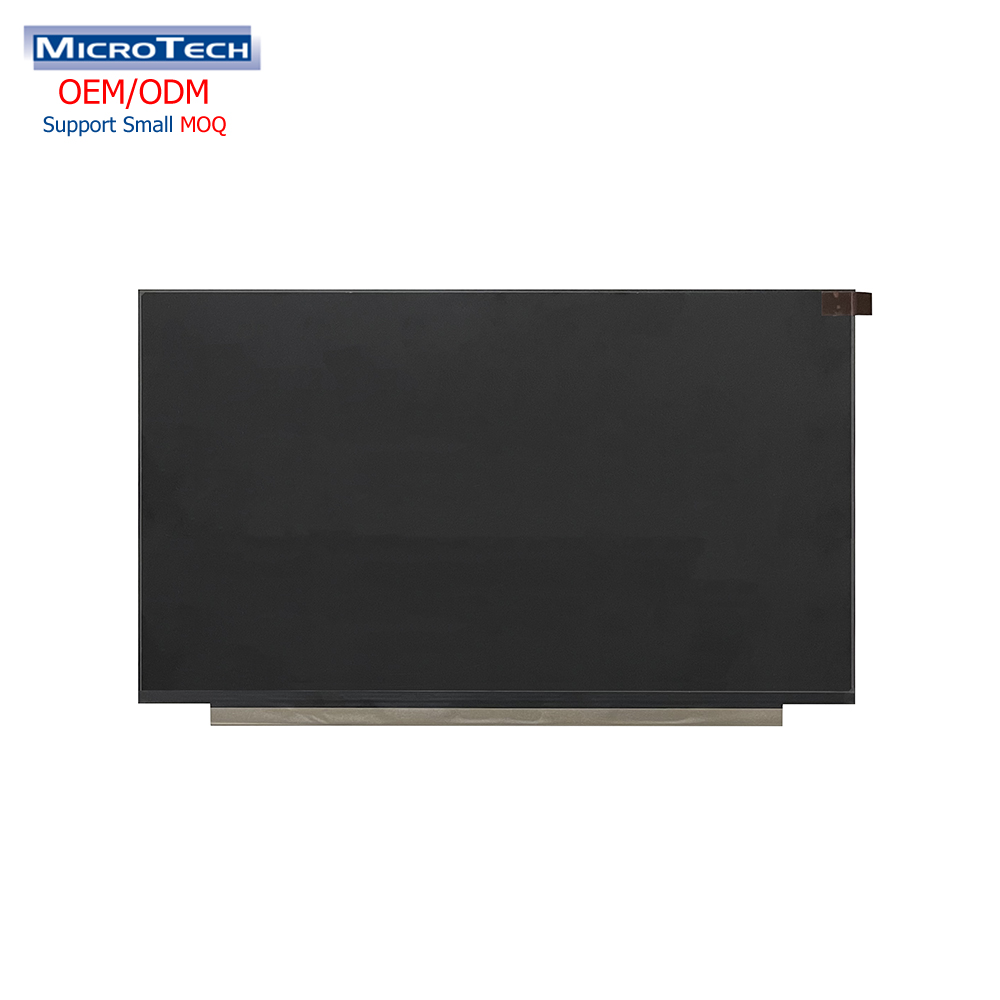

Low Voltage Low Power 15.6 Inch 3840*2160 4 Lane EDP 1.3 Interface HDR400 TFT 4K LCD Module Display for Notebook PC

美元 $110.00 - 美元 $140.00

生产所需时间:

25 日

运送方式:

Support Express·Sea freight·Land freight·Air freight

品牌:

Microtech

型号编号:

MTF156QD26A-V1

是否可订造:

可以

尺寸:

15.6inch

描述

联络供应商

MTF156QD26A-V1 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with UHD resolutions (3840 horizontal by 2160 verticalpixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 8bit+2bit FRC colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable For Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are eDP interface compatible.

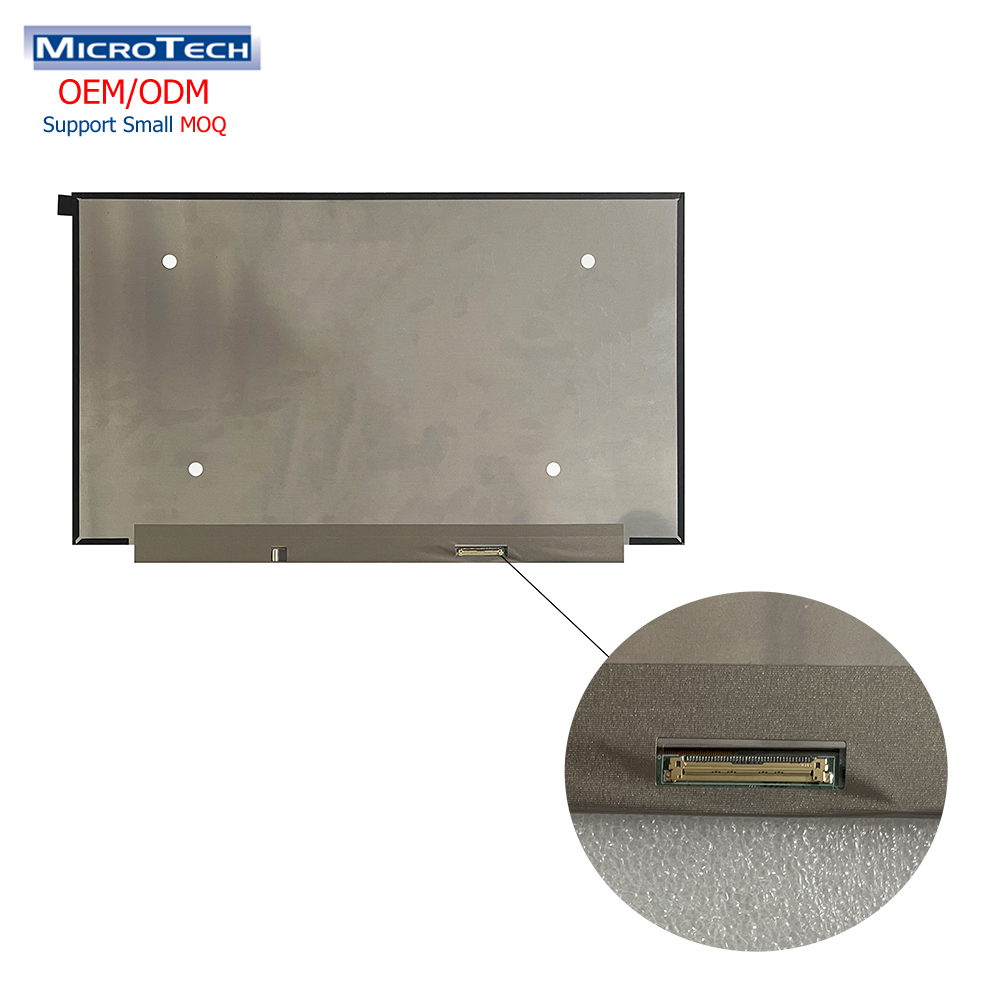

 4 lane eDP 1.3 Interface with 5.4Gbps Link Rates

 Thin and light weight

 8bit+2bit FRC color depth

 Single LED Lighting Bar. (Down side/Horizontal Direction)

 Data enable signal mode

 Side Mounting Frame

 Green Product (RoHS & Halogen free product)

 On board LED Driving circuit

 Low driving voltage and low power consumption

 On board EDID chip

 HDR400

Parameter	Specification	Unit	Remarks
Active area	344.2176(H) *193.6224(V)	mm
Number of pixels	3840(H) x2160(V)	pixels
Pixel pitch	29.88 x89.64um	um
Pixel arrangement	RGB Vertical stripe
Display colors	1074M(8bit+2bit FRC)
Color gamut	AdobeWO%
Display mode	Normally black
Dimensional outline	350.6576 (H)205.3724 (V)2.6(Max)	mm	No PCB side
Weight	280(max)	g
Surface treatment	AG
Surface hardness	3H
Back-light	Bottom edge side, 1-LED lighting bar type		Note 1
Power consumption	Pd ：1・7	W	Typ.@ Mosaic pattem@60Hz
	PBL :7.9	W	Max
	Plolal : 9.6	W	Max
