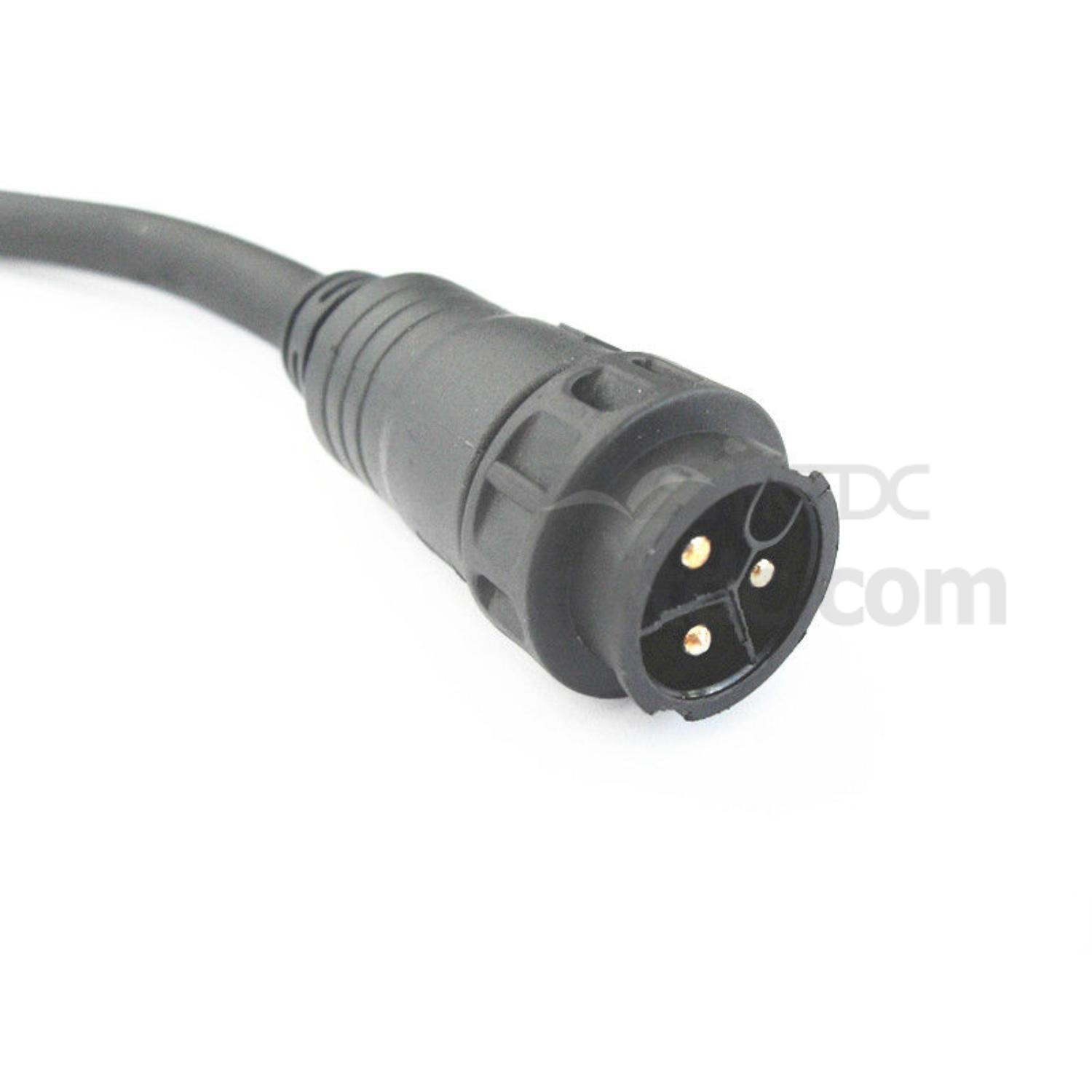

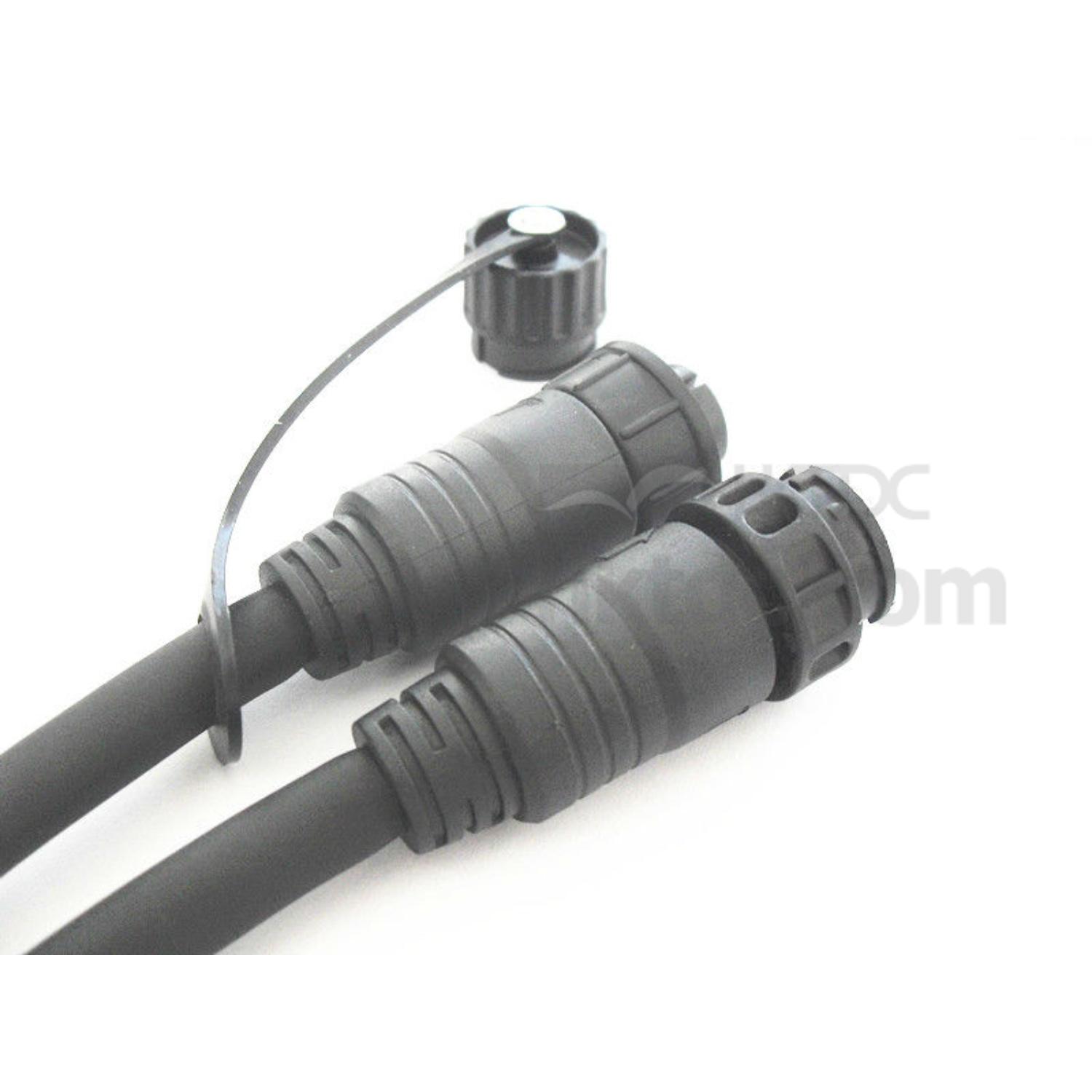

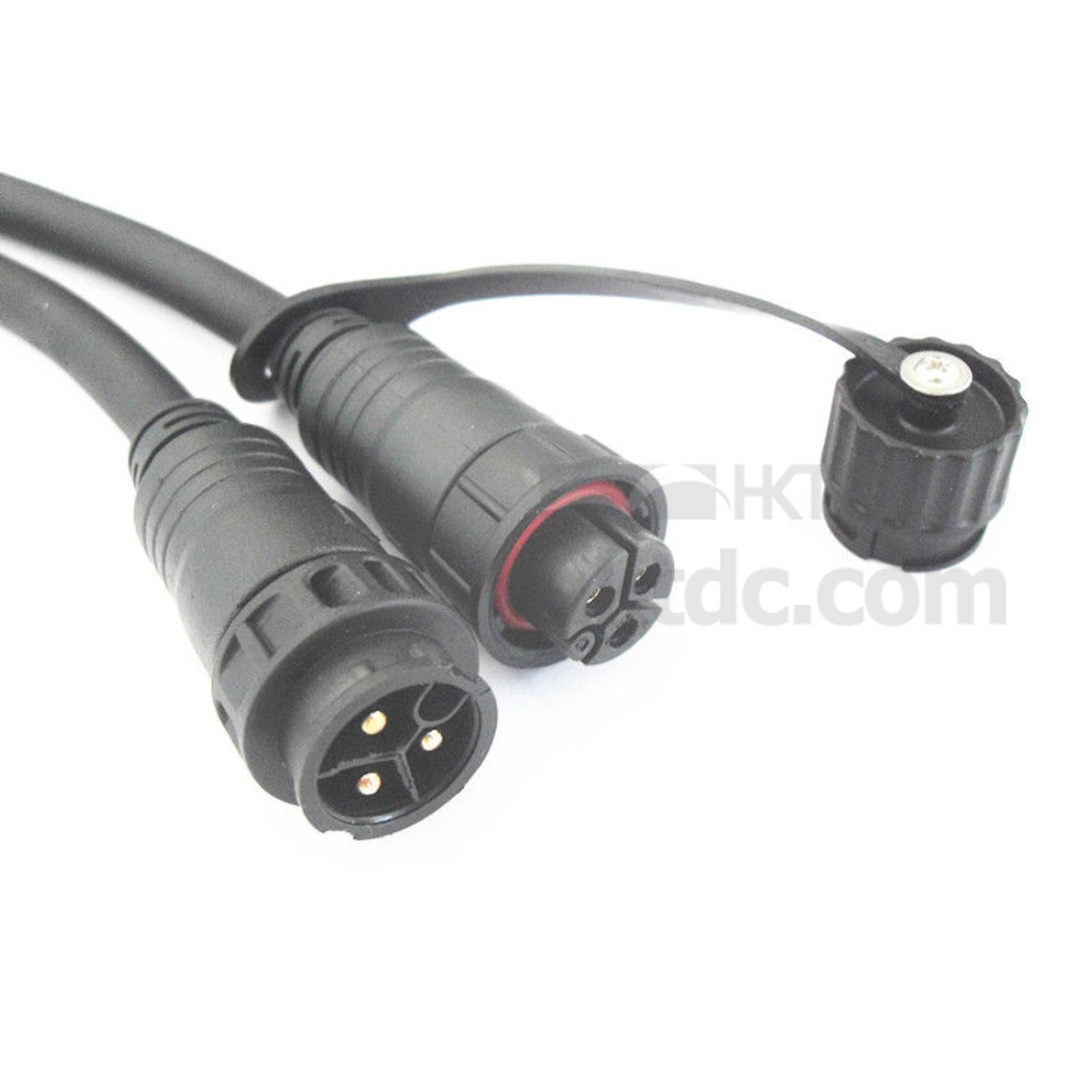

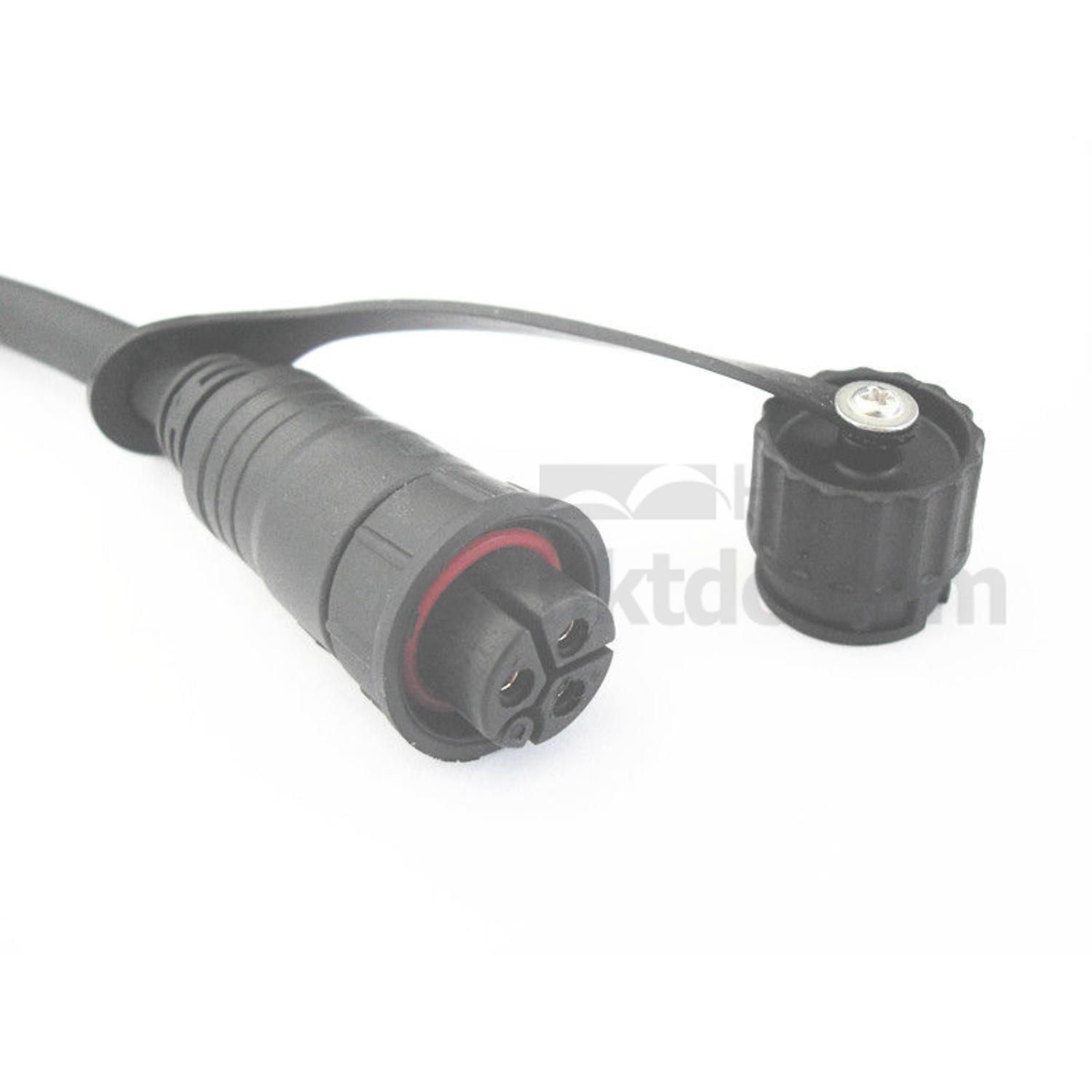

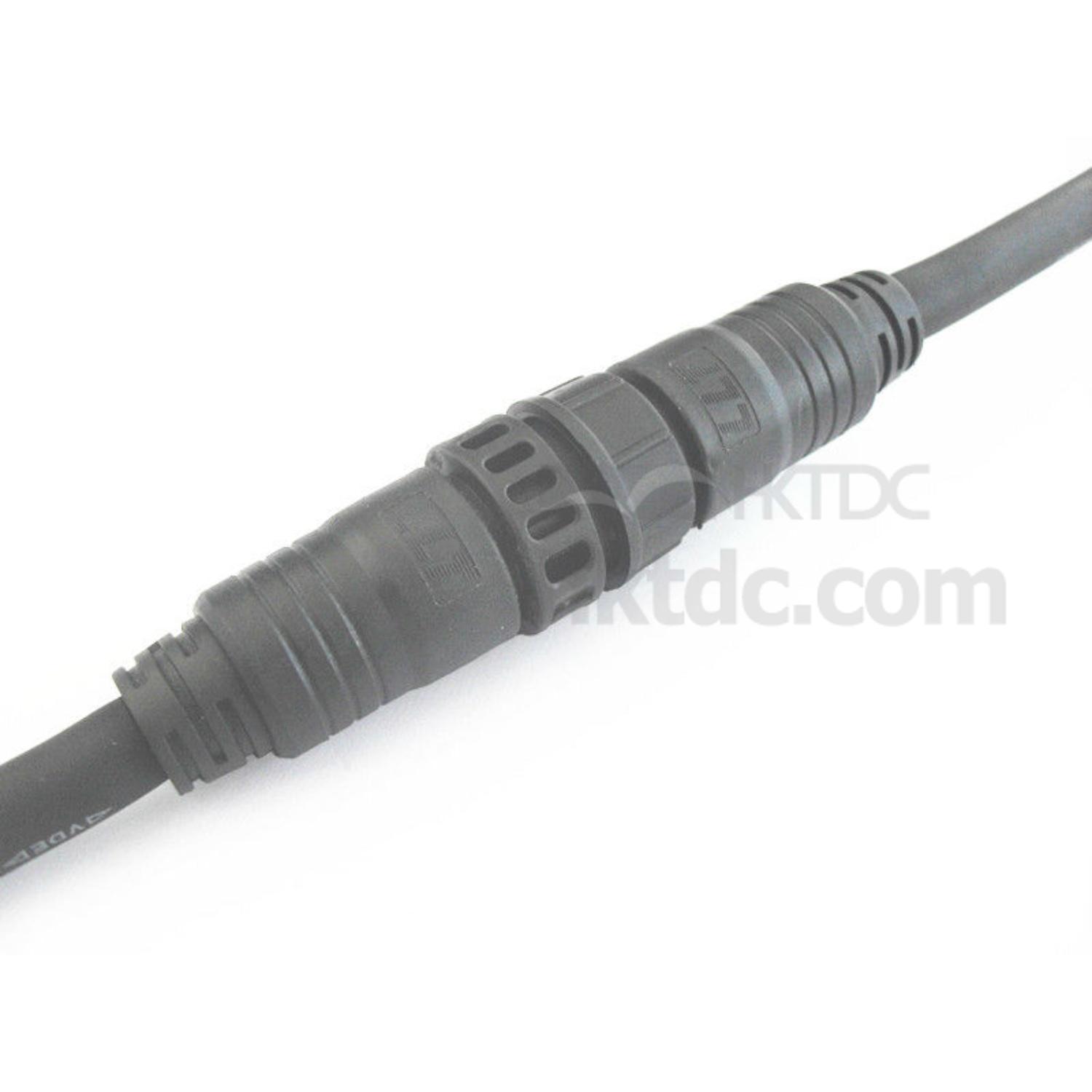

M19 Molded with Cable Waterproof Connector Parameters
1 Model No. LLT-M19
2 Material Connector Body: Nylon(PA66)+GF
3 Contact: Brass with Gold Plated
4 Sealing:  Silica Gel
5 Current Rating: 20A
6 Voltage Rating: 250V
7 Contact Resistance <10mΩ
8 Insulation Resistance 100MΩ at DC 500V
9 Breakdown Voltage 1.5KV/1minute
10 Temperature Rating -45℃～+105℃
11 Durability(Plug/Unplug) 2000 times
12 Waterproof Rating IP65/IP67/Ip68
13 Cable Max. Diameter 11mm
14 Pins Range 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14
