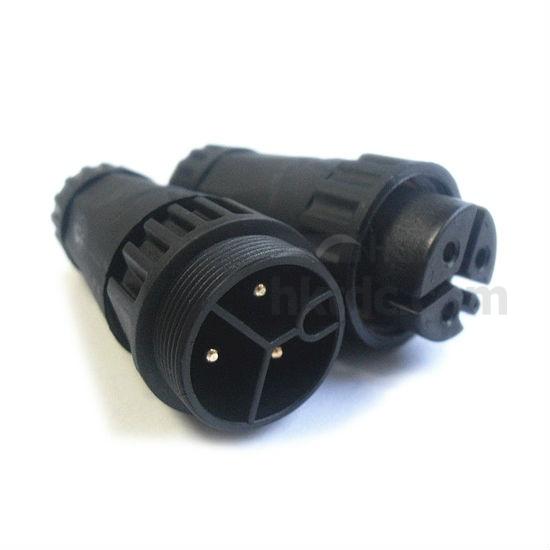

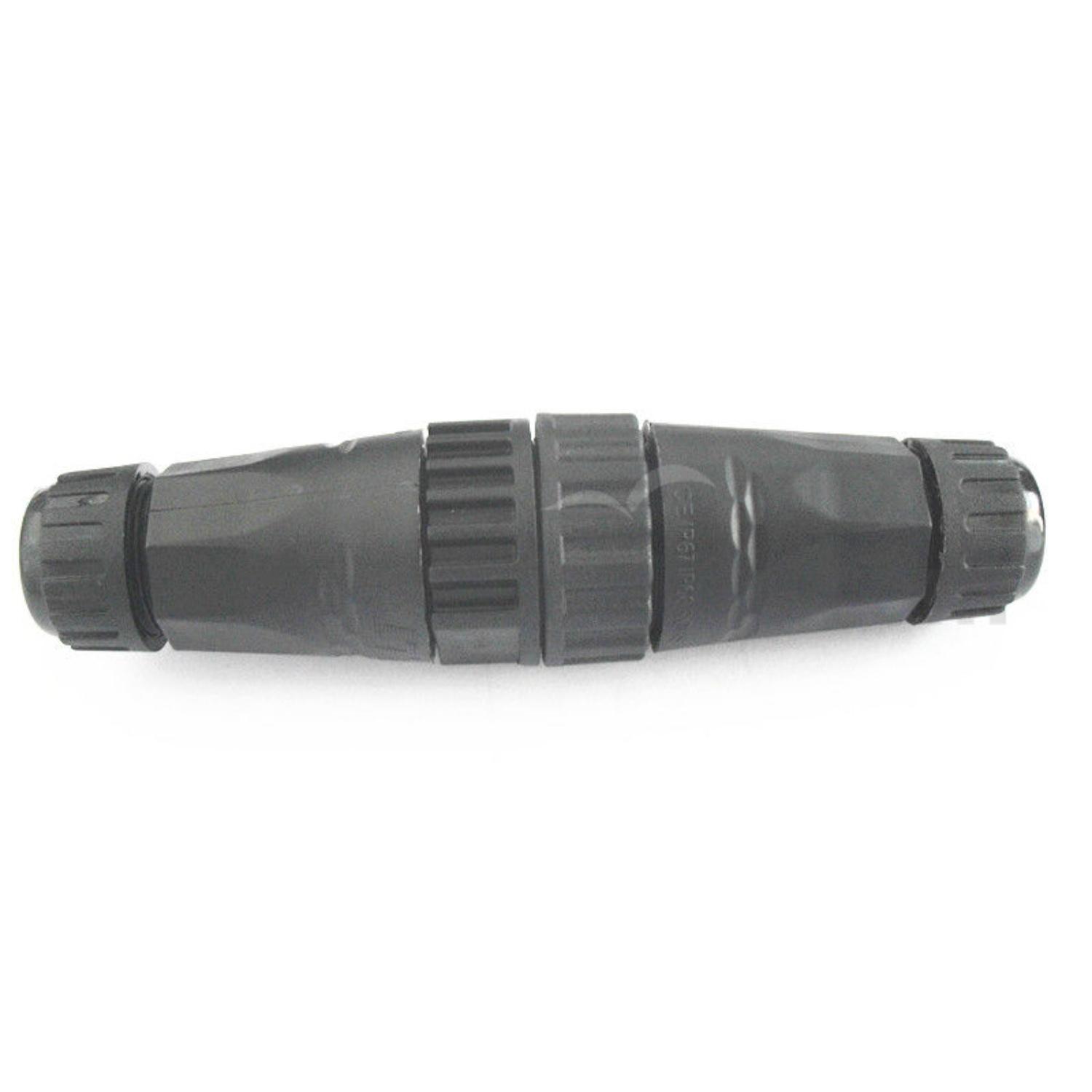

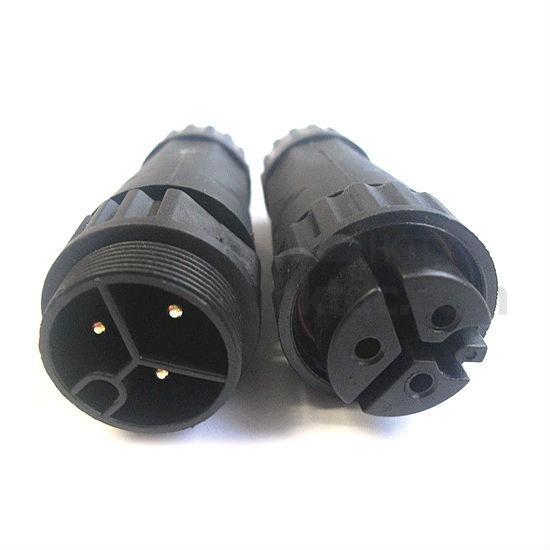

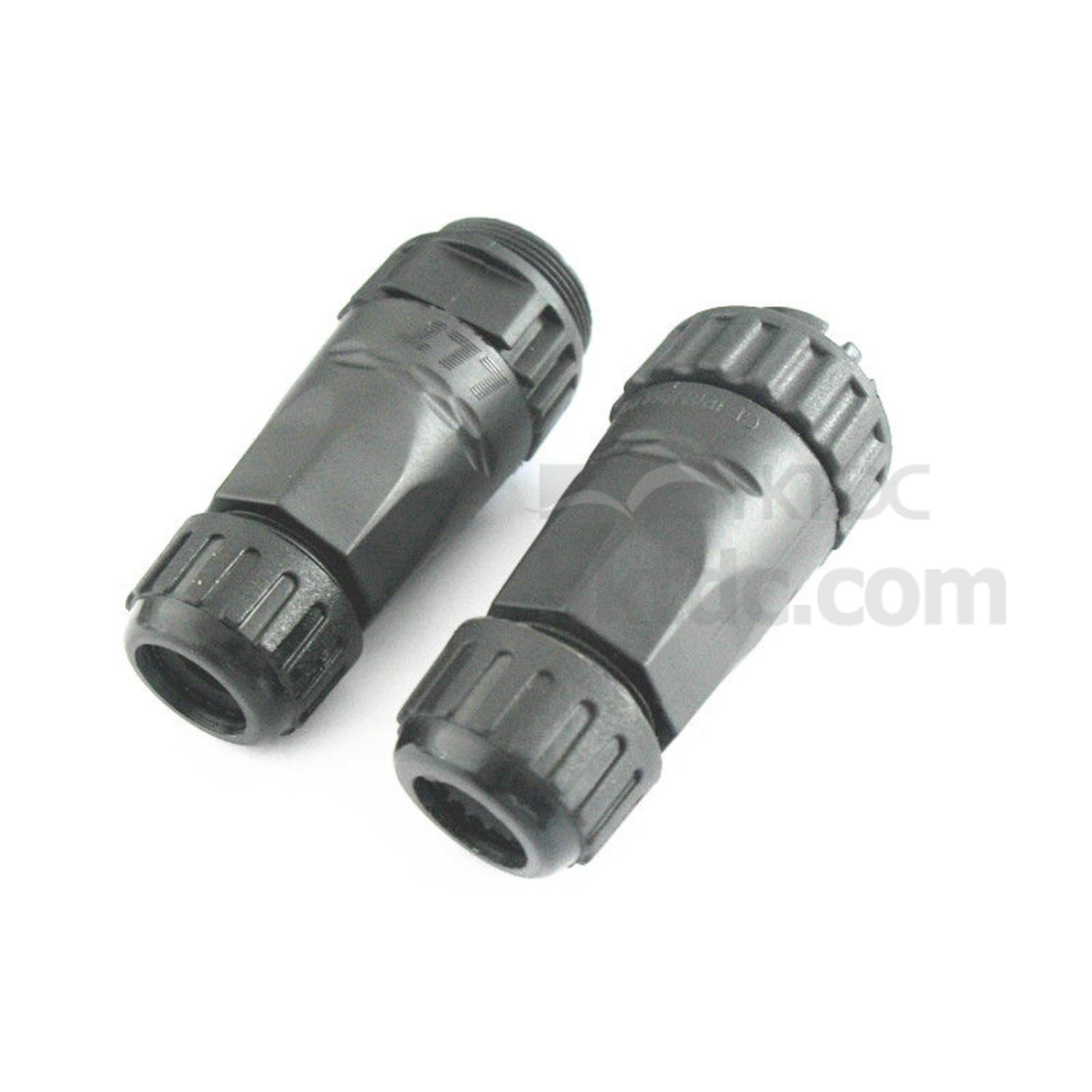

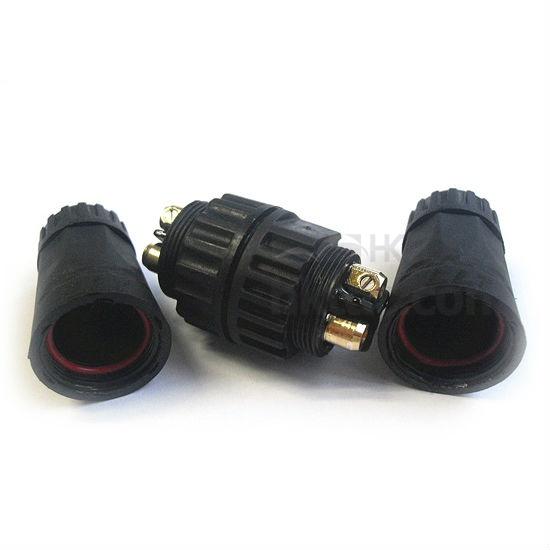

M22 Waterproof Connector Parameters
1 Model No.: LLT-M22
2 Material Connector Body: Nylon(PA66)+GF
3 Contact: Brass with Gold Plated
4 Sealing: Silica Gel
5 Current Rating 25A
6 Voltage Rating 250V
7 Contact Resistance <10mΩ
8 Insulation Resistance 100MΩ at DC 500V
9 Breakdown Voltage 1.5KV/1minute
10 Temperature Rating -45℃~+105℃
11 Durability(Plug/Unplug) 3000times
12 Waterproof Rating IP68
13 Cable Max. Diameter 10.0mm
14 Pins Range 2, 3, 4
15 Certificate CCC UL,CE,RoHS, SAA
