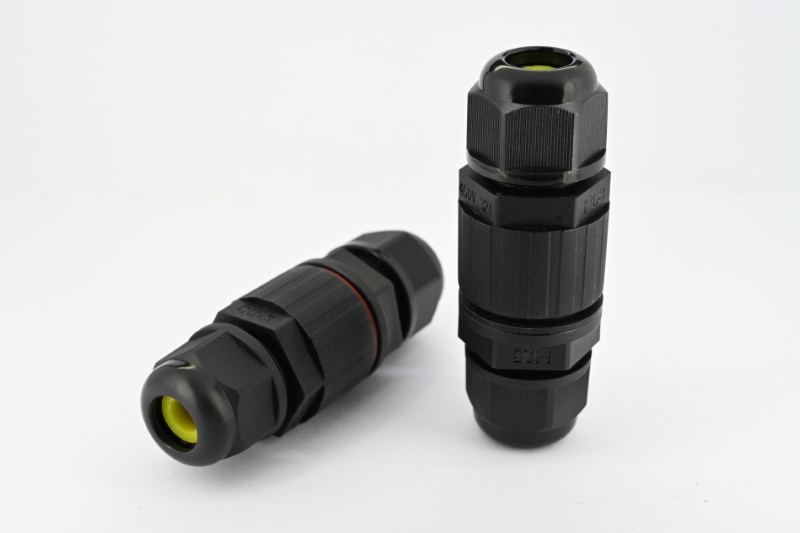

M25 IP68 waterproof cable connector
美元 $1.00 - 美元 $2.00
生产所需时间:
30 日
型号编号:
M25
材料:
Nylon+Brass
IP Code:
IP68
Certification:
KEMA, ETL, ENEC, CE, CB, SAA, ROHS
描述
联络供应商
描述
Cable junction box IP68
M25, plastic, with screw terminals, for fixed installation, with 2 sealing rings, suitable for cable Ø 4.0 - Ø 8.0mm or Ø 7.0 - Ø 12mm, screw cap with lock (can be released again), voltage max. 450V, max. 16A, Ø 27mm, IP68
Ø 4-12mm 4x2,5mm² 85mm
| Model | M684-B |
| Housing | Nylon +PC |
| Conductor Material | Brass |
| Rated power | 24A 450VAC |
| IP code | IP68 |
| Core | 2Pin/3Pin/4Pin |
| Working Temperature | T105 |
| Rated connecting capacity | 0.5 ~ 2.5mm² |
| Available cable diameter（Rubber） | 4-8mm/ 6-11mm（Rubber cable） |
| Refer to stripping length | External stripping 22mm Internal stripping 6mm |
| Waterproof Testing | 20M 150hours |
| Product Size | 91.65mm*25.02mm |
| Certification | KEMA ,ETL,ENEC,CE,CB,SAA,ROHS |
