MARK 600M (Handheld Mining Analyzer)

生产所需时间:

2 日

运送方式:

DHL

品牌:

NAPCO

型号编号:

MARK 600M

尺寸:

L x W x H: 220mm x 91mm x 276mm

重量:

Approx. 1.5kg (3.3 lbs) including battery

描述

联络供应商

Products Description

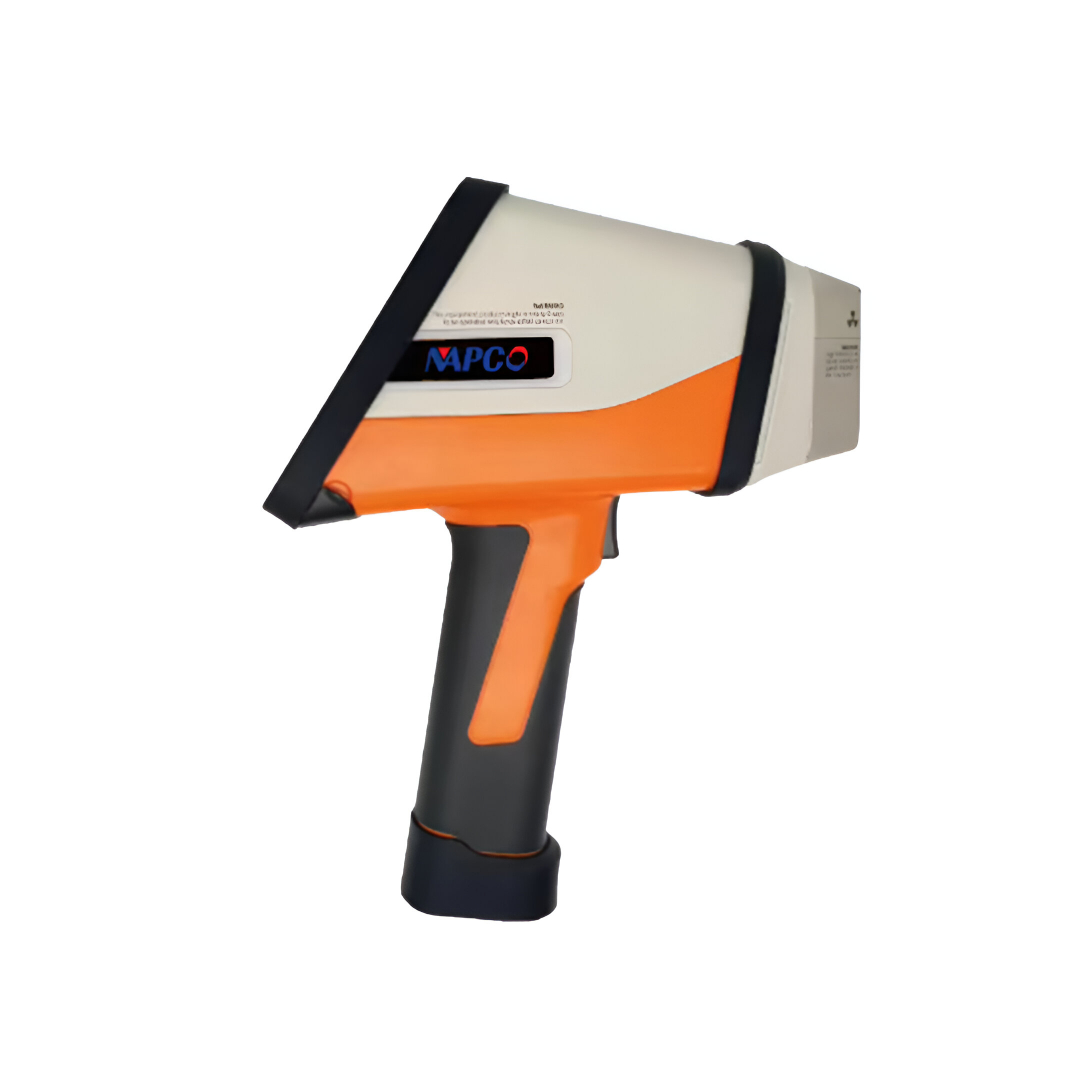

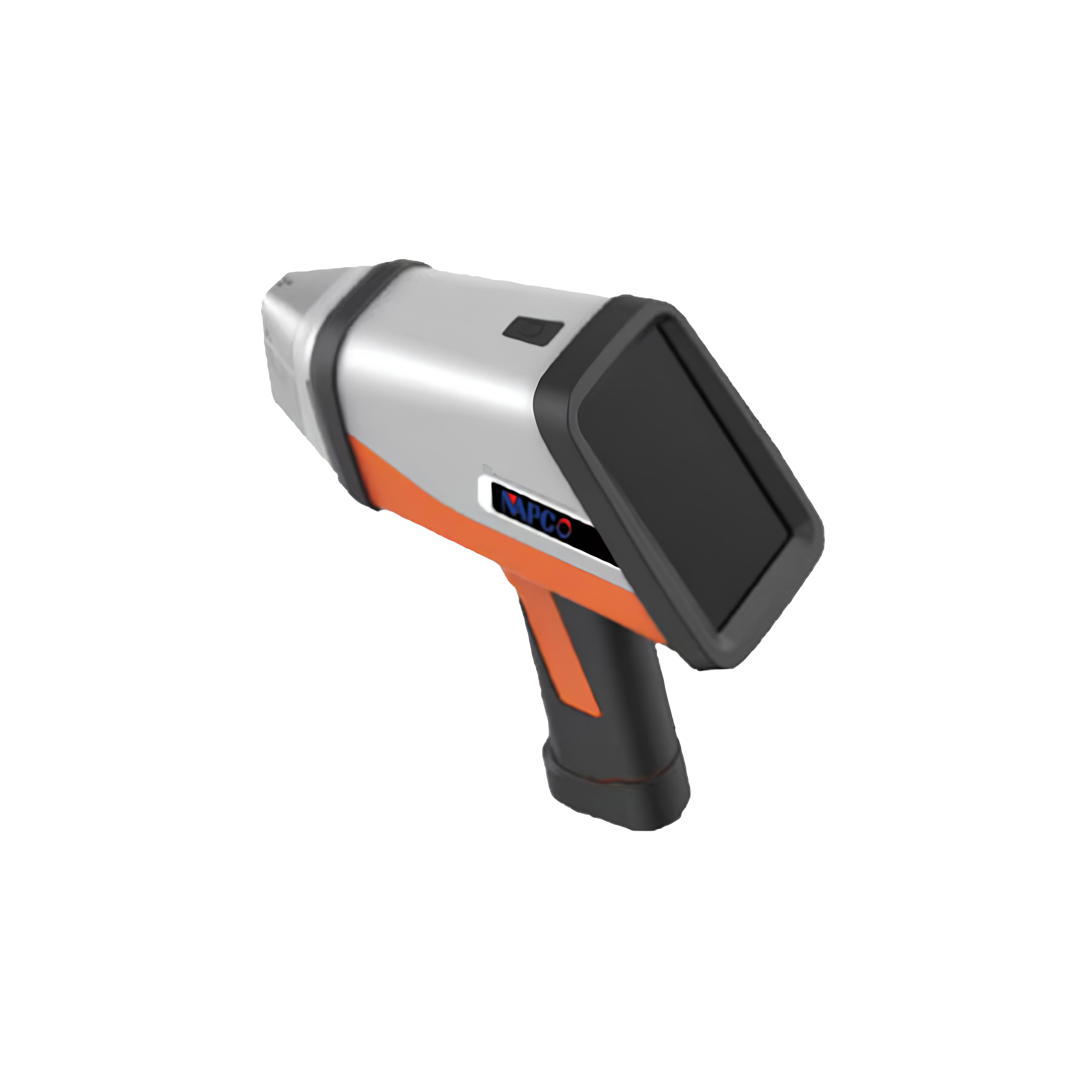

Handheld Mining Analyzer MARK 600M

NAPCO MARK 600M is a quick, accurate, and easy-to-use handheld XRF mining analyzer designed for different analytical applications in the mining industry. The MARK 600M provides on-site analysis of ore samples with minimal sample preparation, reducing the time for lab assay from days to minutes. With the fundamental parameters method, the MARK 600M is capable of analyzing an ore sample without the need for any calibration standards.
MARK 600M is equipped with the capability of precise analysis of light elements, which is important for understanding sample mineralogy and critical for analyzing certain types of minerals, such as bauxite and limestone. During exploration, the MARK 600M is an excellent tool for fast screening of vast areas due to its light weight and mobility.

Model	600M
Excitation	Ceramic packaged microfocus X-ray tube, Ag Anode 50kV
Detector	Optimized SDD detector (with Graphene window)
Resolution	129 eV FWHM
Filter	Multi-position automatic filter changer
Window	Kapton with an anti-puncture window design, optional
Battery	7.2V Li-ion battery, 6800 mAh
Display	Capacitive touch screen (5-inch 720P)
CPU	i.MX 8M Mini quad-core 1.8 GHz
Signal Processor	4096-pixel multi-channel detector / 80 MHz ADC digital signal processor
Data Storage	Over 100,000 data storage
Data Transfer	WiFi, USB
Structure Design	Unique structure design effectively increases the heat dissipation of the X-ray tube
Radiation Safety	Safety guard induction device: when no sample is in the test area, the source will shut off, providing maximum safety protection. Password-protected user security
Camera (optional)	Integrated CCD camera with autofocus lens for positioning and recording measurement points
Elements	o, Nb, Zr, Bi, Pb, Se, W, Zn, Cu, Ni, Co, Fe, Mn, Cr, V, Ti, As, Rb, Sr, K, Ca, Ba, Cd, Hg, Br, Sb, Sn, Cs, Te, Ag, Y, U, Th, Sc, Pd, Re, Ta, Hf, Mg, Al, Si, P, S
Environment	Temperature: -10°C~50°C, Humidity: 0%~80%
Weight	Approx. 1.5kg (3.3 lbs) including battery
Dimensions	L x W x H: 220mm x 91mm x 276mm
Optional	You can view, share, and print data in real time with the innovatively designed mobile application. Functions such as sample The application supports photo, GPS positioning, barcode scanning, and data archiving. The optional data cloud service function supports uploading test results to a secure and encrypted cloud server, performing efficient statistics, queries, and analysis of large-scale data.

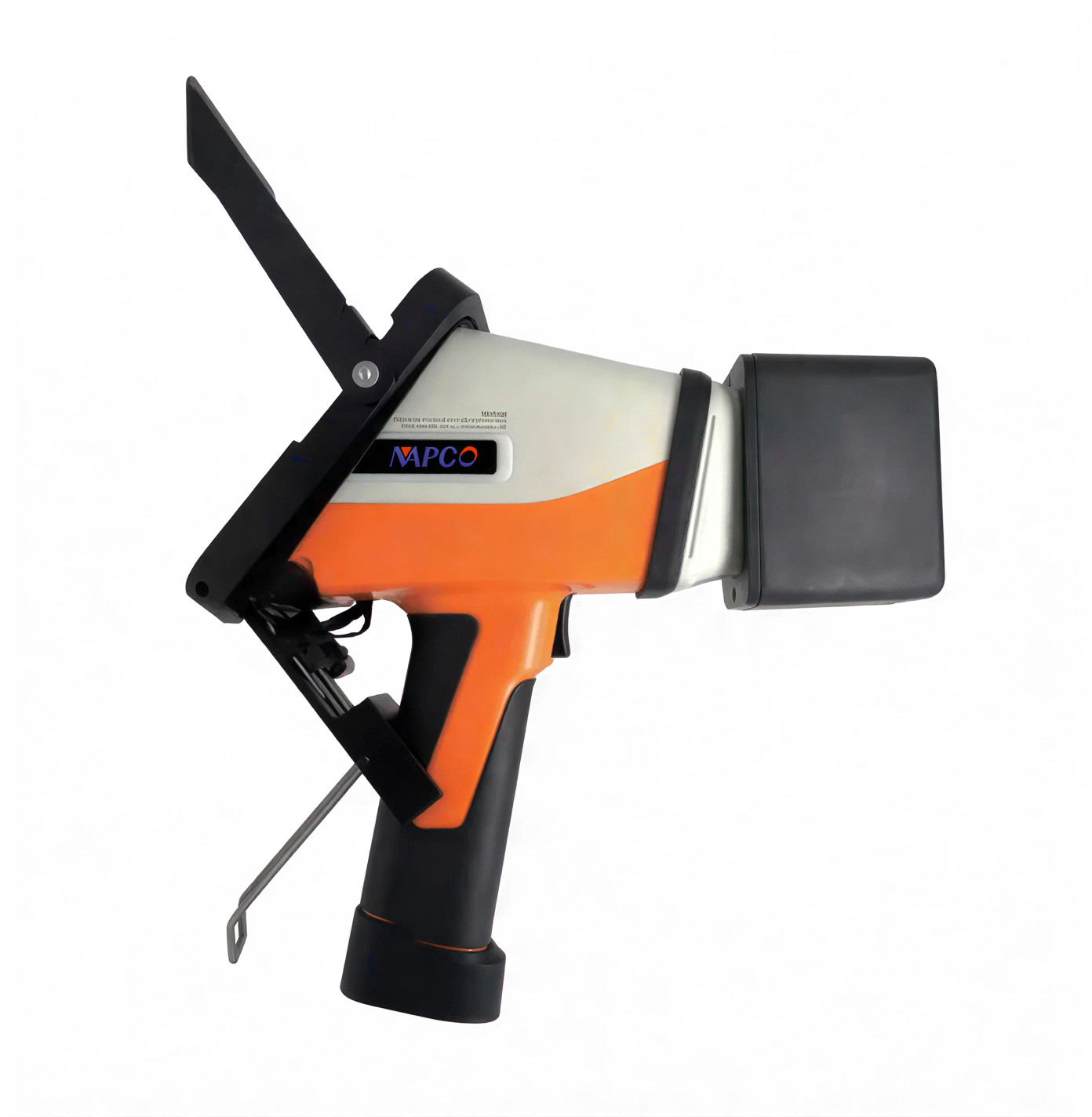

Special Accessories	In addition to conventional accessories, optional: welding mask, hot surface adapter. It can detect high-temperature surfaces and vibrating surfaces without contact.
