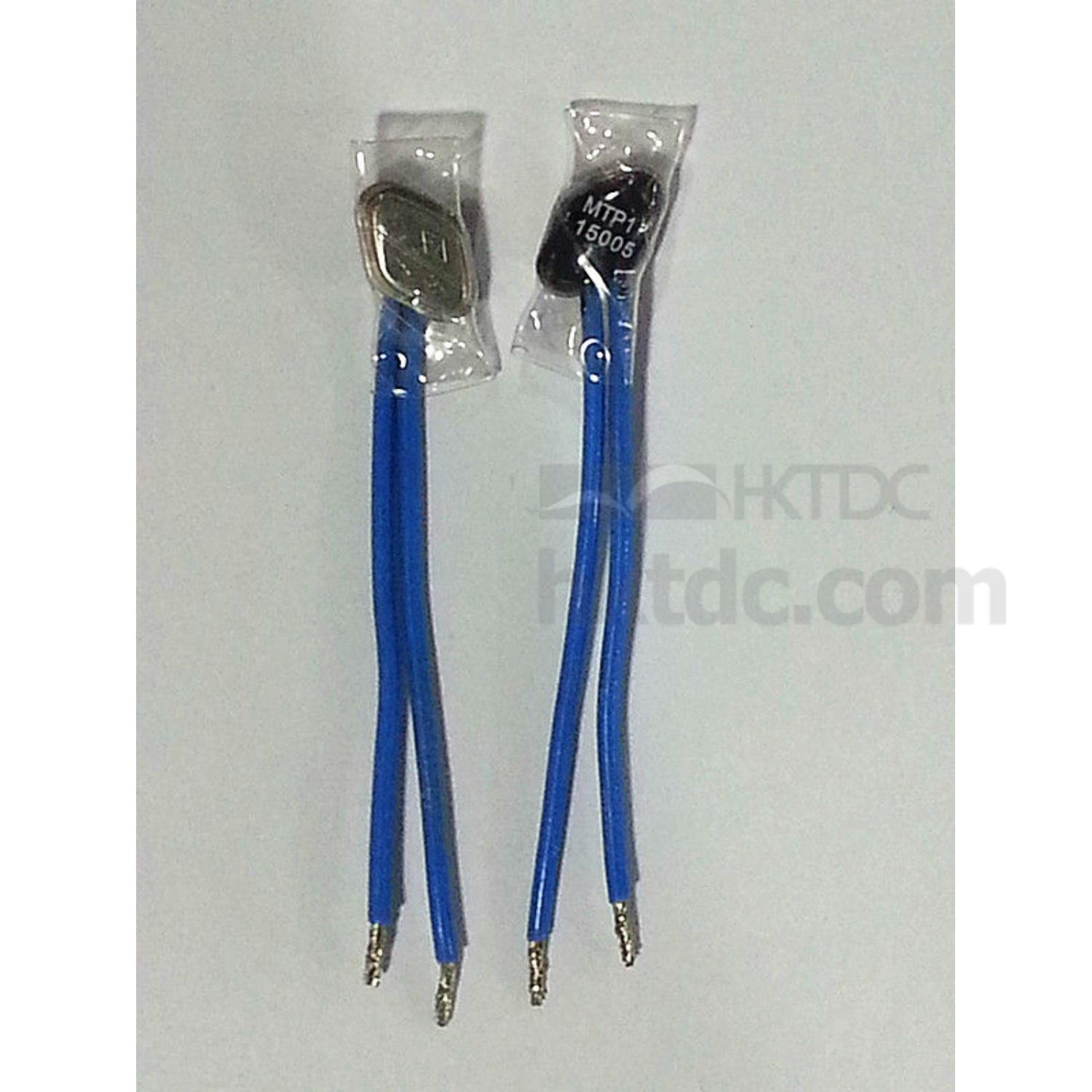

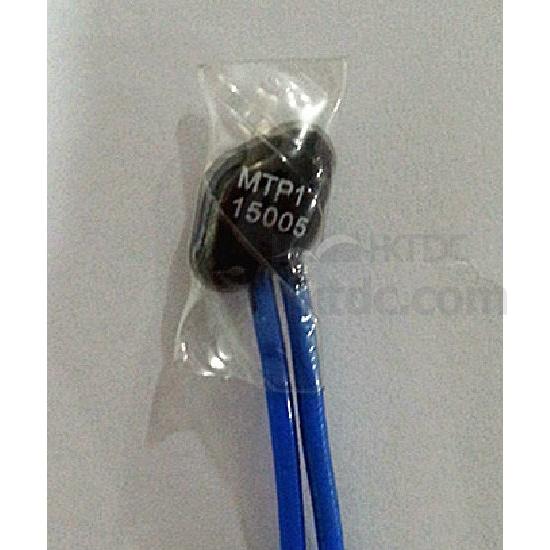

MTP1 Delay-Reset Thermal ProtectorKEY BENEFITS:
*Diamond shape, small size
*Good pressure resistance
*Rapid response to high-sensitive temperature and current
*Rapid response
*Protect on the safe side(cutoff lock self, reset after break down)

Using scope:
*Applies to the AC motor, coils, electromagnets, Water boilers, DC motor, generator, solar water heater, hot air driers, liquid pumps, transformers and similar household electrical appliances. Key Technical

Parameters:
*Rated voltage: 50/60HZ, 250V, AC
*Nominal current: 2.5 (1.6) A,/10 (6.3) A ，COSФ =1.0 (0.6)
*Rated opening temperature range: +60 ℃ ~+160 ℃, take 5 ℃ as a grade

Authentication Certificate: VDE
We are now applying for the UL Certificate.
